Product Details:
|
| Product Name: | Vertical Bending Neon LED Flex | Item Name: | Silicone Tube IP68 LED Flexible Neon Rope Lights |
|---|---|---|---|
| Input Voltage: | 24VDC | Power: | 10W/M |

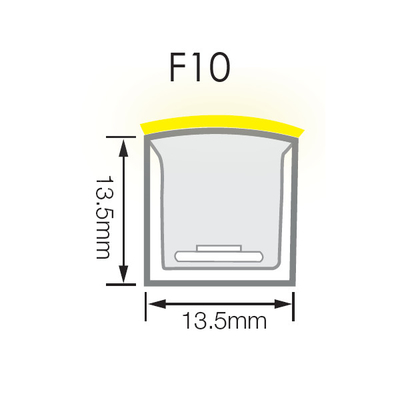

| Dimension: | W13.5*H13.5mm | Control Way: | ON/OFF, Dimming, PWM |
| Color: | Single Color 2200-6500K | Sealing Way: | Mould Injection |
| Max Length: | 20meters Max Continous Run Length | IP Rate: | IP68 |
| Lamp Luminous Flux(lm): | 500lm/M | Cri (ra>): | 80 |
| Light Window: | Opal White Diffuser | Operation Temperature: | -25°C~+50°C |
| Working Lifetime(hours): | 35000 | Warranty: | 3 Years Or 5 Years |
| Application: | LANDSCAPE,HOTEL,Building,Outdoor Decoration Led Neon Flex,Indoor/Outdoor | ||
| High Light: | 10W/M Neon Tube Lights,PVC Silicone Neon Tube Lights,24VDC Flexible Led Light Strips |
||
Features and Benefits:
▪ Top view and vertical bending design and min dia. 80mm bending.
▪ High brightness output up to 500LM/meter.
▪ Seamless connection support.
▪ Single color: 2200-6500K, red, green, blue.
▪ Dimming with PWM,DALI, 0-10V or DMX dimming driver.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Optional IP67 DIY Snap or screws connector and IP68 Injection moulded connector.
▪ Single end or dual ends power feed cable for neon LED flex.
▪ Cable entry ways for options:
(1) Direct end entry cable; (2) Side entry cable; (3) Bottom entry cable.
▪ Provides various smart accessories for installation to meet various applications.
▪ Max continuous length per run:
10meters (one end power feed) or 20 meters (Dual ends power feed)
▪ Beam angle:120°.
▪ UV,flame,saltwater(Note: NOT seawater),solvent and dirt resistant.
▪ Rated IK08 and IP68, suitable for both indoor or outdoor applications.
▪ Even can be underwater use and submersible in depth<2 meters.
▪ Operation temperature: -25°C~+50°C.
▪ Standard 3 years warranty (5 years warranty is available).
▪ CE, ROHS certificate.
Important Notes for neon LED flex when underwater use:
1. Please select injection moulded connector and the depth under water is <2 Meters.
2. Used in swimming pool or fresh water only, CAN NOT be used in sea water.
