PVC Tunable Neon LED Strip Lights RGB RGBW 48V 24V 12V PWM 17W/M

PVC Tunable Neon LED Strip Lights RGB RGBW 48V 24V 12V PWM 17W/M

MOQ: No MOQ
Standard Packaging: 20meters/reel
Delivery Period: 3~20days
Payment Method: T/T, Western Union, L/C
Supply Capacity: 1,000,000Meters/Month
Detail Information
Place of Origin
CHINA
Brand Name
COMI LIGHTING
Certification
CE ROHS
Model Number
F15
Product Name:
Multi-color Tunable White RGB RGBW Neon LED Flex
Input Voltage:
12VDC, 24VDC,36VDC, 48VDC
Power:
10W~17W/M
Dimension:
W11.5*H21mm
Control Way:
ON/OFF, Dimming, PWM
Color:
Tunable White, RGB, RGBW
Sealing Way:
Mould Injection, Or DIY Screws Or Snap Connector
Max Length:
40meters Max Continous Run Length (48VDC Version)
Materials:
PVC Or Silicone For Options
Lamp Luminous Flux(lm):
500lm/M(White Color)
Cri (ra>):
80
Light Window:
Opal White Diffuser
IP Rate:
IP68
Operation Temperature:
-25°C~+50°C
Working Lifetime(hours):
35000
Warranty:
3 Years Or 5 Years
Application:
LANDSCAPE,HOTEL,Building,Outdoor Decoration Led Neon Flex,Indoor/Outdoor
Minimum Order Quantity:
No MOQ
Packaging Details:
20meters/reel
Delivery Time:
3~20days
Payment Terms:
T/T, Western Union, L/C
Supply Ability:
1,000,000Meters/Month
High Light:

PVC Tunable Neon LED Strip Lights

,

12V PWM Neon LED Strip Lights

,

17W/M Led Neon Ribbon Light

Product Description

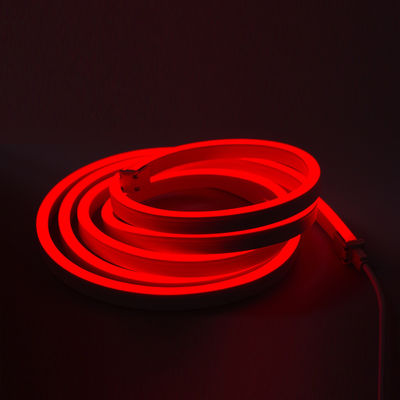

IP68 flexible dot free neon LED flex F15 line with a W11.5×H21mm cross section. Opal polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gases and protection against abrasion. Horizontal bending only, with radius of 8mm excellent solution for indoor / outdoor organic facade accent lighting or decorative applications requiring IP67 even IP68 ingress. Fully dimmable with PWM,0/1-10V,DALI, DMX512.

Features and Benefits:
Multi color for options: Dual color (Tunable white), RGB, RGBW
▪ Flat Shape ivory white diffused PVC or silicone luminous surface.
▪ Seamless connection support.
▪ Continuous and uniform illumination, no LED dot or dark spot.
▪ Horizontal(side-to-side) bending only with radius of 8mm.
▪ Input Voltage: 24VDC.
▪ Power Consumption:8W/m, 12W/m or 15W/m.
▪ Constant Current IC built in optional.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Optional IP67 DIY Screws type and IP68 mould injection type connectors.
▪ Optional Single end or dual ends power cable for neon LED flex.
Cable output sides available: (1) Direct end, (2) bottom, or (3) side cable output.
▪ Continuous run length Up to 30meters.
▪ Provides various smart accessories for mounting and installation.
▪ Full encapsulated with IP68 Level and rating IK08.
▪ Standard 3 years warranty (5 years is available).


Important Note when neon LED flex underwater used:
1. Please select mould injection connector and the depth of underwater is <1.5Meters.
2. Used in swimming pool or fresh water only, CAN NOT be used in sea water.

featured CCT dual color, RGB, RGBW IP68 or IP68 neon LED strip CE ROHS dimmable

F15 dual color temperature, RGB, RGBW Neon LED Strip Light



Technical Specifications



Model Number
(Color Type)
Working
Mode
Optional
Color/
Color Type
Working
Voltage
Power
(W/meter)
Luminous Flux (LM/meter) LED Type
LED Q'ty
(pcs/meter)
CRI
(Ra)
Beam
Angle
Min
Cutting Unit
Max Length Per run (Meters)
One End
Power Feed
Double Ends
Power Feed
F15-24V-2835-120-TW
(Tunable White color)
CV,
ON/OFF,
Dimming
2200k+5000K,
3000K+5000K,
or Customized
24VDC 15W/M 220LM+240LM 2835 120LEDs/m Ra80 120°
10cm
(3.93in)
(12LEDs)
10Meters
(32.8ft)
20Meters
(65.6ft)
F15-24V-5050-60-RGB
(RGB Color)
PWM
RGB
Full Color
24VDC 12W/M
R:42LM;
G:127LM;
B:28LM
5050
RGB
3-IN-1 LED
60LEDs/m / 120°
10cm
(3.93in)
(6LEDs)
10Meters
(32.8ft)
20Meters
(65.6ft)
F15-24V-5050-72-RGB
(RGB Color)
PWM
RGB
Full Color
24VDC 13W/M
R:45LM;
G:133LM;
B:33LM
5050
RGB
3-IN-1 LED
72LEDs/m / 120°
10cm
(3.93in)
(6LEDs)
8Meters
(26.25ft)
16Meters
(52.3ft)
F15-48V-5050-60-RGB
(RGB Color)
PWM
RGB
Full Color
48VDC 10W/M
R:60LM;
G:135LM;
B:29LM
5050
RGB
3-IN-1 LED
60LEDs/m / 120°
25cm
(9.84in)
(15LEDs)
20Meters
(65.6ft)
40Meters
(131.2ft)
F15-12V-5050-60-RGBW
(RGBW Color)
PWM
RGBW
Full Color
12VDC 17W/M R:35LM; G:110LM: B:29lm; RGBW:310LM; 4000K:160LM
5050 RGBW
4-IN-1 LED
60LEDs/m Ra80 120°
5cm
(1.97in)
(3LEDs)
5Meters
(16.4ft)
10Meters
(32.8ft)
F15-24V-5050-60-RGBW
(RGBW Color)
PWM
RGBW
Full Color
24VDC 17W/M R:35LM; G:110LM: B:29lm; RGBW:310LM; 4000K:160LM
5050 RGBW
4-IN-1 LED
60LEDs/m Ra80 120°
10cm
(3.93in)
(6LEDs)
8Meters
(26.25ft)
16Meters
(52.3ft)
F15-24V-5050-72-RGBW
(RGBW Color)
PWM
RGBW
Full Color
24VDC 17W/M R:30LM; G:115LM: B:21LM; RGBW:285LM; 2700K:139LM
5050 RGBW
4-IN-1 LED
72LEDs/m Ra80 120°
10cm
(3.93in)
(7LEDs)
8Meters
(26.25ft)
16Meters
(52.3ft)
Notes:
1.About light color for neon LED strip:
(1)"XX" in item numbers stands for different single color: (1) Single color: VW(Very Warm White, 2200K), WW(Warm White, 2700K, 3000K), NW(Neutral White,4000K), PW(Pure White, 5000K), DW(Day White, 5700K), CW(Cool White, 6000~6500K); BL(Blue,465-470nm),GN(Green, 520-525nm), AM(Amber,585-595nm), OR(Orange, 600-610nm), LY(Lemon Yellow, 610-620nm), RD(Red, 620-630nm), PK(Pink, 630-645nm);
(2) TW(Tunable white, optional 2200k+5000K, 3000K+5000K,or Customized);
(3) Multi-color:RGB, RGBW(The Kelvin of "W" available at 2700K, 3000K, 4000K, 5000K, or other).
(4) If the Kelvin or wave length for the color you are looking for is NOT within the above range, please inquire us separately.
2. CV(Constant voltage, means the LED strip is with current-limiting resistor on board in every mini cutting unit); CC(Constant current , which the LED strip is with current-limiting constant current driving IC on board for every minimum cutting unit which enables the working current of each LED is the same and the brightness of the entire run length of the LED neon flex is uniform);
3. Specifications are subjected to change without prior to notice.


The above technical parameters are for F15 Neon LED flex in multi-color tunable white, RGB and RGBW only, for more details about single color, DMX and SPI versions F15 Neon LED Strip, please click below links:
(1) Single Color F15 Neon LED Strip.
(2) DMX or SPI Dynamic Pixel or Addressable or Programmable F15 LED Neon Flex.









IP68 Injection molded Connector for F15 Neon LED Strip Lights for Both Indoor and Outdoor Applications:

IP68 Waterproof mould injection connector for F15 neon LED flex

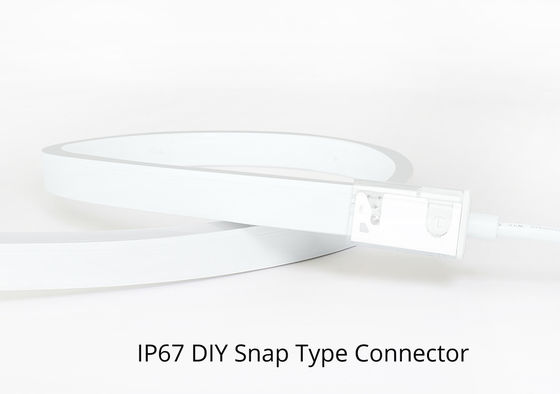

IP67 DIY Snap Connector for F15 Flexible LED Neon Strip:

IP67 DIY Snap connector for F15 neon LED flex





IP67 DIY Screws Connector for F15 LED Neon Flex:

IP67 DIY screws connector for F15 neon LED flex







Mounting Profile or Clip for F15 Neon Flexible LED Strip:

Mounting accessories for F15 neon LED flex
