| MOQ: | 10pcs |
| Standard Packaging: | 2pcs/carton |
| Delivery Period: | 7~20Days depends on quantity |
| Payment Method: | T/T, Western Union, L/C |
| Supply Capacity: | 100,000pcs Per Month |
Features and Benefits:

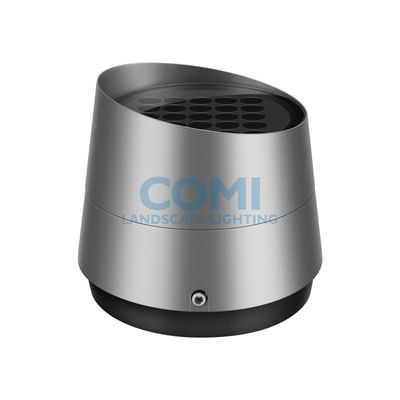

▪ High luminous flux and maximum visual comfort for lighting tasks in the outdoor area.
▪ Portable and tiltable type on ground flood uplight.
▪ ±15° beam direction tiltable Vertically and , ±15° rotatable horizontally.
▪ Various lens types and angles for options for different light distributions:
(1) 2.6°, 3.5°, 5°, 6°,8°,12°, 15°, 20°, 30°, 45°, 60°,15×60°,5×20°,10×70° and etc.
(2) Light distributions: narrow spot, spot, flood, wide flood, or wall wash.
▪ Light Source: CREE or Osram high power LED or COB LED.
▪ Color: 2700-6500K, RGB,RGBW and etc.
▪ High light efficiency(white): 90~110LM/W (White color).
▪ Optional Control mode support: ON/OFF, 0-10V or DALI Dimming, DMX512.
▪ Luminaire completed with 30degree visor for anti-glare.
▪ Optional anti-glare accessories: Honeycomb louver,round-meshed grille and others.
▪ Double powder-coated Corrosion-resistant Die-casting aluminum housing.
▪ UV-resistant PC lamb base with space for bracket, fitting parts, cable and etc..
▪ Immersible height into water<130mm for outdoor lighting applications.
▪ Circular and conically-shaped luminaire housing
▪ Flexibly used in highly different architectural styles, landscape and other applications.
▪ ldeal for high-end museum lighting, uplighting, tree lighting, temporary lighting, etc..
▪ Finished color: RAL9023 Pearl dark grey.
▪ IP rate: IP66 rated for outdoor use.
▪ Ambient Temperature: -25℃∽+50℃
▪ 3- or 5-years warranty.
Technical Parameters for IP66 Outdoor LED On Ground Flood Uplight:
| Item Number |
Optional Control
Method
|
Light Source | Color |
Lens Degree
(Θ1/2)(°)
|
Input Voltage
(V)
|
Rated Power
(W)
|
Typical Luminous Flux (LM)±8% |
IK
Rate
|
| B3AXH25120-G |
ON/OFF,
DALI,
0-10V
|
25×5W
CREE LED
|
Single Color |
2.6°,3.5°,6°,
12°, 20°, 30°,
45°, 60°
10×70°, 5×20°
|
100-264VAC,
50/60Hz
|
120W | 11520LM | IK08 |
| B3AXH25085-G |
ON/OFF,
DALI,
0-10V
|
25×4W
CREE LED
|
Single Color |
2.6°,3.5°,6°,
12°, 20°, 30°,
45°, 60°
10×70°, 5×20°
|
100-264VAC,
50/60Hz
|
85W | 7650LM | IK08 |
| B3AXH24200-G |
DMX512/
RDM
|
24×5W
CREE LED
|
RGBW
4-in-1 Color
|
6°, 15°, 20°,
30°, 15×60°
|
36VDC,
100-264VAC,
50/60Hz
|
200W
(150W)
|
9400LM | IK08 |
| B3AXH72150-G |
DMX512/
RDM
|
72×2W
CREE LED
|
RGB
(24R/24G/24B)
|
5°, 8°, 12.5°,
30°, 10×60°
|
36VDC,
100-264VAC,
50/60Hz
|
150W | 5750LM | IK08 |
Notes:
1. Colors: Very warm white(2200k), Warm White(2700-3000K)/ Neutral White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green/RGB/RGBW and others.
2. DMX512, DALI,0/1-10V dimming or controllable support upon request;
3. Specifications are subjected to change without notice.
Optional Accessories:
Note:
Standard products are NOT included these accessories: honeycomb louver, reeded glass(also named as stripe glass, or honeycomb glass), round-meshed grille. Please inform us if you need these optional accessories for the product in your order.
For more detail introduction and light effect of narrow spot, flood and wall washing of our Anole-X series products, please go to this link in our website>> IP66 LED Projectors, Floodlights and Wall washers for Accent lighting, Architectural Lighting, Landscape lighting and Garden lighting
Structure and Diagram for Portable and Tiltable IP66 LED Flood Uplight:
|
|
