Product Details:
|

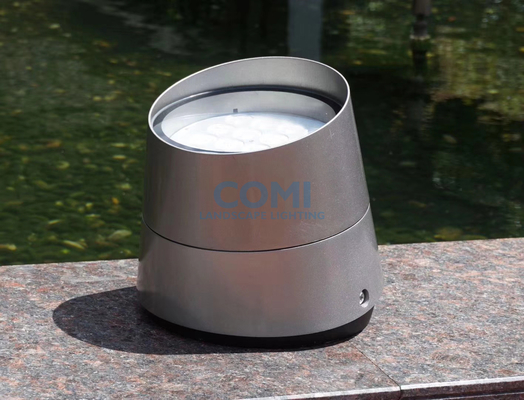

| Item Name: | Portable And Tiltable On Ground Flood Up Light | LED Light Source: | 16PCS Or 48pcs CREE LED |
|---|---|---|---|
| Light Color Or CCT(K): | 2700-6500K, RGB,RGBW And Etc. | Control Mode Support Options: | ON/OFF(CC Mode), DALI, 0-10V, DMX512 |
| Beam Angle: | 2.6°, 3.5°, 5°, 6°,8°,12°, 15°, 20°, 30°, 45°, 60°,15×60°,5×20°,10×70° And Etc. | High Light Efficiency(white): | 90~110LM/W (White Color) |
| LED Driver: | Mean Well Brand Integral LED Driver | Anti-glare Accessories For Options: | Honeycomb Louver,round-meshed Grille And Others |
| Finished Color: | RAL9023 Pearl Dark Grey. | IP Rate: | IP66 Rated For Outdoor Use |
| Ambient Temperature: | -25℃∽+50℃ | Warranty: | 3 Years, Or 5Years |
| High Light: | Beam Direction Adjustable LED Landscape Uplight,100W LED Landscape Uplight,IP66 Outdoor Landscape Up Lighting |
||
Technical Parameters for IP66 Outdoor LED On Ground Uplight:
| Item Number |
Optional
Control Methods
|
Light Source | Light Color |
Optional Lens Degree
(Θ1/2)(°)
|
Optional Input
Voltage
|
Rated
Power
(W)
|
Luminous Flux (LM) |
IK
Rate
|
| B3AXF1605-G |
ON/OFF, DALI,
0-10V, DMX512
|
16×5W
CREE XP-L LED
|
Single Color |
2.6°,3.5°,6°,
12°, 20°, 30°,
45°, 60°
10×70°, 5×20°
|
100-264VAC,
50/60Hz
|
75W |
Cool White=8250LM
Warm White=7500LM
|
08 |
| B3AXF1604-G |
ON/OFF, DALI,
0-10V, DMX512
|
16×5W
CREE XP-G3 LED
|
Single Color |
2.6°,3.5°,6°,
12°, 20°, 30°,
45°, 60°
10×70°, 5×20°
|
100-264VAC,
50/60Hz
|
60W |
Cool White=5950LM
Warm White=5500LM
|
08 |
| B3AXF1604-G | DMX512 /RDM |
16×6W
CREE RGBW 4-in-1 LED
|
RGBW 4-in-1 Full Color |
15°, 20°, 30°,
15×60°
|
36VDC, or 100-264VAC,
50/60Hz
|
100W
(75W)
|
4525LM
(3520LM/75W)
|
08 |
| B3AXF4802-G | DMX512 /RDM |
48×2W
CREE XP-E2 or Osram LED
|
RGB, or RGBW |
5°, 8°,12.5°,
30°,15×60°
|
36VDC, or 100-264VAC,
50/60Hz
|
100W | 4560LM | 08 |
Notes:
1. Colors: Very warm white(2200k), Warm White(2700-3000K)/ Neutral White(4000-4500K)/Cool White(6000-6500K)/Red /Blue /Green/RGB/RGBW and others.
2. DMX512, DALI,0/1-10V dimming or controllable support upon request;
3. Specifications are subjected to change without notice.
Optional Accessories for IP66 Outdoor LED Flood Uplight on ground Mount:
Note:
Standard products are NOT included these accessories: honeycomb louver, reeded glass(also named as stripe glass, or honeycomb glass), round-meshed grille. Please inform us if you need these optional accessories for the product in your order.
For more detail introduction and light effect of narrow spot, flood and wall washing of our Anole-X series products, please go to this link in our website>> IP66 LED Projectors, Floodlights and Wall washers for Accent lighting, Architectural Lighting, Landscape lighting and Garden lighting
Structure and Diagram for Portable and Tiltable IP66 LED Flood Uplight:
