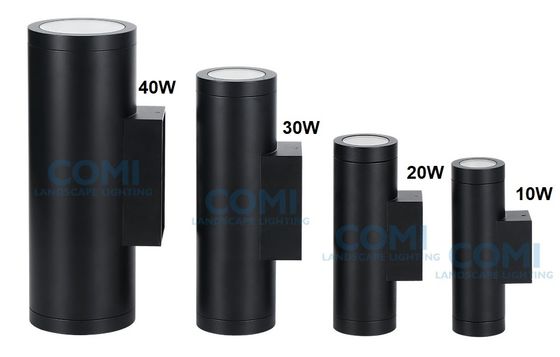

Architectural Cylinder LED Wall Mount Lights 2x5W Small Size For Facade Up / Down Lighting

Architectural Cylinder LED Wall Mount Lights 2x5W Small Size For Facade Up / Down Lighting

MOQ: No MOQ
Delivery Period: 5~20days depends on quantity
Payment Method: L/C, T/T, Western Union
Supply Capacity: 100,000pcs per month
Detail Information
Place of Origin
CHINA
Brand Name
COMI LANDSCAPE LIGHTING
Certification
CE ROHS ETL
Model Number
B1QA0205
Product Name:
Architectural Cylinder LED Up And Down Light
Power:
10W (2x5W)
Input Voltage:
24VDC, 100-240VAC 50/60Hz
Luminous Flux:
700LM(2*350LM)
CRI:
Ra>80, Ra>90
Finish Color:
Powder Coated: Matt Or Glossy Black, Grey, Or White
IP Rate:
IP65 For Outdoor And Indoor Use
Warranty:
2~5 Years
Application:
Garden,Garden Square Park,LANDSCAPE,Buildings,Garden/Pathway/Building/Street
Minimum Order Quantity:
No MOQ
Delivery Time:
5~20days depends on quantity
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
100,000pcs per month
High Light:

Matt LED Wall Mount Lights OEM

,

2x5W LED Wall Mount Lights

,

Facade Cylindrical Outdoor Wall Light

Product Description

Outdoor IP65 Architectural Dual head Cylinder 10W LED Up and Downlight for Landscape or facade Lighting

The specification grade decorative Architectural LED Cylinder Wall Sconce delivers continuous clean lines and clear Cylinder Light to commercial, hospitality and residential interior lighting applications. Our modern, slim profiles and stylish Outdoor Wall Sconce designs offer excellent direct lighting, indirect lighting, exceptional performance and versatility in offices, classrooms, conference rooms, museums, retail outlets, hotels, restaurants, and more. 40° beam spread is standard, other optic options are available.





FEATURES for Surface Mounted Up and Down Wall Lights

  • Construction: Die-cast extruded aluminum body
  • Dual head: 2pcs*5W
  • Power: 10W (2*5W)
  • Input Voltage: Optional 24VDC, 120-240V 50/60 Hz
  • CRI: Ra>80, or Ra>90+, 3-or 5-step SDCM
  • Life: 50,000 hours
  • Power Factor: >0.9
  • Warranty: 2~5 years carefree for parts & components (labor not included)
  • IP65 rated for both dry locations, damp locations or wet locations.
  • Adjustability: Fixed.
  • Gear: integrated & constant current driver.
  • Average life time: 35,000hours@70% lumen depreciation.
  • Material: Die casting aluminum alloy , optical lens, tempered glass cover.
  • Finished: Optional electrostatics powder coating : matt or glossy black ,grey , or white.
  • Easy wall surface ceiling mount ed and maintenance.
  • Applicable environment temperature:: 20℃<fixture<+50℃





Technical Parameters of IP65 Wall Surface Mounted Down or Up Light

Item No. Light Source Color

CRI

(Ra)

Beam

Angle

Input Voltage

Typical Current

(Ma)

Power

(W)

Luminous Flux

(lm)±5%

IK

Rate

B1QA0205

2pcs×5W

CREE

COB LED

Single

Color

Ra>80 18°, 20°, 30°, 60°

24VDC,

120/240V

24V=416mA

110V=102mA

240V=48mA

24V=10.2W
110V=10.4W
240V=10.6W

700~820LM

08


Notes:

1. CCT(K) for single color: 2700K, 3000K, 4000K, 5000K, 6000K. For other color temperature or color or RGB or RGBW, please inquire us separately.

2. Standard version control method is ON/OFF, optional dimming control: 0-10V, DALI, DMX512, TRIAC, please inquire us separately.3. Specification is subjected to change without prior to notice.









Advantage:

Great Lighting Effect

The black finish wall light is made of high-quality die-casting aluminum for better protection against rust and corrosion for longer life. All mounting hardware is included for quick and easy installation, and the mounting bracket is compatible with most existing junction boxes.



High-Quality LED Chips
This product features LED chips with a lower defect rate, higher cost, and better quality, reducing your energy usage. Never need to replace the bulb. Suitable for both residential and commercial applications.



IP65 Waterproof Rating

These outdoor wall sconces provide a warm, welcoming light, perfect to work as a pair. A built-in waterproof gasket protects the light, which greatly prevents the lamp body from water ingress and shortens the light’s life.







COLOR TEMPERATURE GUIDE

color temperature for downlight from comi lighting limited





INTENDED USE
The Cilindro Architectural LED Cylinder Light Fixture is a versatile and high performance fixture offering both precision lighting and elegant style and can be used for any new construction, remodel,or retrofit projects. The Cilindro is ideal for architectural, commercial, and residential applications in columns, surfaces, or pathways.



dual sides wall surface mounted LED up and down lighting fixtures
