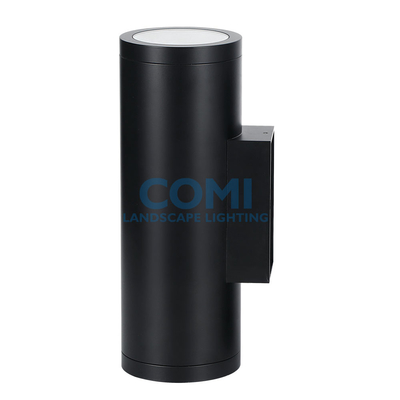

Architectural Outdoor Wall Mounted Light Fittings IP65 40W 2 Directional Cylinder

Architectural Outdoor Wall Mounted Light Fittings IP65 40W 2 Directional Cylinder
Architectural Outdoor Wall Mounted Light Fittings IP65 40W 2 Directional Cylinder Architectural Outdoor Wall Mounted Light Fittings IP65 40W 2 Directional Cylinder Architectural Outdoor Wall Mounted Light Fittings IP65 40W 2 Directional Cylinder Architectural Outdoor Wall Mounted Light Fittings IP65 40W 2 Directional Cylinder Architectural Outdoor Wall Mounted Light Fittings IP65 40W 2 Directional Cylinder

Large Image :  Architectural Outdoor Wall Mounted Light Fittings IP65 40W 2 Directional Cylinder

Product Details:
Place of Origin: CHINA
Brand Name: COMI LANDSCAPE LIGHTING
Certification: CE ROHS ETL
Model Number: B1QD0220
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Packaging Details: 12pcs/carton
Delivery Time: 7-20Days depends on Quantity
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100,000pcs Per Month

Architectural Outdoor Wall Mounted Light Fittings IP65 40W 2 Directional Cylinder

Description
Item Name: Outdoor Dual-side Up And Down Led Wall Light. Power: 40W (2*20W)
Light Source: 2pcs 20W CREE COB LED Light Color Or CCT(K): 2700K, 3000K, 4000K, 5000K, 6000K, RGB, RGBW
Light Efficiency: 80LM/W IP Rate: IP65
Finished Color: Powder Coated Black/grey/white Optional Warranty: 2~5 Years
High Light:

Outdoor Wall Mounted Light Fittings 40W

,

Outdoor Wall Mounted Light Fittings IP65

,

Cylinder Architectural Outdoor Wall Lights OEM

40W 2-Directional Cylinder Surface Mount Architectural LED wall light fittings IP65 for architectural or facade lighting



This is a versatile, low-glare product. It can be used for interior and exterior retail or commercial lighting. The light’s dual headlight permits indirect and direct lighting by a single fixture.







FEATURES of 40W IP65 Outdoor Up and Down lights:

  • Light source type: dual side light output for uplighting and downlighting.
  • Lens: Optical lens
  • Light window: Tempered glass
  • Light Direction: Direct and Indirect
  • Light color or Color Temperature: Features the ability to switch color temps from 3000K, 4000K,5000K and 6000K, even RGB or RGBW.
  • Wattage: 40Watts (2pcs*20W)
  • Input Voltage: Low voltage 24VDC, or high voltage 120V-240V,50/60Hz
  • Lumen output: Up to 2400 lm total
  • Dimming: basic is non-dimmable.
  • Optional Dimming Driver: TRIAC 100% to 0.1%
  • CRI: Ra>80
  • Average life time: 30000hurs@70% lumen depreciation.
  • Construction: Die-cast Aluminum body
  • Finished color :powder coated, available in black, grey, or white color.
  • Installation: wall surface mounted.
  • IP Rate:IP65, Suitable for dry location, damp locations or Wet Locations
  • Operation temperature: -25°C~+50°C.
  • Warranty: 2 years care free for parts & components (labor not included)
  • Applications: brighten the night and outdoor building façade lighting.







Technical Specifications of 40W Wall Mounted Light Fixture IP65 for Indoor or Outdoor up and down lighting:

Item No. Color Light Source

Beam

angle

Input

Voltage

Power

Working

Current(mA)

Luminous Flux IK Rate
B1QD0220 Single color

2pcs*15W

CREE

COB LED

18°, 20°,
30°, 60°

24VDC

120-240V

40W

24VDC=1667

120V=350

240V=175

Cool White=3200LM

Warm White=2680LM

08



Notes:
1. CCT(K) for single color: 2700K, 3000K, 4000K, 5000K, 6000K. For other color temperature or color or RGB or RGBW, please inquire us separately.
2. Standard version control method is ON/OFF, optional dimming control: 0-10V, DALI, DMX512, TRIAC, please inquire us separately.
3. Specification is subjected to change without prior to notice.







Installation and light effect demo for outdoor wall lights for house or building lighting



Architectural Outdoor Wall Mounted Light Fittings IP65 40W 2 Directional Cylinder 0







COLOR TEMPERATURE GUIDE for Dual Head LED Wall Lights for Up and Down Lighting



Architectural Outdoor Wall Mounted Light Fittings IP65 40W 2 Directional Cylinder 1









LED Up and Down Wall Light Family Products:

exterior up down lights ip65 10W 20W 30W 40W Wall surface mounted





Applications for up down outdoor wall lights:
The Architectural LED Cylinder Light Fixture is a versatile and high performance fixture offering both precision lighting and elegant style and can be used for any new construction, remodel,or retrofit projects. The Cilindro is ideal for architectural, commercial, and residential applications in columns, surfaces, or pathways.



Architectural Outdoor Wall Mounted Light Fittings IP65 40W 2 Directional Cylinder 3
