Product Details:
|
| Item Name: | Recessed Circular LED Underground Light | Power: | 9W, 18W, 27W, 36W |
|---|---|---|---|
| Light Source: | 9pcs 2W/3/4W/ Osram High Power LED | Light Color: | Single Color, RGB, RGBW |
| CRI: | Ra>80 Or Ra>90 | Luminous Flux: | 1231LM(for 18W @6000K) |
| Material: | SUS316 Stainless Steel Front Ring And Aluminum Alloy Housing, ABS Mounting Sleeve | Feature: | Circular Arc Shaped Recessed Inground Light. |
| IP Rate: | IP67 | Application: | Circular Lighting For Pillar, Circular Column, Flower Nursery, Sculpture |
| High Light: | Recessed LED Underground Light,LED Underground Light IP67,Parterre LED Underground Light |
||

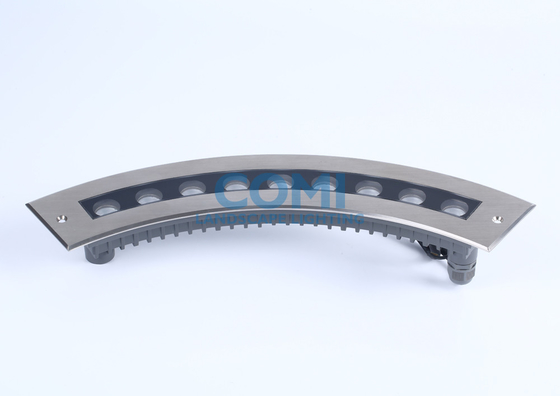

9*2W/ 3W/ 4W Recessed Circular LED Underground Light IP67 For Circular Column Or Parterre Or Tree Lighting
Architectural Landscape LED Low Voltage 24VDC and high voltage 110-240VAC SUS 316 Stainless Steel recessed type In-Ground Light features a curved shaped design, and a complete circle recessed underground lights which End-to-end butt-joint by 5pcs fittings, which is a perfect lighting sulution for surround round cylindrical pillar, or encircle tree or small flower nursery or parterre. It also features a durable, tempered lens and a silicone sealed gasket to protect from water, moisture, and insects. It is an ideal solution for landscape applications looking for quality and energy efficient lighting.
Features of Recessed Arced In-ground Lighting Fixture which Emits a Powerful Circular Column of Light:
Technical Parameters for Recessed Underground Luminaire:
| Item Number | B2FR0957 | B2FR0918 | B2FR0920 |
| Light Color | Single Color | RGB 3-IN-1 Full color | RGBW 4-IN-1 Full color |
| Light Source |
9pcs*2W Osram or CREE LED |
9pcs*3W RGB 3-IN-1 LED |
9pcs*4W RGB 4-IN-1 LED |
| Power | 18W | 27W | 27W or 36W |
| Luminous Flux | 1288LM(@6000K) | 550LM | 920LM |
| CRI(Ra) | Ra>80 | / | / |
| Input Voltage |
Optional 24VDC, 110-240VAC |
24VDC | 24VDC |
| Typical Current |
24VDC=750mA 110V=172mA 240V=86mA |
R=270 G=400 B=400 |
R=270 W=400 |
| IP Rate | IP67 | IP67 | IP67 |
| IK Rate | 09 | 09 | 09 |
| Materials | SUS 316 Front ring, Aluminum Alloy Housing, ABS Mounting Sleeve | ||
| Light Window | High - pressure water cutting Tempered glass | ||
| Control Mode | Basic ON/OFF and non-dimmable. Optional PWM, TRIAC, DALI, 0-10V, DMX512 | ||
| Operating Temperature | -20˚C~+40˚C | ||
| Installation | Recessed Mount by ABS mounting sleeve (included) | ||
| Power Cable | 0.5meter H05RN-F 2X1.0mm² to open wires (Low voltage) 0.5meter H05RN-F 3X0.75mm² to open wires(High voltage) 0.5meter H05RN-F 4X0.75mm² to open wires(for RGB) 0.5meter H05RN-F 5X0.75mm² to open wires(for RGBW) |
||
Family Products of Recessed Arced Inground Lamp with Circle lighting output for pillar,column, Round flower bed, tree, sculpture, gate post and etc.
