Product Details:
|
| Item Name: | Recessed Arc LED In-ground Light | Watts: | 9W, 18W, 27W, 36W |
|---|---|---|---|
| LED: | 9pcs 2W/3/4W/ Osram High Power LED | Light Color: | Single Color, RGB, RGBW |
| CRI: | Ra>80 Or Ra>90 | Lumen Output: | 1230LM(for 18W @4000K) |
| Material: | SUS316 Stainless Steel Front Ring And Aluminum Alloy Housing, ABS Mounting Sleeve | Feature: | Circular Arc Shaped Recessed Inground Light. |
| IP Rate: | IP67 | Application: | Circular Lighting For Pillar, Circular Column, Flower Nursery, Sculpture |
| High Light: | Arced Recessed LED Underground Light,DALI Support LED Underground Light,Arced LED Inground Light |
||

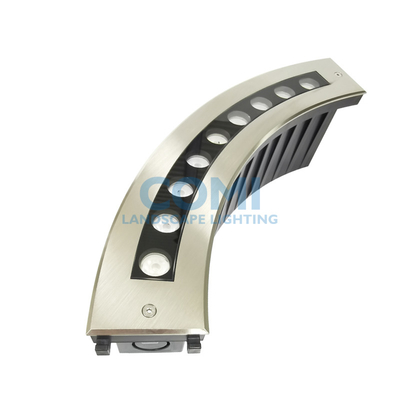

IP67 Arced LED Recessed Underground Light Single RGB RGBW DMX512 DALI 0-10V TRIAC Support For Garden and Landscape Circular Column Or Parterre Or Tree Lighting
Architectural Landscape LED Low Voltage 24VDC and high voltage 110-240VAC SUS 316 Stainless Steel recessed type In-Ground Light features a curved shaped design, and a complete circle recessed underground lights which End-to-end butt-joint by 5pcs fittings, which is a perfect lighting sulution for surround round cylindrical pillar, or encircle tree or small flower nursery or parterre. It also features a durable, tempered lens and a silicone sealed gasket to protect from water, moisture, and insects. It is an ideal solution for landscape applications looking for quality and energy efficient lighting.
Features of Arced LED Recessed Underground Lighting Fixtures:
Technical Parameters for Recessed Underground Luminaire:
| Item Number | B2FR0957 | B2FR0918 | B2FR0920 |
| Light Color | Single Color | RGB 3-IN-1 Full color | RGBW 4-IN-1 Full color |
| Light Source |
9pcs*2W Osram or CREE LED |
9pcs*3W RGB 3-IN-1 LED |
9pcs*4W RGB 4-IN-1 LED |
| Power | 18W | 27W | 27W or 36W |
| Luminous Flux | 1288LM(@6000K) | 550LM | 920LM |
| CRI(Ra) | Ra>80 | / | / |
| Input Voltage |
Optional 24VDC, 110-240VAC |
24VDC | 24VDC |
| Typical Current |
24VDC=750mA 110V=172mA 240V=86mA |
R=270 G=400 B=400 |
R=270 W=400 |
| Beam Angle | Symmetrical Light: 10°, 25°, 45°, 60°, 20*40°, 20*60°; Asymmetrical Light: 45°|35° |
||
| IP Rate | IP67 | IP67 | IP67 |
| IK Rate | 09 | 09 | 09 |
| Materials | SUS 316 Front ring, Aluminum Alloy Housing, ABS Mounting Sleeve | ||
| Light Window | High - pressure water cutting Tempered glass | ||
| Control Mode | Basic ON/OFF and non-dimmable. Optional PWM, TRIAC, DALI, 0-10V, DMX512 | ||
| Operating Temperature | -20˚C~+40˚C | ||
| Installation | Recessed Mount by ABS mounting sleeve (included) | ||
| Power Cable | 0.5meter H05RN-F 2X1.0mm² to open wires (Low voltage) 0.5meter H05RN-F 3X0.75mm² to open wires(High voltage) 0.5meter H05RN-F 4X0.75mm² to open wires(for RGB) 0.5meter H05RN-F 5X0.75mm² to open wires(for RGBW) |
||
Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.) , RGB.
2. The above items are with symmetrical light output, for asymmetrical light output types or frosted glass with soft light output type, please inquire separately.
3. Specifications are subjected to change without notice.
Dimensions (Units:mm) For Both Indoor and Outdoor Inground Landscape Lighting:
Family Products of 6*2/3/4W or 9*2/3/4W 12W/18W/27W/ 36W Recessed Arced Inground Luminaires:
