Product Details:
|
| Item Name: | Recessed Arc LED In-ground Light | Watts: | 9W, 18W, 27W, 36W |
|---|---|---|---|
| LED: | 9pcs 2W/3/4W/ Osram High Power LED | Light Color: | Single Color, RGB, RGBW |
| CRI: | Ra>80 Or Ra>90 | Lumen Output: | 1230LM(for 18W @4000K) |
| Material: | SUS316 Stainless Steel Front Ring And Aluminum Alloy Housing, ABS Mounting Sleeve | Feature: | Circular Arc Shaped Recessed Inground Light. |
| IP Rate: | IP67 | Application: | Circular Lighting For Pillar, Circular Column, Flower Nursery, Sculpture |
| High Light: | Circular LED Inground Lights,Recessed LED Inground Lights |
||

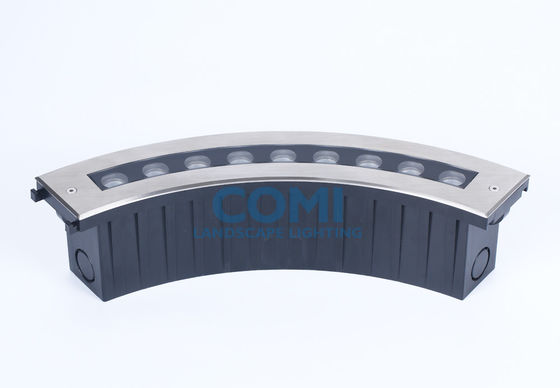

18W 27W Recessed Circular LED Inground Lights 24VDC 110-120VAC or 220-240VAC input For Architectural And Landscape Lighting

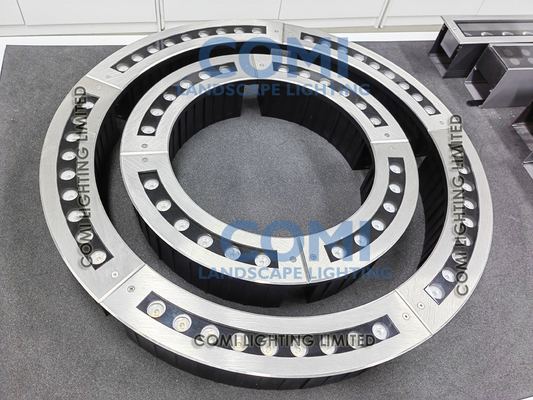

Architectural curved LED in-grade ground Drive-Over Rated stainless steel wall wash is ideal for commercial or residential applications where architectural lighting is desired. Available low voltage 24VDC or high votalge 110-240VAC input for option. Curved shaped design is a perfect lighting sulution for surround round cylindrical pillar, or encircle tree or small flower nursery or parterre.
Features of Arced LED Recessed Underground Lighting Fixtures:
Technical Parameters for Recessed Underground Luminaire for Facade lighting:
| Item Number | B2FR0957 | B2FR0918 | B2FR0920 |
| Light Color | Single Color | RGB 3-IN-1 Full color | RGBW 4-IN-1 Full color |
| Light Source |
9pcs*2W Osram or CREE LED |
9pcs*3W RGB 3-IN-1 LED |
9pcs*4W RGB 4-IN-1 LED |
| Power | 18W | 27W | 27W or 36W |
| Luminous Flux | 1288LM(@6000K) | 550LM | 920LM |
| CRI(Ra) | Ra>80 | / | / |
| Input Voltage |
Optional 24VDC, 110-240VAC |
24VDC | 24VDC |
| Typical Current |
24VDC=750mA 110V=172mA 240V=86mA |
R=270 G=400 B=400 |
R=270 W=400 |
| Beam Angle | Symmetrical Light: 10°, 25°, 45°, 60°, 20*40°, 20*60°; Asymmetrical Light: 45°|35° |
||
| IP Rate | IP67 | IP67 | IP67 |
| IK Rate | 09 | 09 | 09 |
| Materials | SUS 316 Front ring, Aluminum Alloy Housing, ABS Mounting Sleeve | ||
| Light Window | High - pressure water cutting Tempered glass | ||
| Control Mode | Basic ON/OFF and non-dimmable. Optional PWM, TRIAC, DALI, 0-10V, DMX512 | ||
| Operating Temperature | -20˚C~+40˚C | ||
| Installation | Recessed Mount by ABS mounting sleeve (included) | ||
| Power Cable | 0.5meter H05RN-F 2X1.0mm² to open wires (Low voltage) 0.5meter H05RN-F 3X0.75mm² to open wires(High voltage) 0.5meter H05RN-F 4X0.75mm² to open wires(for RGB) 0.5meter H05RN-F 5X0.75mm² to open wires(for RGBW) |
||
Notes:
1. Color: Mono (2000K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.) , RGB.
2. The above items are with symmetrical light output, for asymmetrical light output types or frosted glass with soft light output type, please inquire separately.
3. Specifications are subjected to change without notice.
Dimensions (Units:mm) For IP67 Outdoor Architectural and Landscape LED Inground Light:
Family Products of 6*2/3/4W or 9*2/3/4W 12W/18W/27W/ 36W Recessed Arced Inground Luminaires:
