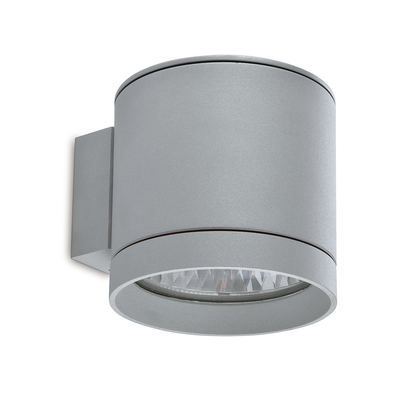

IP65 Surface Mounted LED Wall Light 20W For Facade Or Landscape Or Architectural Lighting
This architectural cylinder wall light is a versatile low-glare lighting fixture. This product can be used indoors and outdoors for commercial or retail purposes. The downlight can also be used to accent and create dramatic effects or provide safety and security. This fixture is exclusively designed for downlighting.
Features of Wall Surface Mounted LED Down lighting:
▪ Single side light output for down (or up) light output.
▪ Light source: 1piece 25W CREE COB LED.
▪ Provide optional 110-120VAC, 220-240Vac 50/60Hz input voltage.
▪ Typical power consumption: 20.5W.
▪ Luminous Flux: 1689LM (Warm white 3000K).
▪ CRI(Ra)>80 (for 2200-6500K only).
▪ Light Color or CCT(K): 2200-6500K.
▪ Beam angle: 25°, 36°
▪ PF>0.95
▪ Optical reflector.
▪ Optional accessory: anti-glare honeycomb louver for soft light output.
▪ Basic ON/OFF.Optional dimming control: 0-10V, DALI, DMX512, TRIAC.
▪ Die-casting aluminum housing, available in black, grey, or white color.
▪ Easy Vertical wall surface Mounted.
▪ IP classification: IP65, suitable for both indoor and outdoor use.
▪ 2 Years (or 3- or 5-year)warranty.
Parameters of Wall Surface Mounted IP65 Indoor or Outdoor Up or Down LED Luminaire:
| Item No. | Light Source | Color |
CRI (Ra) |
Beam Angle |
Input Voltage |
Typical Current (Ma) |
Power (W) |
Luminous Flux (lm)±5% |
PF |
IK Rate |
| B1WPE0120 |
1pc×20W CREE COB LED |
Single Color |
Ra>80 | 25°, 36° | 120/240Vac |
110V=204mA 220V=102mA |
110V=21.4W 220V=21.4W |
Cool White=1952 Warm White=1698 |
>0.95 | 08 |
Notes:
1. CCT(K) for single color: 2700K, 3000K, 4000K, 5000K, 6000K.
2. Standard version control method is ON/OFF, optional dimming control: 0-10V, DALI, DMX512, TRIAC, please inquire us separately.
3. Specification is subjected to change without prior to notice.
|
|
