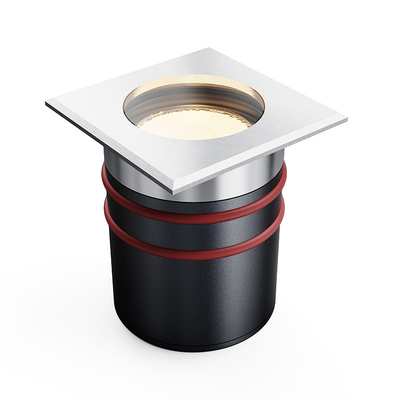

The COMI LANDSCAPE LIGHITNG inground light is designed for ground or floor integration and offers various design possibilities in architectural illumination.
• Dimension: L70xW70xH90mm.
• Front cover: Square cover (Round cover for options).
• Light Source:1piece 8W CREE COB LED single color LED.
• Input voltage: 24VDC, 110-120VAC, 220-240VAC
• Light color or CCT(K): 2700K, 3000K, 4000K, 5000K, 6000K, 6500K and others.
• Output Light type: Symmetrical light output.
• Materials: SUS 316 stainless steel front ring and Die-casting aluminum housing.
• Optional accessory:Honeycomb louver, used for anti-glare light.
• Dimming and control methods:
(1) Basic ON/OFF and Non-dimmable.
(2) Optional dimming with remote 0/1-10V, DALI,DMX dimming driver support.
• Installation: Easy recessed installation by rubber O-ring or stainless steel spring.
• Mounting accessory: aluminum mounting sleeve (included)
• IP rate: IP67 waterproof for outdoor use.
• IK rate: IK08.
• Warranty: 2 Years warranty.
• Certificates:CE, RoHS.
| Item Number | Light Color | Light Source |
Beam
Angle
|
Input
Voltage
|
Typical
Power
|
Luminance
(LM)±5%
|
IK
Rate
|
| B2QDS0108 |
Single
Color
|
1x8W
Cree COB
LED, CRI 80+
|
15°, 25°,
40°, 60°
|
24VDC
120/240VAC
|
8.6W |
Cool White=680
Warm White=571
|
08 |
Notes:
1. Single color: 2100K, 2700K, 3000K, 4000K, 6000K, 6500K,and others;
2. Specification is subjected to change without notice.
|
|
