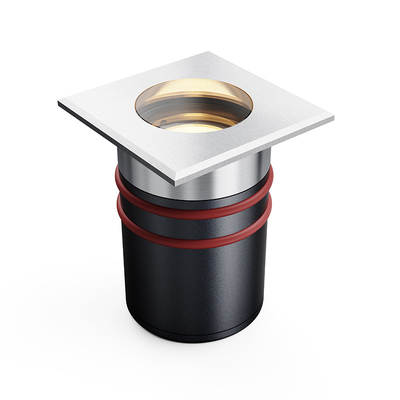

The COMI LANDSCAPE LIGHITNG inground light is designed for ground or floor integration and offers various design possibilities in architectural illumination.
Features and Benefits:
• Dimension: L50xW50xH64mm.
• Front cover:
(1) Materials: SUS 316 stainless Steel;
(2) Shape: Square cover (Optional Round cover).
• Light Source: 1piece 4W LED single color or RGBW, or 3W(RGB) LED.
• Input voltage: 12-24VDC, 110-120VAC, 220-240VAC
• Light color: Single color, RGB, RGBW.
• Output Light type: Symmetrical light output (Optional Asymmetrical light).
• Materials: SUS 316 stainless steel front ring and aluminum lamp body.
• Light Window: Clear or frosted step temper glass, T=7mm
• Dimming: Basic is Non-dimmable. Optional PWM, 0/1-10V, DALI dimmable support).
•
• Mounting Part: aluminum mounting sleeve (included)
• IP classification: IP67 waterproof for outdoor use.
• Warranty: 2 Years warranty.
Technical Parameters for 4W IP67 Sqaure Trim LED Underground Lights:
| Item Number | Light Color | Light Source |
Beam
Angle
|
Input
Voltage
|
Typical
Power
|
Luminance
(LM)±5%
|
IK
Rate
|
| B2QBS0105 | Single Color |
1x5W
Cree or Osram
LED, CRI 80+
|
10°,15°, 25°,
40°, 60°
|
12/24VDC
120/240VAC
|
4.5W |
Cool White=305
Warm White=279
|
06 |
| B2QBS0118 | RGB Full Color |
1x3W RGB
3-IN-1 LED
|
25°,
40°, 60°
|
12/24VDC | 3.6W | 78 | 06 |
| B2QBS0120 | RGBW Full Color |
1x4W RGBW
4-IN-1 LED
|
25°,
40°, 60°
|
24VDC | 4.2W | 148 | 06 |
Notes:
1. Color: Mono (Very warm white 2100K,2400K,2700K, 3000K, 4000K, 6000K, Red,Green, Blue and etc.) , RGB, RGBW
2. Specifications are subjected to change without notice.
|
|
