The COMI Landscape Lighting IP65 LED Spotlights are suitable for emphasis lighting indoors as well as outdoors. Combined with a round base, or ground spike, or tree light mounting straps, or glare shield, it is also perfect for plant lighting, garden and landscape Lighting, and Architectural Lighting.
Features and Benefits:
• Light color: single color, RGB, RGBW, very warm white 2000~2200K.
• Input voltage: 12/24VDC, or 110-120VAC, 220-240VAC, 50/60Hz.
• Light Efficiency: 60~85LM/W (for 2000~6500K white color only).
• Beam angle for options: 8°,15°, 25°, 40°, 60°.
• CRI: Ra>80 (Basic), Optional Ra>70 or Ra>90.
• Optional accessories:
(1) Honeycomb louver for anti-glare light.
(2) Visor (also named as hood, or light shield)
• Vertical or horizontal projecting direction adjustable.
• Finish color: Matte black or dark grey powder painting.
• Control mode: standard ON/OFF.
Optional dimming with remote DALI, 1-10V,TRIAC or DMX 512 dimming driver.
• Mounting accessories for options:
(1) round base: surface mounted on ground/wall/ or ceiling.
(2) Spike: stake into ground

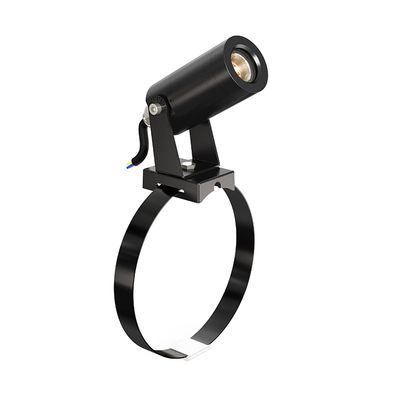

(3) Strap: mounted on pole or tree trunk.
• IP Rate: IP65, suitable for both indoor or outdoor applications.
• IK Rate: IK04.
• Certificates: CE, RoHS
• Warranty: 2 Years.
• Customized made is available.
| Housing | 12# Die-casting aluminum finishing black or dark grey powder painting. T=60-80μm. Adhesion of ISO class 1/ASTM class 4B |
| Light window | Tempered Glass.T=3mm |
| Lens | Optical lens, efficiency ≥85% |
| Cable gland | Copper and nickel coated |
| Gasket | Tooling shaped seal |
| LED | OSRAM, CREE, NICHIA and etc. |
| Driver | DC Constant Voltage or AC High Voltage Input,Constant Current Output |
| Operating temperature | -20℃~+40℃ |
| Power Cable | H05RN-F 2×1.0mm², L=0.5m (12V/24VDC) H05RN-F 3×0.75mm², L=0.5m (120V/240VAC) H05RN-F 4×0.75mm², L=0.5m (RGB, 12V/24VDC) H05RN-F 2×1.0+3×0.5mm², L=0.5m(RGBW, 24VDC) |
| Mounting Accessory | Round Base (Aluminum). Optional Spike(PC) and Strap(Stainless Steel) |
| Item Number | Light Source | Light Color |
Beam Angle
(Θ1/2)(°)
|
Input Voltage |
Typical Power
Consumption
|
Typical Luminance
(LM)
|
IK
Rate
|
| B3CA0157-X | 1×2W OSRAM/ CREE LED |
Single
Color,
2000-2200K
|
5°, 8°,
15°, 25°,
40°, 60°
|
12/24VDC,
120/240VAC
|
2.6W |
Cool white=178
Warm white=153
|
04 |
| B3CA0158-X | 1×4W OSRAM/ CREE LED |
Single
Color,
2000-2200K
|
5°, 8°,
15°, 25°,
40°, 60°
|
12/24VDC,
120/240VAC
|
3.5W |
Cool white=252
Warm white=210
|
04 |
| B3CA0105-X | 1×6W CREE COB LED |
Single
color
|
15°, 30°,
40°, 60°
|
12/24VDC,
120/240VAC
|
5.5W |
Cool white=412
Warm white=331
|
04 |
| B3CA0118-X |
1×3W RGB
3-IN-1 LED
|
RGB
Full Color
|
25°,
40°, 60°
|
12/24VDC | 3.2W | 68 | 04 |
| B3CA0120-X | 1×4W RGBW 4-IN-1 LED |
RGBW
Full Color
|
25°,
40°, 60°
|
12/24VDC | 4.2W | 145 | 04 |
Notes:
1. "X" in item number stands for mounting accessories for IP66 outdoor led flood spot lights:
| X | Mounting Accessories | Mounting Method |
| B | Round base | Surface mount on ground, wall, or ceiling |
| S | Spike | Stake into Ground |
| T | Tree Strap | mounted on tree trunk or pole by strap |
2. Color: Single color 2000,2400K, 2700K, 3000K, 4000K,6000K, Red, Blue, Gree, RGB, RGBW
3. Specifications are subjected to change without notice.
IP65 LED spotlights with various mounting options (round base, spike, or strap) find applications in outdoor lighting scenarios where durability, weather resistance, and versatility are essential.
• Garden and Landscape Lighting:
LED spotlights with spike or round base mounts are ideal for illuminating gardens, pathways, trees, and other landscape features. The spotlights can be easily positioned and adjusted to highlight specific elements in the outdoor environment.
• Architectural Lighting:
These outdoor IP65 spotlights can be used to highlight architectural features of buildings, monuments, or structures, enhancing their aesthetic appeal during nighttime. The IP66 rating ensures they can withstand outdoor conditions without compromising performance.
• Outdoor Events and Festivals:
LED spotlights with spike mounts are commonly used for temporary lighting installations at outdoor events, festivals, or concerts. They can be easily placed in the ground to provide accent lighting, stage lighting, or general illumination.
• Signage and Billboard Lighting:
These spotlights can be used to highlight signage, billboards, or advertising displays outdoors. The adjustable mounting options allow for precise positioning to ensure optimal visibility and impact.
• Public Spaces and Parks:
Municipalities often use IP65 LED spotlights for lighting public parks, plazas, or recreational areas. The rugged construction and weatherproof design make them well-suited for outdoor installations in urban environments.
|
|
