MOQ: | NO MOQ |
Delivery Period: | 5-8 working days |
Payment Method: | T/T, Western Union, D/P, D/A, L/C, MoneyGram |

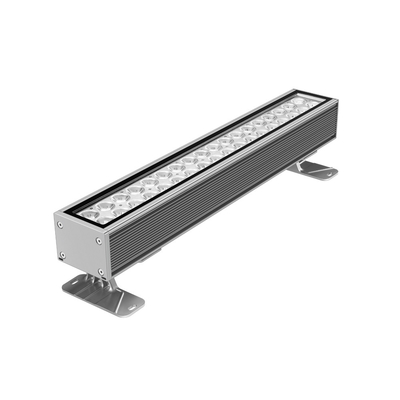

COMI LANDSCAPE LIGHTING's B6P-series is a IP65 powerful and high luminance output LED Linear Wall Washer. Featured with optional extensive optic lens types and angles, and control methods which enables it to be easy to install in and meet a wide variety of outdoor applications. Because of the RGBW 4-in-1 high power LEDs the B6P-series IP65 LED Linear Light bar offers homogeneous color mixing. Ideal for illuminating large surfaces (facade lighting) and various different kinds of buildings, landscape and objects on accent lighting, architectural lighting, landscape lighting and garden lighting.
Features and Benefits:
▪ High luminous flux and maximum visual comfort for lighting tasks in the outdoor area.
▪ Lengths for options: 1000mm (Other models: 400mm, 500mm, 750mm).
▪ Power: 300W (Other models:120W, 160W, 220W, 240W).
▪ High light efficiency(white): 100~110LM/W, and up to 300000LM(@300W).
▪ Various lens types and angles for options for different light distributions:
(1) 5°, 8°, 6°, 12°, 12.5°,15°, 20°, 30°, 45°, 60°, 5×20°, 10×30°, 10×60°,10×70°, 15×30°.
(2) Light distributions: narrow spot, spot, flood, wide flood, or wall wash.
▪ LED Chip Brand: CREE or Osram LED.
▪ Color: 2700-6500K, RGBW, (RGB available).
▪ Optional Control support: ON/OFF, 0-10V or DALI Dimming, DMX512.
▪ Degree scale hinge for precisely aligned and adjustable.
▪ High strength aluminum alloy ±90° angle adjustable brackets.
▪ Optional Honeycomb louver and light barrier for anti-glare.
▪ Silver Anodized Die-casting aluminum housing.
▪ Finished color: Anodized Silver Aluminum Alloy.
▪ IP rate: IP65 rated for outdoor use.
▪ Ambient Temperature: -25℃∽+50℃.
▪ 3- or 5-years warranty.
Material Specifications for IP66 120W LED Flood Lights:
Housing | Silver Anodized Aluminum Alloy |
Lens | Optical lens, efficiency≥90% |
Light Window Glass | Step tempered glass.T=4mm or T=5mm |
Cable Gland | IP-68 PG-9 PVC |
Gasket | Glass and housing are silicone sealed |
LED | CREE, OSRAM LED |
Operating Temperature | -20˚C~+50˚C |
Bracket | Aluminum |
Power Cable | H05RN-F 3×1.0mm², L=0.5m(high voltage) H05RN-F 5×0.75mm², L=0.5m(for RGBW or DMX512) |
Controllable Support | Optional ON/OFF, DMX512, DALI, 0-10V |
Technical Specifications for High Luminance Output IP65 LED Wall Washers:
Item Number
|
Control Method |
Light source
|
Color
|
Length
(mm)
|
Lens Degree
Selected (Θ1/2)
|
Input
Voltage
(V)
|
Typical Operating
Current(mA)
|
Typical
Power(W)
|
Typical
Luminance(lm)
|
IK
rate
|
B6P4806 | ON/OFF, DALI, 0-10V |
48pcs×6W LED
,CREE XP-L
or Osram P9
|
Single | 1000mm |
6°, 12°, 20°,
30°, 45°, 60°,
10×70°, 5×20°
|
110-305VAC,
50/60Hz
|
110V=2727mA
220V=1364mA
|
300W |
Cool White=30500LM
Warm white=27000LM
|
05 |
B6P10858 | ON/OFF, DALI, 0-10V | 108pcs×3W CREE XP-G3 LED | Single | 1000mm |
5°, 8°, 12.5°,
20°, 30°, 60°,
15×30°, 10×60°
|
110-305VAC,
50/60Hz
|
110V=2727mA
220V=1364mA
|
300W |
Cool White=31000LM
Warm white=28000LM
|
05 |
B6P4820 |
DMX512/
RDM
|
48pcs×6W CREE RGBW 4-IN-1 LED |
RGBW
4-in-1 Full Color
|
1000mm |
15°, 20°, 30°,
10×30°, 10×60°
|
110-305VAC,
50/60Hz
|
110V=2727mA
220V=1364mA
|
300W | 13000LM | 05 |
Notes:
1. Length avaialble: 400mm, 500mm, 750mm, 1000mm and etc.
2. Specifications are subjected to change without notice.
