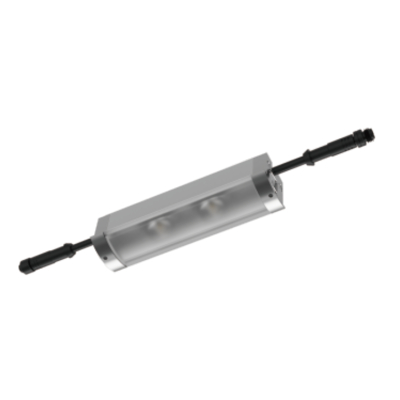

IP67 Linear LED Handrail Lighting System 5W Symmetrical or Asymmetrical Light Output

IP67 Linear LED Handrail Lighting System 5W Symmetrical or Asymmetrical Light Output

MOQ: 20pcs
Delivery Period: 15-20days
Payment Method: T/T, Western Union, L/C
Supply Capacity: 100,000pcs
Detail Information
Place of Origin
China
Brand Name
COMI LIGHTING
Certification
CE ROHS
Model Number
08S30118
Product:
5W IP67 Linear LED Handrail Light System
Power:
5W
Input Voltage:
24VDC
Light Distribution Type:
Symmetrical Beam (90° X 135°) Or Asymmetrical Beam (65° X 125°)
Light Source:
2pcs 2.5W CREE LED, CRI 80+
Light Efficiency:
>92LM/W
Material:
Aluminum Housing And PC Diffuser
Diffuser:
PC
IP Rate:
IP67
Warranty:
2 Years
Minimum Order Quantity:
20pcs
Delivery Time:
15-20days
Payment Terms:
T/T, Western Union, L/C
Supply Ability:
100,000pcs
Product Description

5W Recessed Linear LED Handrail Light - IP67

Engineered specifically for discreet, high-performance under-rail illumination on round profile handrails (stainless steel or aluminum alloy, Ø48-52mm, 1-2mm wall). This IP67-rated linear fixture provides architects and installers with a versatile solution for creating continuous, glare-free lighting in diverse architectural settings, from indoor residential spaces to outdoor public areas like villas, parks, squares, and garages.

Specifications & Advantages:







  • Optics: Choice of Symmetric (90°x135°) or Asymmetric (65°x125°) beam angles for tailored light spread.

  • Light Source: 2 x 2.5W CREE SMD LEDs. Luminous Flux >460LM (@3000K).

  • Color & Quality: Single CCT (2700K to 6500K). Standard CRI Ra>80 (High CRI Ra>90 available).

  • Construction: Durable aluminum alloy housing with clear PMMA optical diffuser for even light output.

  • Installation: Recessed mounting into handrail tube. Compatible cut-out: 118.5mm x 25mm. Curved front ensures fit on round tubes. Easy maintenance.

  • Electrical: 24VDC input, 5W power consumption. Maximum connected load: 100W.

  • Durability: IP67 weatherproof (splash/dust resistant - not for submersion).

  • Operating temp: -20°C to +45°C.

  • Longevity: Rated for 30,000 hours (L70 lifespan).

  • Dimensions (Fixture): 118mm (L) x 30mm (W) x 29mm (H).

  • Warranty: 2 Years.

Technical Parameters of 5W IP67 Symmetrical or Asymmetrical LED Handrail lighting System:



Item Number



Light Color
or CCT(K)



Light Source Input Voltage Power Beam Angle
Light Efficiency
(LM/W)
IP Rate Applications
08S30118-S-DC
2700K, 3000K,
4000K, 6000K
2PCS x 2.5W
CREE LED,
CRI80+
24VDC
Constant Voltage
5W
90° x 135°
(Symmetrical)
93LM/W IP67
Suit for ∅48-52mm
handrail tube with
wall thickness 1-2mm
08S30118-A-DC
2700K, 3000K,
4000K, 6000K
2PCS x 2.5W
CREE LED,
CRI80+
24VDC
Constant Voltage
5W
65° x 125°
(Asymmetrical)
92LM/W IP67
Suit for ∅48-52mm
handrail tube with
wall thickness 1-2mm



Note:For constant current input version, please inquire us separately.







Light Distribution Diagram:
