| MOQ: | 10pcs |
| Standard Packaging: | Inner Box and Outer carton |
| Delivery Period: | 3~15 working days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 100,000pcs per month |

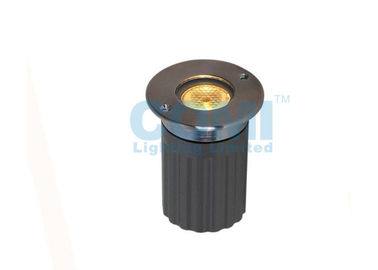

B2CAR0116, B2CAR0118 (RGB) 24VDC or 110~240VAC 1 * 3W Honeycomb lens Embeded LED Inground Spot light with Round Cover IP67 Waterproof
Features and Benefits:
1. Small size lamp body;
2. Front cover is made of Stainless steel SUS 316L# and Full area=783kgs Glass pressure capacity;
3. Single color or RGB full Color options
4. Low voltage 24VDC and wide range high voltage 110~240VAC input for option
5. High quality or UL Listed LED driver;
6. Optional optical-grade PMMA lens: efficiency≥85% : Clear optic lens, Honeycomb lens, Symmetrical lens and asymmetrical lens(45°|35°);
7. IP67 waterproof and IK09 which enables the LED underground light be widely used in many indoor or outdoor lighting application;
8. Dimmable, automatic colour change, DMX 512+DMX decoder, DALI, 1-10 V controllable;
Material specifications:
| Housing: | 12# Die-casting aluminum grey powder coated T=60-80µm. Adhesion of ISO class 1/ASTM class 4B. |
| Front cover: | Stainless steel SUS 316L# |
| Glass | Step tempered white coating glass. T=8mm |
| Glass pressure capacity | Full area=783kgs |
| Gasket | Molding shaped seal |
| Driver |
Constant current output
Single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
|
| Operating temperature: | -20℃~40℃ |
| Power cable: |
H05RN-F 2X1.0mm² L=0.5m (low voltage)
H05RN-F 3X1. 0mm² L=0.5m (high voltage)
H05RN-F 4X0.75mm² L=0.5m (for RGB)
|
| Mounting sleeve: | PVC 014# |
General Information:
| Item No. | Light source |
Degree
(Θ 1 / 2 )
|
Input
voltage
(V)
|
Typical operating
current (mA)
|
Typical
consumption
(w)
|
Typical
luminance
(lm)
|
IK rate |
|
B2CAR0116
|
1×2W | 30 |
24VDC Or
120 /240
|
24V=110
120V=48
240V=28
|
24V=2.6
120V=3.3
240V=3.3
|
Cool white=77
Warm white=65
|
09 |
|
B2CAR0118
|
1×3W
RGB 3in1
Full color
|
30 | 24VDC |
R=38
G=53
B=54
|
3.5W | 56 | 09 |
Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice
Dimensional Drawing(Units:mm):
B2CA,D2CA Series related LED underground Lights:
| Item No. | Light source |
Degree
(Θ 1 / 2 )
|
Input
voltage
(V)
|
Typical operating
current (mA)
|
Typical
consumption
(w)
|
Typical
luminance
(lm)
|
IK rate |
|
B2CAR0116
B2CAS0116
|
1×2W | 30 |
24VDC Or
120 /240
|
24V=110
120V=48
240V=28
|
24V=2.6
120V=3.3
240V=3.3
|
Cool white=77
Warm white=65
|
09 |
|
B2CAR0118
B2CAS0118
|
1×3W
RGB 3in1
Full color
|
30 | 24VDC |
R=38
G=53
B=54
|
3.5W | 56 | 09 |
|
D2CAR0607
D2CAS0607
|
6×SMD3020 | - |
24VDC Or
120 /240
|
24V=13
120V=8
240V=6
|
24V=0.3
120V=0.5
240V=0.8
|
Cool white=13.7
Warm white=11.8
|
09 |
|
D2CAR0315
D2CAS0315
|
3×SMD5050
RGB 3in1
Full color
|
- | 24VDC |
R=21
G=21
B=21
|
1.5W | 3.3 | 09 |
|
|
