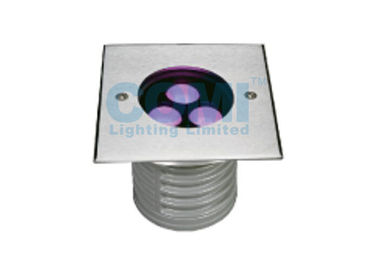

3 * 2W 6W 7W Square Deep Recessed High Power LED Inground Light 450LM

3 * 2W 6W 7W Square Deep Recessed High Power LED Inground Light 450LM

MOQ: 10pcs
Standard Packaging: Inner Box and Outer carton, 0.95KGs/piece
Delivery Period: 5~15 Working Days
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 100,000 pcs per month
Detail Information
Place of Origin
Guangdong China
Brand Name
COMI Lighting (HK)
Certification
CE,RoHs,TUV, ETL,PSE
Model Number
FB2CDS0357, FB2CDS0318
Product Type:
3 * 2W Symmetrical Power LED Inground Lamp
Light Source:
3pcs 2W Or 3W High Power LED
LED Brand:
Osram, Cree, Citizen, Epistar, Prolight
Power (W):
24V=5.6, 120V=7, 240V=7.6, RGB=7.7
Luminance (LM):
Cool White=479, Warm White=376
Lens:
3 In 1 Optical Lens, Efficiency≥85%
Light Distribution:
Symmetrical Light Distribution
Front Cover:
Square, SUS 316 Stainless Steel
Lamp Body:
Grey Die-cast Aluminum
Warranty:
2 Years
Minimum Order Quantity:
10pcs
Packaging Details:
Inner Box and Outer carton, 0.95KGs/piece
Delivery Time:
5~15 Working Days
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
100,000 pcs per month
High Light:

led buried light

,

in ground garden lights

Product Description

FB2CDS0357, FB2CDS0318(RGB)​​ 24VDC or 110-240VAC 3 * 2W 6W 7W Square Deep Recessed High Power LED Inground Light 450LM​ 116*116mm Square Front Cover ETL Listed







Features and Benefits:

1. 116mm round shape, SUS 316 Stainless steel front cover,Round shape or square shape for options.

2. 2578KGs glass pressure capacity and IK09

3. 3pcs high power Osram/ Cree/ Epistar/ Citizen/ Prolight LED as its light source

4. Dimming options by: 0-10V, DALI, PWM and etc;

5. Lamp body is made of die cast aluminum helps fast heat dissiption

6. Easy to install by PVC mounting sleeve

7. Low power consumption, energy and cost saving

8. IP67 rating desgin suitable for many outdoor back lighting or surface smooth lighting application.









Material specifications:

Housing: 12# Die-casting aluminum grey powder coated T=60-80µm.
Adhesion of ISO class 1/ASTM class 4B.
Front Plate: Stainless steel SUS 316L#
Glass pressure capacity Full area=2578kgs
Lens Symmetrical optical lens, efficiency≥85%
Glass Step tempered glass. T=8mm
Cable gland: IP-67 PG-9 PVC
Gasket: Tooling shaped silicone seal
PCB Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w /mk
LED: Osram or Cree High Power LED
Driver:
Constant current output
Single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
Operating temperature: -20℃~40℃
Power cable:
H05RN-F 2X1.0mm² L=0.5m(low voltage)
H05RN-F 3X1. 0mm²  L=0.5m(high voltage)
H05RN-F 4X0.75mm²  L=0.5m(for 24VDC RGB)
Mounting sleeve: PVC







Technical Information:

Item No. Light source
Lens Beam
Angle(º)
Input
voltage(V)
Typical operating
current (mA)
Typical
consumption(w)

Typical

Luminance (lm)

IK
rate
FB2CDS0357

3×2W

Osram LED

20º
24VDC Or
120 /240
24V=236
120V=112
240V=62
24V=5.6
120V=7
240V=7.6
Cool white=479
Warm white=376
09
FB2CDS0318

3×3W

3-in-1 RGB

LED

30º
24VDC
R=70
G=124
B=124
7.7 R=48
G=79
B=20
09

Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.





3 * 2W 6W 7W Square Deep Recessed High Power LED Inground Light 450LM 0

3 * 2W 6W 7W Square Deep Recessed High Power LED Inground Light 450LM 1 3 * 2W 6W 7W Square Deep Recessed High Power LED Inground Light 450LM 2











Dimensional Drawing (Units:mm):

3 * 2W 6W 7W Square Deep Recessed High Power LED Inground Light 450LM 3





3 * 2W 6W 7W Square Deep Recessed High Power LED Inground Light 450LM 4



3 * 2W 6W 7W Square Deep Recessed High Power LED Inground Light 450LM 5













Family Products:

Item No. Light source Lens
Lens Beam
Angle
(º)
Input
voltage
(V)
Typical
operating
current
(mA)
Typical
consumption
(w)

Typical

Luminance

(lm)

IK
rate
FB2CDR0357
FB2CDS0357

3×2W

Osram

B33D 20
24VDC Or
120 /240
24V=236
120V=112
240V=62
24V=5.6
120V=7
240V=7.6
Cool white=479
Warm white=376
09

FB2CDR0318
FB2CDS0318

3×2W
RGB 3in1
Full color

B34D 30
24VDC
R=70
G=124
B=124
7.7 147 09
FC2CDR0357
FC2CDS0357

3×2W

Osram

C9 45º|35º
24VDC Or
120 /240
24V=236
120V=112
240V=62
24V=5.6
120V=7
240V=7.6
Cool white=479
Warm white=376
09

Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
