MOQ: | 10pcs |
Standard Packaging: | Inner Box and Outer carton, 0.95KGs/piece |
Delivery Period: | 5~15 Working Days |
Payment Method: | T/T, L/C, Western Union, MoneyGram |
Supply Capacity: | 100,000 pcs per month |

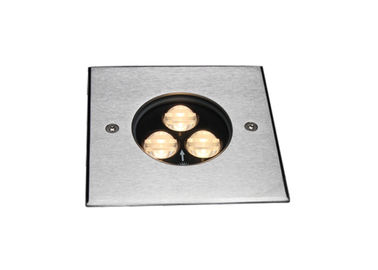

FC2CDR0357, FC2CDR0318(RGB) 24VDC or 110-240VAC 3 * 2W 6W 7W Round Front Rring Asymmetrical LED Inground Light
Features and Benefits:
1. 45°|35° Asymmetrical optic lens and Asymmetrical Light Distribution
2. 116mm round shape, SUS 316 Stainless steel front cover,Round shape or square shape for options.
3. 2578KGs glass pressure capacity and IK09
4. 3pcs high power Osram/ Cree/ Epistar/ Citizen/ Prolight LED as its light source
5. Dimming options by: 0-10V, DALI, PWM and etc;
6. Lamp body is made of die cast aluminum helps fast heat dissiption
7. Easy to install by PVC mounting sleeve
8. Low power consumption, energy and cost saving
9. IP67 rating desgin suitable for many outdoor back lighting or surface smooth lighting application.
Material specifications:
Housing: | 12# Die-casting aluminum grey powder coated T=60-80µm. Adhesion of ISO class 1/ASTM class 4B. |
Front Plate: | Stainless steel SUS 316L# |
Glass pressure capacity | Full area=2578kgs |
Lens | Symmetrical optical lens, efficiency≥85% |
Glass | Step tempered glass. T=8mm |
Cable gland: | IP-67 PG-9 PVC |
Gasket: | Tooling shaped silicone seal |
PCB |
Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w /mk |
LED: | Osram or Cree High Power LED |
Driver: |
Constant current output
Single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
|
Operating temperature: | -20℃~40℃ |
Power cable: |
H05RN-F 2X1.0mm² L=0.5m(low voltage)
H05RN-F 3X1. 0mm² L=0.5m(high voltage)
H05RN-F 4X0.75mm² L=0.5m(for 24VDC RGB)
|
Mounting sleeve: | PVC |
Technical Information:
Item No. | Light source |
Lens Beam
Angle(°)
|
Input
voltage(V)
|
Typical operating
current (mA)
|
Typical
consumption(w)
|
Typical Luminance (lm) |
IK rate |
FC2CDR0357 |
3×2W Osram LED |
45°|35° |
24VDC Or
120 /240
|
24V=236
120V=112 240V=62 |
24V=5.6
120V=7 240V=7.6 |
Cool white=479 Warm white=376 |
09 |
FC2CDR0318 |
3×3W 3-in-1 RGB LED |
45°|35° |
24VDC
|
R=70
G=124 B=124 |
7.7 | R=48 G=79 B=20 |
09 |
Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
Dimensional Drawing (Units:mm):
Family Products:
Item No. | Light source | Lens |
Lens Beam
Angle
(º)
|
Input
voltage
(V)
|
Typical
operating
current
(mA)
|
Typical
consumption
(w)
|
Typical Luminance (lm) |
IK rate |
FB2CDR0357 FB2CDS0357 |
3×2W Osram |
B33D | 20 |
24VDC Or
120 /240
|
24V=236
120V=112 240V=62 |
24V=5.6
120V=7 240V=7.6 |
Cool white=479 Warm white=376 |
09 |
FB2CDR0318 |
3×2W |
B34D | 30 |
24VDC
|
R=70
G=124 B=124 |
7.7 | 147 | 09 |
FC2CDR0357 FC2CDS0357 |
3×2W Osram |
C9 | 45º|35º |
24VDC Or
120 /240
|
24V=236 120V=112 240V=62 |
24V=5.6 120V=7 240V=7.6 |
Cool white=479 Warm white=376 |
09 |
Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
