| MOQ: | 10pcs |
| Standard Packaging: | Inner box and outer carton, 6pcs per carton |
| Delivery Period: | 5~15 Working Days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 100,000pcs per month |

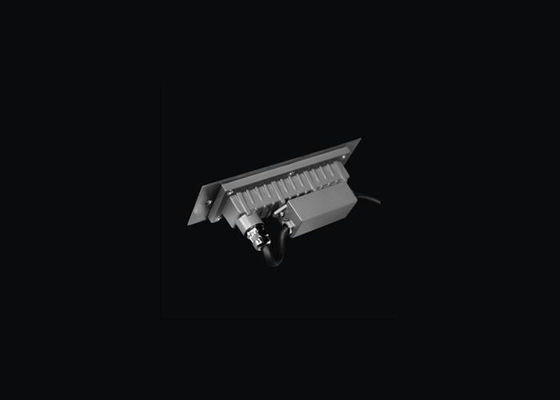

B2FL0357, B2FL0318(RGB) 24VDC or 110 - 240VAC 3 * 2W Small Symmetrical Recessed Linear Inground Wall Washer Light with PVC Mounting Sleeve
Features and Benefits:
1. Stainless steel SUS 316L Front cover;
2. World well-known brand Osram, Cree, Citizen or others as its light source
3. Symmetrical light distribution
4. low voltage 24vdc and high voltage 110V - 240vac
5. Easy to install by PVC mounting sleeve
6. Standard High voltage type with internal driver
Material specifications:
| Housing: | 12# Die-casting aluminum grey powder coated T=60-80µm. Adhesion of ISO class 1/ASTM class 4B. |
| Front Plate: | Stainless steel SUS 316L# |
| Glass pressure capacity | Full area=3251kgs |
| Lens | Symmetrical optical lens, efficiency≥85% |
| Glass | Step tempered glass. T=8mm |
| Cable gland: | IP-68 PG-9 PVC |
| Gasket: | Tooling shaped silicone seal |
| PCB |
Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w /mk |
| LED: | Osram or Cree High Power LED |
| Driver: |
Constant current output
Single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
|
| Operating temperature: | -20℃~40℃ |
| Power cable: |
H05RN-F 2X1.0mm² L=0.5m(low voltage)
H05RN-F 3X1. 0mm² L=0.5m(high voltage)
H05RN-F 4X0.75mm² L=0.5m(for 24VDC RGB)
|
| Mounting sleeve: | PVC |
Technical Information:
| Item No. | Light source | Lens Type |
Beam
Angle
(°)
|
Input
voltage
(V)
|
Typical operating
current (mA)
|
Typical
consumption
(w)
|
Typical Luminance (lm) |
IK rate |
| B2FL0357 |
3×2W Osram LED |
B27 | 25° |
24VDC Or
120 /240
|
24V=240 120V=100 240V=58 |
24V=5.7 120V=6.3 240V=6.7 |
Cool white=508 Warm white=333 |
08 |
| B2FL0318 |
3×3W 3-in-1 RGB LED |
B2 | 30° | 24VDC | R=70 G=150 B=150 |
7 | 180 | 08 |
Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
Dimensional Drawing (Units:mm):
Family Products:
| Item No. | Light source | Lens Type |
Beam
Angle
(°)
|
Input
voltage
(V)
|
Typical operating
current (mA)
|
Typical
consumption
(w)
|
Typical Luminance (lm) |
IK rate |
| B2FL0357 | 3×2W | B27 | 25° | 24VDC 120/240 |
24V=240 120V=100 240V=58 |
24V=5.7 120V=6.3 240V=6.7 |
Cool white=508 Warm white=333 |
08 |
| B2FL0318 | 3×2W RGB 3in1 Full color |
B2 | 30° | 24VDC | R=70 G=150 B=150 |
7 | 180 | 08 |
| B2FL0657 |
6×2W Osram LED |
B27 | 25° |
24VDC Or
120 /240
|
24V=437 120V=100 240V=57 |
24V=10.5 120V=11.8 240V=12.1 |
Cool white=1100 Warm white=733 |
08 |
| B2FL0618 |
6×3W 3-in-1 RGB LED |
B2 | 30° | 24VDC | R=200 G=250 B=250 |
17 | 340 | 08 |
| C2FL0357 | 3×2W | C11 | 45°|35° | 24VDC 120/240 |
24V=240 120V=100 240V=58 |
24V=5.7 120V=6.3 240V=6.7 |
Cool white=508 Warm white=333 |
08 |
| C2FL0657 |
6×2W Osram LED |
C11 | 45°|35° | 24VDC 120/240 |
24V=437 120V=100 240V=57 |
24V=10.5 120V=11.8 240V=12.1 |
Cool white=1100 Warm white=733 |
08 |
Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
3. The first letter in item number stands for lens or glass type；
B-- Stands for symmetrical lens
C-- Stands for asymmetrical lens
D-- Stands for white print, or Frosted glass
|
|
