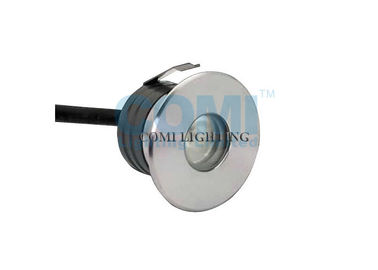

B2XAR0157, B2XAR0118(RGB) 1 * 2W 3W Round Cover Symmetrical Wooden Floor Light, Inground Light with External cylinder-shaped IP67 Waterproof LED driver
COMI Lighting B2XAR Series LED recessed wooden light is a decorative point of light equiped clear optical lens with Symmetrical light output and suitable for integration in floors, ceilings,walls or stairs indoors and outdoors.DC 12-24V version can be dimmable, autom. colour change, DMX 512, DALI, 1-10 V controllable by power supplies or controller. Very low mounting depth and very simplied install by clips into cut wooden floor hole directly.
Material specifications:
| Housing: | 12# Die-casting aluminum grey powder coated T=60-80µm. Adhesion of ISO class 1/ASTM class 4B. |
| Front Plate: | Stainless steel SUS 316L# |
| Glass pressure capacity | Full area=1106kgs |
| Lens | Symmetrical optical lens, efficiency≥85% |
| Glass | Step tempered glass. T=7mm |
| Cable gland: | IP-68 PG-9 PVC |
| Gasket: | Tooling shaped silicone seal |
| PCB | Excellent heat conductivity aluminum, |
| LED: | Osram or Cree High Power LED |
| Driver: | Constant current output Single color LED=1-circuit output RGB 3in1 LED=3-circuit output |
| Operating temperature: | -20℃~40℃ |
| Power cable: | H05RN-F 2X1.0mm² L=0.5m(low voltage) H05RN-F 3X1. 0mm² L=0.5m(high voltage) H05RN-F 4X0.75mm² L=0.5m(for 24VDC RGB) |
| Mounting sleeve: | PVC |
Techinical specifications:
| Item No. | Light source | Lens Type | Beam Angle (°) | Input voltage (V) | Typical operating current (mA) | Typical consumption (w) | Typical | IK rate |
| B2XAR0157 | 6×2W | B27 | 25° | 24VDC Or 120 /240 | 24V=88 240V=29 | 24V=2.1 240V=3.1 | Cool white=83 Warm white=68 | 08 |
| B2XAR0118 | 6×3W | B2 | 30° | 24VDC | R=26.5 G=44 B=45 | 2.8 | 60 | 08 |
Note:
1. Single color: Warm White,Neutral White, Cool White,Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
Dimensional Drawing (Units:mm)
|
|
