Product Details:
|
| Product Type: | LED Wooden Floor Light | Light Source: | 6*2W Or 3W LED |
|---|---|---|---|
| LED Brand: | Osram, Cree, Citizen, Epistar | Power (W): | 24V=13, 120V=13.5, 240V=13.7,RGB=17.5 |
| Luminance (LM): | Cool White=956, Warm White=783 | Front Cover: | SUS 316 Stainless Steel |
| Housing: | Aluminum | Installation: | Recessed Install By Spring |
| IP And IK Rating: | IP67 And IK08 | Warranty: | 2 Years |
| High Light: | led underground light,in ground garden lights |
||
FB2XCR0657, FB2XCR0618 ( RGB ) 6 * 2W 13W 18W IP67 Symmetrical Strong Up Light LED Recessed Wooden Floor Light with External remote IP67 LED Driver or Internal LED Driver
Features and Benefits:
1. 6 * 2W Osram or other world well known brand LED with Symmetrical Strong Up Light output;
2. Lumen output around max 1000lm in total;
3. Front plate made of 316 stainless steel and housing made of aluminum;
4. With remote external IP67 LED Driver, or Internal LED driver can be available;
5. Outdoor rated IP67 design
6. Full area Glass pressure capacity 1687KGs;

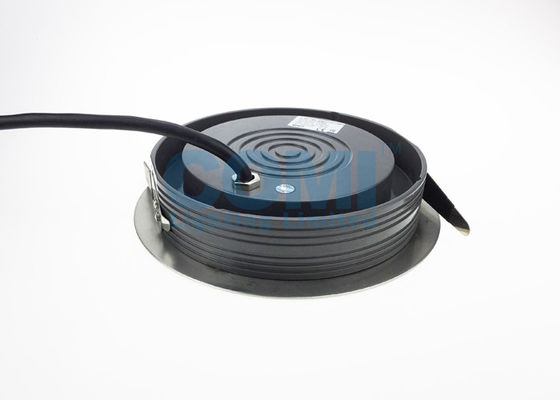

7. Cut hole diameter 156mm and install by spring;
8. Whole in one lens for lens system for easy replaceable lens for different angle;
Material specifications:
| Housing: | 12# Die-casting aluminum grey powder coated T=60-80µm. Adhesion of ISO class 1/ASTM class 4B. |
| Front Plate: | Stainless steel SUS 316L# |
| Glass pressure capacity | Full area=1687kgs |
| Glass | Step tempered glass. T=8mm |
| Cable gland: | IP-67 PG-9 PVC |
| Gasket: | Moding shaped silicone seal |
| PCB | Excellent heat conductivity aluminum, coefficient of heat Conductivity≥2.0w /mk |
| LED: | Osram or Cree SMD Low Power LED |
| Operating temperature: | -20℃~40℃ |
| Power cable: |
H05RN-F 2X1.0mm2 L=0.5m(low voltage)
H05RN-F 3X1. 0mm2 L=0.5m(high voltage)
H05RN-F 5X0.5mm2 L=0.5m(for 24VDC RGBW)
With Waterproof Connector
|
| Mounting sleeve | No |
Technical Information:
| Item No. | Light source |
Degree
(Θ 1 / 2 )
|
Input
voltage
(V)
|
Typical
operating
current (mA)
|
Typical
consumption
(w)
|
Typical
luminance
(lm)
|
IK rate |
|
FB2XCR0657
|
6×2W | 20 |
24VDC Or
120 /240
|
24V=541
120V=111
240V=64
|
24V=13
1 20V=13.5
240V=13.7
|
Cool white=956
Warm white=783
|
08 |
|
FB2XCR0618
|
6×2W
RGB 3IN1
Full color
|
30 | 24VDC |
R=221
G=257
B=253
|
17.5
|
507 | 08 |
| Item No. | Light source |
Degree
(Θ 1 / 2 )
|
Input
voltage(V)
|
Typical operating
current (mA)
|
Typical
consumption(w)
|
Typical
luminance (lm)
|
IK rate |
|
FB2XCR0657
FB2XCS0657
|
6×2W | 20 |
24VDC Or
120 /240
|
24V=541
120V=111
240V=64
|
24V=13
1 20V=13.5
240V=13.7
|
Cool white=956
Warm white=783
|
08 |
|
FB2XCR0618
FB2XCS0618
|
6×2W
RGB 3IN1
Full color
|
30 | 24VDC |
R=221
G=257
B=253
|
17.5
|
507 | 08 |
|
FC2XCR0657
FC2XCS0657
|
6×2W | 45/35 |
24VDC Or
120 /240
|
24V=541
1 20V=111
240V=64
|
24V=13
1 20V=13.5
240V=13.7
|
Cool white=757
Warm white=613
|
08 |
|
D2XCR3641
D2XCS3641
|
36×Single Color | - |
24VDC
240
|
24V=100
240V=29
|
24V=2.4
240V=3.1
|
CCool white=51
Warm white=42
|
08 |
|
D2XCR4843
D2XCS4843
|
48×RGBW
(12R 12G 12B 12W)
|
- |
24VDC
120/240
|
R=35 G=35
B=36 W=35
|
3.4 | 24 | 08 |
