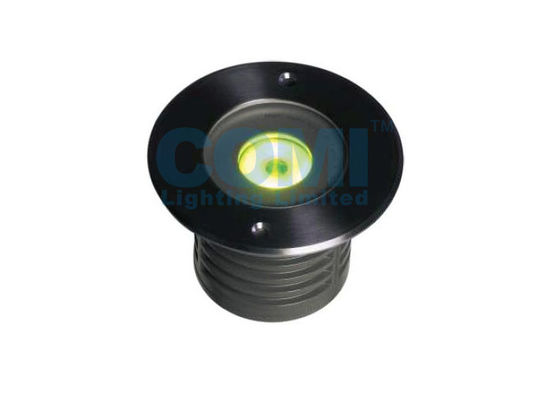

A2CD0120 24VDC RGBW 4- In-1 LED Outdoor LED Underground Lights, RGBW LED Exterior Inground Lighting

A2CD0120 24VDC RGBW 4- In-1 LED Outdoor LED Underground Lights, RGBW LED Exterior Inground Lighting
A2CD0120 24VDC RGBW 4- In-1 LED Outdoor LED Underground Lights, RGBW LED Exterior Inground Lighting A2CD0120 24VDC RGBW 4- In-1 LED Outdoor LED Underground Lights, RGBW LED Exterior Inground Lighting A2CD0120 24VDC RGBW 4- In-1 LED Outdoor LED Underground Lights, RGBW LED Exterior Inground Lighting A2CD0120 24VDC RGBW 4- In-1 LED Outdoor LED Underground Lights, RGBW LED Exterior Inground Lighting A2CD0120 24VDC RGBW 4- In-1 LED Outdoor LED Underground Lights, RGBW LED Exterior Inground Lighting

Large Image :  A2CD0120 24VDC RGBW 4- In-1 LED Outdoor LED Underground Lights, RGBW LED Exterior Inground Lighting

Product Details:
Place of Origin: Guangdong China
Brand Name: COMI LIGHTING
Certification: CE, ROHS
Model Number: A2CD0120
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: Inner box and outer carton
Delivery Time: 5~15 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100,000 pcs per month
Contact Now

A2CD0120 24VDC RGBW 4- In-1 LED Outdoor LED Underground Lights, RGBW LED Exterior Inground Lighting

Description
Item Type: 4 In 1 RGBW LED Inground Light LED Brand: Cree, Or Edison
LED Type: 4-in-1 RGBW LED Power: 4~6W
Working Voltage: 24VDC Front Ring: Stainless Steel SUS 316L#
Housing: Die-casting Aluminum IP And IK Rating: IP67 And IK07
High Light:

led underground light

,

led buried light

A2CD0120 24VDC 6W 4 - in- 1 RGBW 4 color mixing LED Inground Light Outdoor Rated IP67







Features and Benefits:

1. 4- in-1 RGBW 4 color mixing makes the light color more bright and blinding;

2. Hard chromeplated stainless steel SUS 316L# front ring and die-casting aluminum lamp housing;

3. 8mm thickness step tempered glass Light windown,2578KGs full area glass pressure capacity;

4. Outdoor rated IP67 design







Material speicification:

Housing: 12# Die-casting grey powder coated aluminum.
                T=60-80µm Adhesion of ISO class 1/ASTM class 4B
Front ring: Hard chromeplated stainless steel SUS 316L#
Light Window: Step tempered glass.T=8mm
Glass pressure capacity: Full area=2578kgs
Lens: Symmetrical optical lens, efficiency≥85%
Cable gland: IP-68 PG-9 PVC
Gasket: Molding shaped silicone seal
LED: Cree,or Edison federal RGBW 4in1 LED
LED Driver: Constant Voltage Input,Constant Current Output
Operating temperature: -20℃~40℃
Mounting sleeve: ABS 015#
Power cable: H05RN-F 5X0.5mm² L=0.5m




Technical Information:

Item No. Light source
Degree
(Θ 1 / 2 )
Input
voltage
(V)
Typical
operating
current (mA)
Typical
consumption
(w)
Typical
luminance
(lm)

IK

rate
A2CD0120 1×4W
RGBW 4in1		 30°
24VDC
255
6
154
 07



Notes:
1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue,RGB and etc;
2. Specification and availability are subjected to change without notice.
3. For more detail specification in PDF, please contact us separately.





Dimensional Drawing (Units:mm)


A2CD0120 24VDC RGBW 4- In-1 LED Outdoor LED Underground Lights, RGBW LED Exterior Inground Lighting 0



A2CD0120 24VDC RGBW 4- In-1 LED Outdoor LED Underground Lights, RGBW LED Exterior Inground Lighting 1
A2CD0120 24VDC RGBW 4- In-1 LED Outdoor LED Underground Lights, RGBW LED Exterior Inground Lighting 2
