Product Details:
|
| Item Type: | COB LED Landscape Spotlights | LED: | 6W Or 10W COB LED |
|---|---|---|---|
| Power (W): | 24V=6.5, 120V=7.6, 240V=7.6 | Luminance (LM): | Cool White=409, Warm White=349 |
| Material: | Aluminum | Working Votlage: | 24VDC Or 110 - 240VAC |
| Installation: | By Round Base | IP Rating: | IP65 |
| High Light: | led garden spotlights,gu10 garden spike spotlights |
||

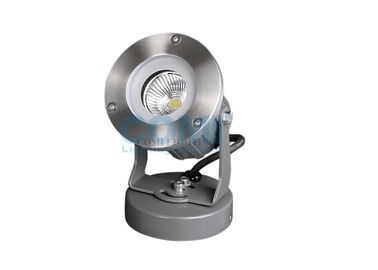

R3FUM0126 24VDC or 110 - 240VAC 1 * 6W or 10W COB LED High Luminance Landscape Spotlights Install by Round Base Rated IP65 Waterproof
Features and Benefits:
1. Vertical and horizontal direction angle adjustable;
2. Cree or BRIDGELUX COB type power LED as light source with high lumen output
3. IP65 design for outdoor lighting
4. Dimming control by DALI, PWM, 0 -10V
Material specifications:
| Housing | 12 Die-casting grey powder coated aluminum . T=60-80μm. Adhesion of ISO class 1/ASTM class 4B |
| Front Cover | Stainless steel (SUS 304 , 316 optional) |
| Bracket | Powder coated aluminum |
| Glass | Tempered glass. T=4mm |
| Reflector | Optical Reflector efficiency≥90% |
| Cable gland | IP-68 PG-9 PVC |
| Gasket | Tooling shaped seal |
| LED | Cree or BRIDGELUX COB type power LED |
| PCB | Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
| Driver | Constant current output |
| Operating temperature | -20℃~40℃ |
| Power cable | 24V:L=2.0M H05RN-F 2×1.0mm^2 100/240V: L=2.0M H05RN-F 3×1.0mm^2 |
| Spike | PVC |
| Mounting base | 12 Die-casting grey powder coated aluminum |
General Information:
| Item No. | Light source | Degree (Θ 1 / 2 ) | Input voltage(V) | Typical operating current (mA) | Typical consumption(w) | Typical luminance (lm) | IK rate |
R3FUB0126 (Ground Spike) | 1×6W BRIDGELUX COB | 40 | 24VDC Or 120 /240 | 24V=270 120V=110 240V=60 | 24V=6.5 120V=7.6 240V=7.6 | Cool white=409 Warm white=349 | 04 |
R3FUM0126 (Round Base) | 1×6W BRIDGELUX COB | 40 | 24VDC 120/240 | 24V=270 120V=110 240V=60 | 24V=6.5 120V=7.6 240V=7.6 | Cool white=409 Warm white=349 | 04 |
