Product Details:
|
| Item Type: | Class-A Series High Brightness Output LED Strip | LED: | High Brightness Output 5050 RGB 3 - In - 1 LED |
|---|---|---|---|
| LED Quantity: | 60pcs LED Per Meter | Color: | RGB 3 - In - 1 Full Color |
| Working Voltage: | 24VDC (or 12VDC) | Power Consumption: | Max 14.4 W/M (Actual 12W/M) |
| PCB: | Standard 12mm Width White FPC (or 10mm) | IP Rating: | IP20 Nonwaterproof |
| Warranty: | 3 Years | Dimming: | It Is Dimmable |
| High Light: | led tape light,led outdoor strip lights |
||

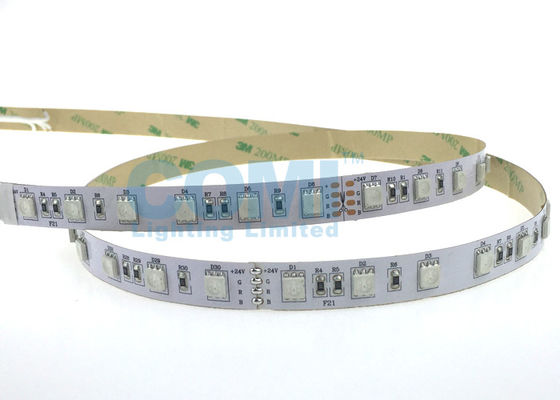

CL-SS5050RGB60-P1-HO 24VDC or 12VDC 60LEDs / M 14.4W / M 5050 RGB 3 - in - 1 LED High Brightness Output Flexible Strip Lights adopts 12MM FPC
CL-SS5050XX60-P1-HO is an 12mm wide flexible copper strip and comes with low voltage 20cm RGB/+ or red&black power feed cable, it adopts 60pcs 3 chips-in-1 5050SMD LED per meters and consumes only max 14.4W per meter. For custom lengths available from 50~5000mm,max run length of 5meters. It is designed rated IP20 for indoor or dryp locations use.
The LED tape light offers a simplified installation to the smooth finish surfaces by 3M adhesive on the back of the strip , or to rough surfaces by mounting clip(order separately) .Use plug-in flexible connectors or fast connectors (Please inquire separately) for making turns and custom configurations.
CL-SS5050XX60-P1-HO provides both RGB and single color for options:
(1) RGB version CL-SS5050RGB60-P1-HO provides dynamic color effects Over 16 million possible colors with red, green and blue LEDs when Combination of RGB LED Controller (or DMX controller) . It is fantastic LED linear tape lighting solution to decorate your environments.
(2) Single color version CL-SS5050XX60-P1-HO LED linear tape light is widely for use in many discreet locations and architectural enhancements, letter sign, coving, under/above cabinet, back lighting, and residential & commercial spaces
Note:
LED Linear ribbon is also named as flexible LED strip, or LED Tape light,LED Strip light, LED Linear strip or LED Soft strip, and etc.
Applications:
Indoor or dry location use only,cannot use in damp or wet locations.
● RGB version:decorative lighting for environments where need colorful lighting changing effect.
Under/above cabinet, cove lighting or accent toe kicks, behind sheer curtains, step, entertainment, display, night clubs,
molding accent, media room
● Single color: discreet locations and architectural enhancements,coving, under/above cabinet, back lighting
Technical Specification:
| Working Voltage: | 24VDC( or 12VDC) |
| Power: | Max 14.4W/meter |
| Light Source: | 3Chips-in-one 5050 SMD LED Diode |
| LED Number: | 60LEDs/m |
| Typical Lumens(CW Color): | Up to High output1440lm/m |
| CRI(warm white or white): | Ra>80 (Ra>90 are available upon request) (For white color only) |
| View Angle: | 120° |
| Average LED Lifespan: | 45,000hours |
| Light Color Options: | RGB Single Color [ CW(cool white), NW(Neutral White), WW (Warm White), Amber(Amber), RD(Red), GN(Green), BL(Blue),YL(Yellow) and etc.] |
| Working Temperature: | -30℃~60℃ |
| Humidity: | 0~90% relative humidity |
| Dimension(L×W×H): | L×W12(or 10)×2.2mm (L: Max. 5meters per standard reel) |
| IP Rating: | IP20 |
| Driver recommended: | Max 72W for standard 5meters reel |
General Information:
| Part Number | LED Type | LED No. | Operating Voltage | Power (W/m) |
Luminous Flux (lm/LED) |
FPC width (mm) |
Max. run length (m) | View Angle | IP Rating | CRI |
| CL-SS5050RGB60-P1-HO |
5050 |
60LEDs/m | 24VDC (Or 12V) |
Max. 14.4W/m | / | 12mm | 5meters | 120° | IP20 | / |
| CL-SS5050XX60-P1-HO |
5050 3-in-1 LED |
60LEDs/m | 24VDC (Or 12V) |
Max. 14.4W/m |
20~25 |
12mm | 5meters | 120° | IP20 | CRI>80 |
Notes:
1."XX" in part number stands for the LED emitting color,Kelvin or Wave length for above LED emitting color:
(1) Warm white (WW, 3000~3500K[standard] or 2500~3000K), Neutral White (NW, 4000~4500K), Cool White (CW, 6000~6500K);
(2) Red(RD,625~630nm), Green (GN,520~525nm), Blue(BL,465~470nm), Yellow (YL, 588~592nm);
2.CRI>80 or 90+ are available;
3. The lumen output of LED is inversely proportional to CRI, the higher CRI is, the lower lumen output of LED is;
4.Specification and availability are subjected to change without notice；
5. For rating IP65,IP67,IP68 versions , please inquire us separately.(what is name methods for difference IP rating LED Strip in COMI Lighting?
