| MOQ: | 40Meters |
| Standard Packaging: | 40M/Roll, 15kg/CTN, CTN Size: 33*33*17cm |
| Delivery Period: | 3~16Days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 100000 Meters/month |
F15DMX-XX 24Vdc IP68 Waterproof IK08 DMX 5050 LED Neon Flex Strip Lights with 8 Pixel & 24Channels per Meter and Flat shape Luminous surface
Neon-DMX is a programmable Pixel DMX RGB neon led strip with 8pixel per meter consists of 56pcs tri-chip 5050 RGB LED per meter, With WS2821 IC in the circuit of the strip enables it compatible with direct DMX signal and don't required any DMX converter/decoder device. It offers Colorful lighting changing effect Over 16 million possible colors .With smart accessories kits, controllers and IP68 Designed, Neon-DMX can accommodate both interior and exterior environments and meet various color changing effects for different applications.
Features and Benefits:
1. LED Chips: SMD5050 Tri-chip LED as its light source, 18~22LM/LED (White Color)
2. WS2821 IC, Signal Parallel Protected, DMX512 Signal Compatible,DMX Address Writable
3. 8pixel/meter, Each pixel of LED can be programmable or writable
4. By using our specialized control system, each output can take 512 pixels (1536 Channels)
5. Programmable to various color changing effects to cater to different applications
6. First-class eco-friendly UV-resistant PVC material
7. Dome and flat surface,Ivory White diffused PVC luminous surface, continuous and uniform illumination, no LED dot or dark spot
8. Horizontal direction bendable and min. bending diameter 12cm
9. Easy to be installed by smart accessories, can be cut and reconnected (connection accessories available):
(1) Every 4.92"/12.5cm(7LEDs) can be cuttable at regular intervals without damage the rest of neon strip
(2) Can be re-connected by smart connectors or glue.

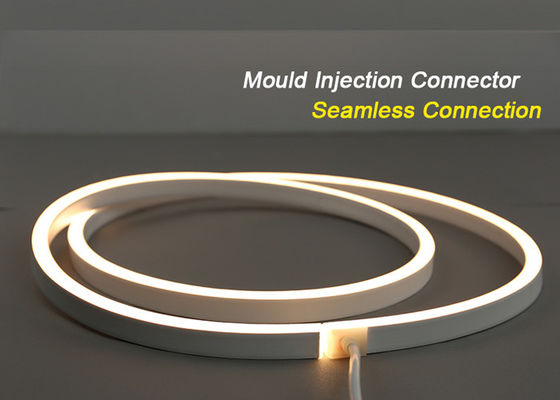

10. Seamless joint connector provided to make continuous run length
11. IK08 and Protection Rating IP68 (All joints and connectors must be hermetically sealed to achieve IP68)
12. 2 Years warranty
Important Note: F15 and F21 series Neon LED strip is Horizontal bendable only,CAN NOT bend in vertical direction.
Technical Specification:
| Part Number | NF15DMX |
| LED Chip | Tri-chip-in-1 SMD5050 LED |
| Material | PVC |
| Working Voltage | 24VDC |
| Power Consumption | 12W/Meter |
| LED Quantity (pcs/m) | 56pcs/meter |
| Min. Cutting Unit and Length | 7LEDs (4.92"/12.5cm) |
| Max Length(Meters) | 49.2'/15m |
| Protection Rating and IK Class | IP68 Waterproof and IK08 |
| Min. Bending | Dia 12cm |
| Bending Direction | Horizontal |
| Signal Input | DMX512 |
| Ambient Temp | -30°C to +45°C |
Applicaitons:
1.Especially suitable for indoor and outdoor architectural outline decorations, walkway and park guiding-line;
2. lighting system, and landscaping;
3. Ideal for bridge, sculpture, building contour, and board fringe illuminating decoration.
Professional Smart Accessories:
LED Neon Flex BU(Business Unit):
Packing:
1. Standard Packing: Plastic reel+ Outer carton. 40M/Roll, 15kg/CTN, CTN Size: 33*33*17cm
2. Customize packing is available.
Neon Flex LED Strip Family Products:
| Product Series |
Part Number | Luminous Surface shape |
Support DMX, PWM,or DALI |
LED Type |
Color Options | LED Q'ty (pcs/m) |
Input Volt (vdc) |
Power (W/M) |
Mini Cutting Unit |
Mini Cutting Length |
Max Lenth (M) |
Bending Direction |
Min. Bending Dia. (cm) |
| Topview Series |
F16A-120-XX | Flat | PWM, DALI |
3528 | Single Color |
120 | 24 | 9 | 12LEDs |
3.94" /10cm |
20 | Vertical | 12 |
| F16A-144-XX | Flat | PWM, DALI |
3528 | Single Color |
144 | 24 | 10 | 12LEDs |
2.5" /8.33cm |
20 | Vertical | 12 | |
| Archipro Series |
F15A-A-XX | Flat | PWM, DALI |
5050 | B/G/ Y/W |
60 | 24 | 12 | 6LEDs |
3.94" /10cm |
20 | Horizontal | 8 |
| F21A-A-XX | Arched | PWM, DALI |
5050 | B/G/ Y/W |
60 | 24 | 12 | 6LEDs |
3.94" /10cm |
20 | Horizontal | 8 | |
| F15A-B-XX | Flat | PWM, DALI |
5050 | R/O/A | 60 | 24 | 7.2 | 10LEDs |
6.6" /16.67cm |
20 | Horizontal | 8 | |
| F21A-B-XX | Arched | PWM, DALI |
5050 | R/O/A | 60 | 24 | 7.2 | 10LEDs |
6.6" /16.67cm |
20 | Horizontal | 8 | |
| F15A-C-XX | Flat | PWM, DALI |
3528 | R/O/A/ G/B/W |
72 | 24 | 5 | 12LEDs |
6.6" /16.67cm |
20 | Horizontal | 8 | |
| F21A-C-XX | Arched | PWM, DALI |
3528 | R/O/A/ G/B/W |
72 | 24 | 5 | 12LEDs |
6.6" /16.67cm |
20 | Horizontal | 8 | |
| F15A-D-XX | Flat | PWM, DALI |
3528 | R/O/A/ G/B/W |
72 | 12 | 5 | 6LEDs |
3.3" /8.33cm |
10 | Horizontal | 8 | |
| F21A-D-XX | Arched | PWM, DALI |
3528 | R/O/A/ G/B/W |
72 | 12 | 5 | 6LEDs |
3.3" /8.33cm |
10 | Horizontal | 8 | |
| Multi-RGB Series | F15RGB | Flat | PWM, DALI |
5050 | RGB | 60 | 24 | 12 | 10LEDs |
6.58" /16.67cm |
10 | Horizontal | 8 |
| F21RGB | Arched | PWM, DALI |
5050 | RGB | 60 | 24 | 12 | 10LEDs |
6.58" /16.67cm |
10 | Horizontal | 8 | |
| Dynamic DMX (8pixel/m) |
N15DMX | Flat | DMX | 5050 | RGB | 56 | 24 | 12 | 7LEDs |
4.92" /12.5cm |
20 | Horizontal | 12 |
| F21DMX | Arched | DMX | 5050 | RGB | 56 | 24 | 12 | 7LEDs |
4.92" /12.5cm |
20 | Horizontal | 12 |
|
|
