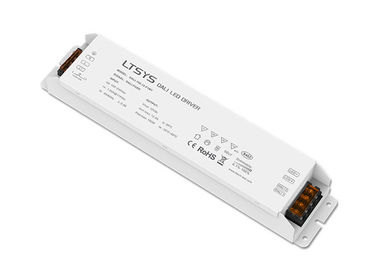

12VDC 150W Output DALI / PUSH DIM CV DALI Dimmable Driver 110 ~ 240Vac Input

12VDC 150W Output DALI / PUSH DIM CV DALI Dimmable Driver 110 ~ 240Vac Input

MOQ: 10PCS
Standard Packaging: 278×59×42mm(L×W×H), 800g
Delivery Period: 3 ~ 12 DAYS
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 100000PCS PER MONTH
Detail Information
Place of Origin
Guangdong China
Brand Name
LTSYS-Series
Certification
CE, ROHS
Model Number
CL-DALI-150-12-F1M1
Item Type:
DALI Dimmable Driver
Dimming Interface:
DALI (IEC62386), Push DIM
Input Voltage Range:
100-240Vac ±10%
Power Factor:
PF>0.99/115Vac , PF>0.95/230Vac
Efficiency:
>91%
Output Current:
Max. 12.5A
Output Voltage:
12Vdc
Output Power:
Max. 150W
Size:
273×57×37mm(L×W×H)
Warranty:
5 Years
Minimum Order Quantity:
10PCS
Packaging Details:
278×59×42mm(L×W×H), 800g
Delivery Time:
3 ~ 12 DAYS
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
100000PCS PER MONTH
High Light:

led dimmable driver

,

led dmx driver

Product Description

CL-DALI-150-12-F1M1 12VDC 150W Output DALI / PUSH DIM CV DALI Dimmable Driver 110 ~ 240Vac Input







COMI LIGHTING's Intelligent dimmable led driver have excellent performance:

  • Fully Digital circuit design, excellent performance and long working life
  • PWM digital dimming, maintain the best LED’s CRI(color rendering index)
  • DALI bus standard: IEC62386,standard DALI logarithmic dimming curve
  • 60000:1 wide dimming range, 0-100% full dimming range,LED start at 0.1% possible
  • Power factor>0.99, Efficiency>86%, THD(Total Harmonic Distortion)<10%
  • Short circuit / Over-temperature / Over load protection
  • Current consistent in multi LED driver working, balanced light
  • Class 2 security isolation power supply
  • Compliant with SELV(Safety Extra Low Voltage) standard





Features and Benefits:

1. Dimming interface: DALI, Push Dim
2. PWM digital dimming, no alter LED color rendering index.
3. Standard DALI logarithmic dimming curve.
4. Dimming range from 0-100%, LED start at 0.1% possible.
5. Power factor > 0.99, Efficiency > 91%.
6. Short circuit / Over-heat / Over load / Over voltage protection.
7. DALI bus standard: IEC62386-101, 102, 207.
8. Compliant with Safety Extra Low Voltage standard.
9. Suitable for indoor environments.





Main Charicteristics:

Dimming Interface DALI (IEC62386), Push DIM
Input Voltage Range 100-240Vac ±10%
Frequency 50/60Hz
Input Current 115Vac≤1.95A, 230Vac≤0.8A
Power Factor PF>0.99/115Vac , PF>0.95/230Vac, at full load
THD <5% at 115Vac, <8% at 230Vac, at full load
Efficiency >91%
Inrush Current(typ.) Cold start 60A at 230Vac
Control Surge Capability L-N: 1kV L/N-G: 2kV
Leakage Current I/P-O/P: <0.5mA/230Vac, I/P-GND: <0.75mA/230Vac
Output Current Max. 12.5A
Output Voltage 12Vdc
Output Voltage Range 12Vdc ±0.5Vdc
Ripple & Noise ≤200mV
Output Power Max. 150W
Output Power Range 1~150W
Overload Power Limitation ≥102%~125%
Dimming Range 0~100%, LED start at 0.1% possible.
PWM Frequency 2KHz~4KHz
Working Temperature tc: 85°C ta: -30°C ~ 60°C
Working Humidity 20 ~ 95%RH, non-condensing
Storage Temp., Humidity -40 ~ 80°C, 10~95%RH
Temp. Coefficient ±0.03%/°C(0-50°C)
Vibration 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
Dimension 273×57×37mm(L×W×H)
Packing 278×59×42mm(L×W×H)
G.W. 790g±10g







Protections:

Over-heat Protection Shut down the output when PCB temp.≥110°C, auto recovers when temp. back to normal
Over Voltage Protection Shut down the output when non-load voltage ≥13~18V, re-power on to recover after fault condition is removed.
Over Load Protection Shut down the output when current load≥102% ~125%, auto recovers when the load is reduced
Short Circuit Protection Shut down automatically if short circuit occurs, auto recovers after faulty condition is removed





Safety and EMC:

Withstand Voltage I/P-O/P: 3750Vac I/P-GND: 1800Vac
Isolation Resistance I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards IEC/EN61347-1, IEC/EN61347-2-13
EMC Emission EN55015, EN61000-3-2 Class C, IEC61000-3-3
EMC Immunity EN61000-4-2,3,4,5,6,8,11, EN61547







12VDC 150W Output DALI / PUSH DIM CV DALI Dimmable Driver 110 ~ 240Vac Input 0





Product Size:



12VDC 150W Output DALI / PUSH DIM CV DALI Dimmable Driver 110 ~ 240Vac Input 1









Typical Wiring Diagram:

12VDC 150W Output DALI / PUSH DIM CV DALI Dimmable Driver 110 ~ 240Vac Input 2



12VDC 150W Output DALI / PUSH DIM CV DALI Dimmable Driver 110 ~ 240Vac Input 3
