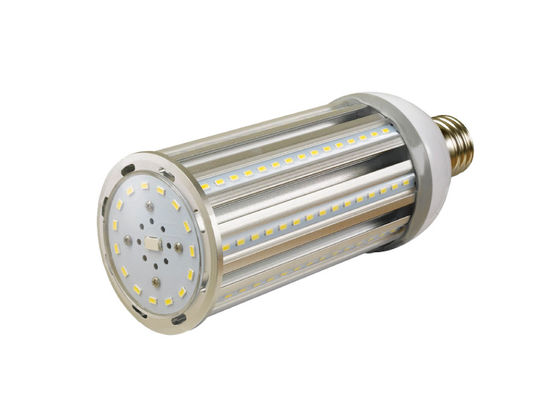

Professional 110 - 277V 45W LED Corn Light For High / Low Bay Lamp Up to 125LM / W

Professional 110 - 277V 45W LED Corn Light For High / Low Bay Lamp Up to 125LM / W

MOQ: 24pcs
Standard Packaging: Inner box+outer carton, 12pcs/14KGs/395*266*612mm
Delivery Period: 3~15days
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 100000 pcs per month
Detail Information
Place of Origin
Guangdong China
Brand Name
COMI LIGHTING
Certification
UL, ETL, DLC, Lighting facts, CE
Model Number
CL-RL-045W-A-XX, CL-RL-045W-B-XX
Item Type:
45W LED Corn Bulb Lamp
LED Brand:
Samsung, Osram, Epistar
LED Type&Q'ty:
135pcs 5630 Or 2835SMD LED
CRI (Ra):
Ra>80
Luminous Flux (LM):
5780LM
Power:
45W
Light Efficiency:
>125LM/W
PF:
>0.9
LED LM80:
Yes, It Is Approved
Lamp Base:
E39/E40, Or E26/E27
IP Rating:
IP64
Warranty:
5 Years
Minimum Order Quantity:
24pcs
Packaging Details:
Inner box+outer carton, 12pcs/14KGs/395*266*612mm
Delivery Time:
3~15days
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
100000 pcs per month
High Light:

led corn bulb

,

led corn street light

Product Description

CL-RL-045W-A-XX, CL-RL-045W-B-XX  110 - 277VAC 45W 5780LM E39 / E40 /E27 LED Corn Light CRI 80 Replace120W CFL or 150W HPS, 5 years warranty







Features and Benefits:

● 45W LED Corn Light,up to 125LM/W.
● 120-150W HID Replacement Post Top Lamp
● Excellent Material for lighting fixture:
   (1)Original Samsung 5630 0.3W LED;

   (2)Japanese Rubycon Capacitor for power supply;
   (3)Japanese JEA connector,more safer and reliable;
   (4)High thermal conductive PCB and 6030 Aluminum heat sink;
● 80% more energy saving compared with traditional lamps.
● More than 1,000,000 times Reliability Test
● With 360 Degree Beam Angle design to make the light radiating uniformly to the ground.
● Can be used in Enclosed Luminaires.
● Easy replacement, LED corn Bulb could directly replace the traditional E40 or E27 Base CFL, HPS, HM in IP65 or IP67 fixtures.
● High CRI Ra>80.
● High Luminous Efficiency, more than 110LM/W.
● Long Lifespan of 10years, with 5Years warranty.
● cETL,UL,DLC,Lightingfacts,TUV,CE,RoHs approved







Technical Specification:

●Power Consumption:45W
●Input Voltage: 100-277VAC, 50/60Hz
●PF>0.95
●Recommended Replaced Lamp:120W CFL,150W HPS
●Light Source: 135pcs Samsung 0.3W 5630 SMD LED or Epistar 2835 SMD LED
●Luminous Flux: 5940LM±5% (5630 LED) , 5700LM±5% (2835 LED) ,
●CCT:WW(3000~3500K), NW(4000-4500K),or CW(6000-6500K)
●CRI:Ra>80
●Beam Angle: 360°
●Lifetime: >35,000Hours
●Base Options: E39,E40 (E26 E27)
●Material: MCPCB+ Aluminum Heatsink
●Transparent Cover for Side LEDs and Bottom LEDs
●Packing: Net Weight 935g/piece, 12pcs/carton,14KGs/carton
●Size: ¢93*265 MM
●IP Rating:IP64
●Total Harmonic Distortion:≤9 %
●Body Temperature: <55 °C @Ta=25 °C
●Working Humidity:10%-90%
●Storage temperature: -40 to 70°C
●Operating temperature: -10 to 45°C







General Information:

Part Number Power
(W)
Input Voltage
(VAC)
CCT
(K)
LED Type LED Q'ty
(pcs)
CRI
(Ra)
Luminous
Flux(lm)
PF LED
LM80
IP
Rating
Warranty
CL-RL-045W-A-XX 45W AC100-277V,
50-60Hz
2700-7000K 0.3W Samsung
5630SMD LED
135pcs Ra>80 5940lm±5% >0.9 Yes IP64 5 Years
CL-RL-045W-B-XX 45W AC100-277V,
50-60Hz
2700-7000K 0.3W Epistar
2835 SMD LED
135pcs Ra>80 5700lm±5% >0.9 Yes IP64 3 Years

Notes:
1.Colors options: Warm white (WW, 3000~3500K[standard], or 2700-3000K), Neutral White (NW, 4000~4500K, 4800~5300K), Cool White (CW, 6000~6500K);
2.Standard CRI80+ and CRI90+ is optional;
3.Please contact us to get product sepecification.Thanks!
4.Specification and availability are subjected to change without notice
