| MOQ: | 10pcs |
| Standard Packaging: | 1piece/12KGs(Volume Weight)/ L490*W450*H280mm, |
| Delivery Period: | 3~15days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 100000 pcs per month |

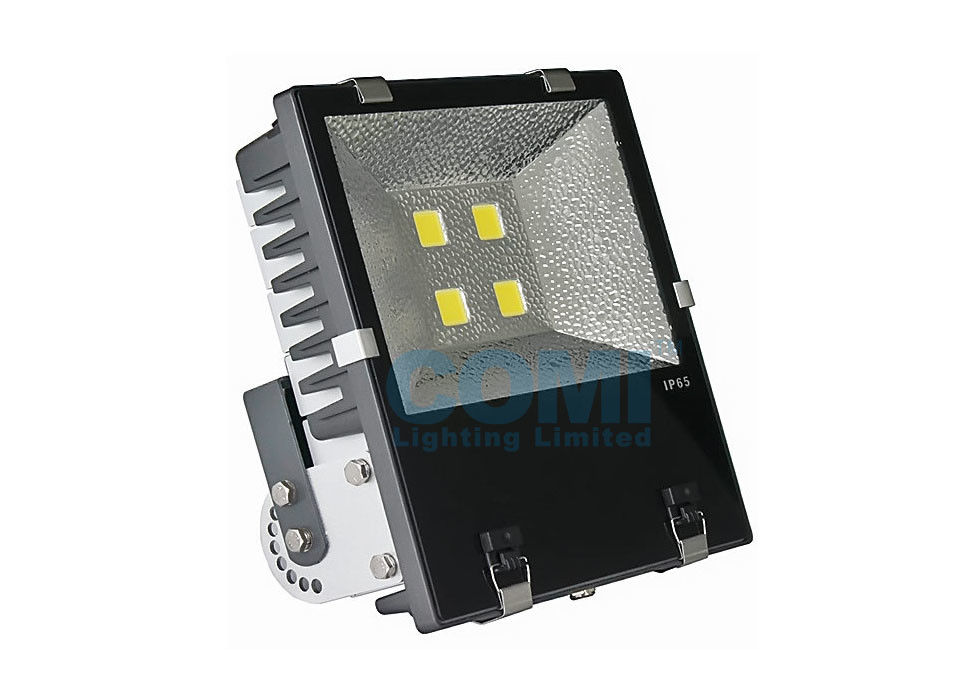

CL-TG001-200W 200W Bridgelux LED Tunnel Flood Lights 19459LM with100 - 277VAC Mean Well Driver
Features:
1. Adopts 4pcs 50W High brightness and High CRI Brigdelux integrated chip LED as its light source;
2. Eco-friendly: does not contain mercury, lead and other harmful substances,No pollution to the environment;
3. Green Products: No infrared and ultraviolet.
4.The lamp body is made of High thermal conductivity aluminum with excellent heat dissipation ability to ensure light with small decline during long period.
5. Specially tempered safety glass and waterproof structure, lamp protection grade reaches IP65;
6. Powered by Meanwell DC constant current driver(included), no glare;
7. High power factor.
8. Simplified installation: With special install 180degree angle adjustable angle.
Specification:
| Part Number | CL-TG001-200W | ||
| Rating Power(W) | 200W | ||
| Power Consumption | 200±15W | ||
| LED Driver Brand | Mean Well | ||
| Input Voltage | 100-240VAC | ||
| Working Current | DC 6000mA | ||
| LED Source | Epistar 35 mil /BRIDGELUX 45 mil (Integrated Chip LED) |
||
| Flux(lm) | Warm White | Natural White | Cool White |
| 15000-17000lm | 18000-20000lm | 19000-21000lm | |
| CRI(Ra) | ≥70 or ≥80 | ≥70 or ≥80 | ≥70 or ≥80 |
| Color Temperature | 2700~3300K | 4000~4500K | 6500~7000K |
| Power Factor | ≥0.9 | ||
| Light Effect | ≥0.9 | ||
| Beam Angle | 120Degree | ||
| IP Rating | IP65 | ||
| Working Temperature & Relative humidity |
-35℃~60℃~/ R.H.≤85% | ||
| Material | Aluminum +Tempered glass | ||
| Tj | <65℃±10%(Ta=25℃) | ||
| LED Lifespan on Average | 50000hours | ||
| Wire lead |
1.0mm² three core wires, L=0.5Meter . (Brown wire-L,Blue wire-N,Yellow/Green-G) |
||
| Product Size | L383*W335*188mm | ||
| Net Weight | 8.3KGs/piece | ||
Product Details:
NOTE:
Please download the above test report to view large picture clearly.
Inner box: L470*W420*H260mm, G.W.:9.5KGs/piece
Outer box(Carton):L856*W486*H280mm, 2pcs/carton, 19KGs
Installation:
Important Notes:
1. There are 3 wires in input cable for the lighting fixture:Red--live wire,Blue--null line, Yellow--ground line;
2. The lighting fixture must be installed by a professional electrician;
3. When connect the wires to the driver, please make sure to take waterproof measures;
4. The lamps can not be used for any violation of fire prevention law;
5. Please make sure to cut off the power before installation, maintenance and repair;
6. Please follow the belows steps to install the lighting fixture, and make sure the screws are fixed firmly and keep the lighting fixture balance:
Installation steps:
1. Please drill 3 holes Diameter Φ10mm and depth 100mm on mounting place:
2. Please fix the M8*80mm expansion bolt into the holes and make sure they are firmly mounted:
3. Please install the lighting fixture onto expansion bolt of the mounting surface and make sure the screws are screwed firmly.
4. Please adjust the lighting fixture at the right angle and fasten up. Then connect the power to the lighting fixture. Then the lighting fixutre is finished installation.
Applications:
Applicable to the building facade, square, billboards, leisure sports field, stage, rockery, bridge, building facades and outdoor landscape lighting etc.
|
|
