| MOQ: | 10pcs |
| Standard Packaging: | 1piece/10KGs(Volume Weight)/ L460*W405*H265mm, |
| Delivery Period: | 3~15days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 100000 pcs per month |

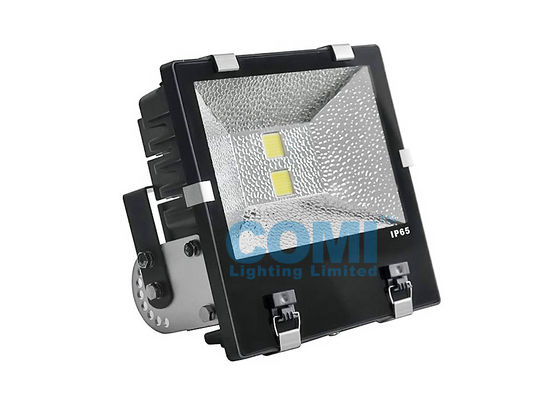

CL-TG001-120W 120W Wide Beam Angle LED Flood project Lights 11539LM PF > 0.97 with 110 - 277VAC Inpput IP67 Mean Well LED Driver
Features:
1. Adopts 2pcs 60W High brightness and High CRI Brigdelux integrated chip LED as its light source;
2. Raindrop surface reflector enable the output light at Multi angle refraction, this helps the luminaire with more higher light efficiency and more even light output;
3. The 180degree angle adjustable bracket made of stainless steel.
4. Eco-friendly: does not contain mercury, lead and other harmful substances,No pollution to the environment;
5. Green Products: No infrared and ultraviolet.
6.The lamp body is made of High thermal conductivity aluminum with excellent heat dissipation ability to ensure light with small decline during long period.
7. Specially tempered safety glass and waterproof structure, lamp protection grade reaches IP65;
8. Powered by Meanwell DC constant current driver(included), no glare;
9. High power factor.
10. Simplified installation.
Specification:
| Part Number | CL-TG001-120W | ||
| Rating Power(W) | 120W | ||
| Power Consumption | 120±10W | ||
| LED Driver Brand | Mean Well | ||
| Input Voltage | 100-240VAC | ||
| Working Current | DC 3600mA | ||
| LED Source | Epistar 35 mil /BRIDGELUX 45 mil (Integrated Chip LED) |
||
| Flux(lm) | Warm White | Natural White | Cool White |
| 8500-9700lm | 9500-11000lm | 10000-11500lm | |
| CRI(Ra) | ≥70 or ≥80 | ≥70 or ≥80 | ≥70 or ≥80 |
| Color Temperature | 2700~3300K | 4000~4500K | 6500~7000K |
| Power Factor | ≥0.9 | ||
| Light Effect | ≥0.9 | ||
| Beam Angle | 120Degree | ||
| IP Rating | IP65 | ||
| Working Temperature & Relative humidity |
-35℃~60℃~/ R.H.≤85% | ||
| Material | Aluminum +Tempered glass | ||
| Tj | <65℃±10%(Ta=25℃) | ||
| LED Lifespan on Average | 50000hours | ||
| Wire lead |
1.0mm² three core wires, L=0.5Meter . (Brown wire-L,Blue wire-N,Yellow/Green-G) |
||
| Product Size | L303XW303XH185mm | ||
| Net Weight | 7KGs/piece | ||
Product Details:
Note: This picture is the driver for 200W LED Flood light.
Comparison:
NOTE:
Please download the above test reports to view large picture clearly.
Installation:
Important Notes:
1. There are 3 wires in input cable for the lighting fixture:Red--live wire,Blue--null line, Yellow--ground line;
2. The lighting fixture must be installed by a professional electrician;
3. When connect the wires to the driver, please make sure to take waterproof measures;
4. The lamps can not be used for any violation of fire prevention law;
5. Please make sure to cut off the power before installation, maintenance and repair;
6. Please follow the belows steps to install the lighting fixture, and make sure the screws are fixed firmly and keep the lighting fixture balance:
Installation steps:
1. Please drill 3 holes Diameter Φ10mm and depth 100mm on mounting place:
2. Please fix the M8*80mm expansion bolt into the holes and make sure they are firmly mounted:
3. Please install the lighting fixture onto expansion bolt of the mounting surface and make sure the screws are screwed firmly.
4. Please adjust the lighting fixture at the right angle and fasten up. Then connect the power to the lighting fixture. Then the lighting fixutre is finished installation.
Applications:
Applicable to the building facade, square, billboards, leisure sports field, stage, rockery, bridge, building facades and outdoor landscape lighting etc.
|
|
