WS2812 Programmable Dome DMX Digital Pixel LED Neon Strip 12W / M 60LEDs / m

WS2812 Programmable Dome DMX Digital Pixel LED Neon Strip 12W / M 60LEDs / m

MOQ: 100Meters
Standard Packaging: 20 M/Roll,Neutral packing, G.W,:9.5KGs/CTN, CTN Measure: 33*33*17cm
Delivery Period: 3 ~ 18days
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 100000 Meters per month
Detail Information
Place of Origin
Guangdong China
Brand Name
COMI LIGHTING
Certification
CE, ROHS, EMC, LVD
Model Number
F21DMX
Item Type:
Addressable DMX Neon Flex Strip Light
IC Type:
WS2812
LED Type:
RGB 3-in-1 5050 SMD LED
LED Quantity:
56LEDs/meter
Pixel Quantity:
8pixel Per Meter
Power (W/m):
12W /Meter
Min Cuttable Unit:
Every 4.92"/12.5CM (7LEDs) Cuttable
Max Run Length:
20Meters (Power To Two Ends Of Strip)
Min. Bending:
Horizontal Direction Bendable, Dia. 12cm
Input Signal:
DMX Signal
Working Temperature(℃):
-30 ℃- +45℃
IP And IK Rating:
IP68 And IK08
Material:
Eco PVC
Warranty:
2 Years
Minimum Order Quantity:
100Meters
Packaging Details:
20 M/Roll,Neutral packing, G.W,:9.5KGs/CTN, CTN Measure: 33*33*17cm
Delivery Time:
3 ~ 18days
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
100000 Meters per month
High Light:

led neon flex light

,

led neon lamp

Product Description

F21DMX  24VDC 12W Per Meter and 60pcs 5050 RGB 3 - in - 1 LED per meter Dynamic Dome DMX Digital Pixel LED Neon Flex Tape IK08 and IP68 Outdoor Strip Lights with WS2812 IC, 8pixels per Meter, programmable and Writable.

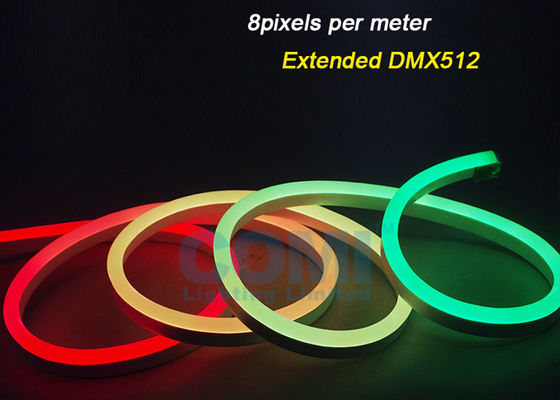

Neon-DMX is a programmable Pixel DMX RGB neon led strip with 8pixel per meter consists of 56pcs tri-chip 5050 RGB color LED per meter, With WS2821 IC in the circuit of the strip enables it compatible with direct DMX signal and don't required any DMX converter/decoder device. It offers Colorful lighting changing effect Over 16 million possible colors .With smart accessories kits, controllers and IP68 Designed, Neon-DMX can accommodate both interior and exterior environments and meet various color changing effects for different applications.







Features and Benefits:

1. LED Chips: SMD5050 Tri-chip LED as its light source.
2. WS2821 IC,
Signal Parallel Protected, DMX512 Signal Compatible,DMX Address Writable

3. 8pixel/meter, Each pixel of LED can be programmable or writable
4. By using our specialized control system, each output can take 512 pixels (1536 Channels)
5. Programmable to various color changing effects to cater to different applications
6. First-class eco-friendly UV-resistant PVC material
7. Dome and flat surface,
Ivory White diffused PVC luminous surface, continuous and uniform illumination, no LED dot or dark spot
8.
Horizontal direction bendable and min. bending diameter 12cm
9. Easy to be installed by smart accessories, can be cut and reconnected (connection accessories available):
(1) Every 4.92"/12.5cm(7LEDs) can be cuttable at regular intervals without damage the rest of neon strip
(2) Can be re-connected by smart connectors or glue.

10. Seamless joint connector provided to make continuous run length
11. IK08 and Protection Rating IP68 (All joints and connectors must be hermetically sealed to achieve IP68)

12. 2 Years warranty



Important Note: NF15 and NF21 series Neon LED strip is Horizontal bendable only,CAN NOT bend in vertical direction.







Technical Specification:

Part Number NF21DMX
LED Chip Tri-chip-in-1 SMD5050 LED
Material PVC
Working Voltage 24VDC
Power Consumption 12W/Meter
LED Quantity (pcs/m) 56pcs/meter
Min. Cutting Unit and Length 7LEDs (4.92"/12.5cm)
Max Length(Meters) 49.2'/15m
Protection Rating and IK Class IP68 Waterproof and IK08
Min. Bending Dia 12cm
Bending Direction Horizontal
Signal Input DMX512
Ambient Temp -30°C to +45°C







Applicaitons:

1.Especially suitable for indoor and outdoor architectural outline decorations, walkway and park guiding-line;
2. lighting system, and landscaping;
3. Ideal for bridge, sculpture, building contour, and board fringe illuminating decoration.

24V IP68 IK08 DMX 5050 LED Neon Flex Strip Lights with 8 Pixel per Meter



24V IP68 IK08 DMX 5050 LED Neon Flex Strip Lights with 8 Pixel per Meter



56LEDs / M 5050 RGB LED Addressable DMX WS2821 Neon Strip Lights 8 Pixels / M 56LEDs / M 5050 RGB LED Addressable DMX WS2821 Neon Strip Lights 8 Pixels / M









Professional Smart Accessories:





56LEDs / M 5050 RGB LED Addressable DMX WS2821 Neon Strip Lights 8 Pixels / M

56LEDs / M 5050 RGB LED Addressable DMX WS2821 Neon Strip Lights 8 Pixels / M





LED Neon Flex BU(Business Unit):



24V IP68 IK08 DMX 5050 LED Neon Flex Strip Lights with 8 Pixel per Meter



24V IP68 IK08 DMX 5050 LED Neon Flex Strip Lights with 8 Pixel per Meter









Packing:

1. Standard Packing: Plastic reel+ Outer carton. 40M/Roll, 15kg/CTN, CTN Size: 33*33*17cm

2. Customize packing is available.



24V IP68 IK08 DMX 5050 LED Neon Flex Strip Lights with 8 Pixel per Meter









Neon Flex LED Strip Family Products:



24V 10W / M 144LEDs / M Top View 3528 LED Neon Strip Lights Mini Size 16 * 17mm

Product
Series
Part Number Luminous
Surface
shape
Support DMX, PWM,or
DALI
LED
Type
Color Options LED Q'ty
(pcs/m)
Input
Volt
(vdc)
Power
(W/M)
Mini Cutting Unit

Mini

Cutting Length

Max
Lenth
(M)
Bending
Direction
Min.
Bending
Dia. (cm)
Topview
Series
F16A-120-XX Flat PWM,
DALI
3528 Single
Color
120 24 9 12LEDs

3.94"

/10cm

20 Vertical 12
F16A-144-XX Flat PWM,
DALI
3528 Single
Color
144 24 10 12LEDs

2.5"

/8.33cm

20 Vertical 12
Archipro
Series
F15A-A-XX Flat PWM,
DALI
5050 B/G/
Y/W
60 24 12 6LEDs

3.94"

/10cm

20 Horizontal 8
F21A-A-XX Arched PWM,
DALI
5050 B/G/
Y/W
60 24 12 6LEDs

3.94"

/10cm

20 Horizontal 8
F15A-B-XX Flat PWM,
DALI
5050 R/O/A 60 24 7.2 10LEDs

6.6"

/16.67cm

20 Horizontal 8
F21A-B-XX Arched PWM,
DALI
5050 R/O/A 60 24 7.2 10LEDs

6.6"

/16.67cm

20 Horizontal 8
F15A-C-XX Flat PWM,
DALI
3528 R/O/A/
G/B/W
72 24 5 12LEDs

6.6"

/16.67cm

20 Horizontal 8
F21A-C-XX Arched PWM,
DALI
3528 R/O/A/
G/B/W
72 24 5 12LEDs

6.6"

/16.67cm

20 Horizontal 8
F15A-D-XX Flat PWM,
DALI
3528 R/O/A/
G/B/W
72 12 5 6LEDs

3.3"

/8.33cm

10 Horizontal 8
F21A-D-XX Arched PWM,
DALI
3528 R/O/A/
G/B/W
72 12 5 6LEDs

3.3"

/8.33cm

10 Horizontal 8
Multi-RGB Series F15RGB Flat PWM,
DALI
5050 RGB 60 24 12 10LEDs

6.58"

/16.67cm

10 Horizontal 8
F21RGB Arched PWM,
DALI
5050 RGB 60 24 12 10LEDs

6.58"

/16.67cm

10 Horizontal 8
Dynamic DMX
(8pixel/m)
F15DMX Flat DMX 5050 RGB 56 24 12 7LEDs

4.92"

/12.5cm

20 Horizontal 12
F21DMX Arched DMX 5050 RGB 56 24 12 7LEDs

4.92"

/12.5cm

20 Horizontal 12
