| MOQ: | 100 Meters |

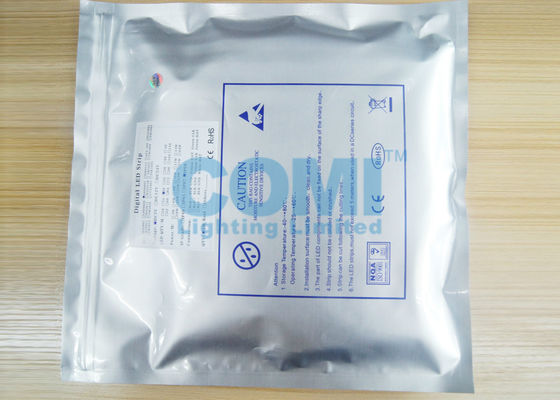

| Standard Packaging: | 5Meters/roll/pack/0.15KGs, 60packs/10KGs/carton/57*48*28CM |
| Delivery Period: | 3~15days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 1000000 Meters Per month |
CL-DS5050RGB30-10-DMX-12V 12VDC Addressable DMX512 Digital LED Strip Lights with 30 LEDs & 10 Pixels Per Meter which can be with DMX512 Signal Input Directly
Features and Benefits:
1. DMX512 signal input directly and don't need additional external DMX Decoder, more cost saving compared with SPI type digital LED strip because SPI type digital LED strip is still required additional DMX-to-SPI Decoder.
2. DMX signal circuits in FPC is designed to connected in parallel:
(1) any one of the DMX IC is damaged will not damage or affect the rest of strip light.
(2) No directional input or output requirement,
3. 10pixels per meter and Each pixel can be addressable and progrommable individually.
4. Please make sure the Positive and negative of input/output power cable cannot contrary connected to the power supply;
5. The smallest cuttable segment: Every 100mm (3pcs LED and 1piece DMX IC) can be cuttable;
6. Can be working with DMX signal directly and don't need extra DMX decoder;
7. Every 10Meters need to re-feed power to the LED Strip;
8. Provides colorful static or dynamic changing effects especially chasing, water stream, colorful gradients, colorful jump and etc when combines with Dream color LED controller with DMX signal output orDMX512 Controller;
10. Standard 5m/reel comes with a 4-pin JST SM connector(2 signal wires and 2 power wires) and separated power wires/connector on each end or open wires upon request.
Technical Specification:
| Features |
1. Can work with DMX signal directly and don't need additional DMX decoder2; 2. Each LED can be controlled or addressable individually |
| IC type and Quantity | 10pcs External DMX512 IC, Every 3LEDs controlled by 1piece IC. |
| LED Type and Quantity | Single color or RGB 3-in-1 5050 SMD LED, 30pcs/meter |
| Working voltage | 12VDC |
| Power | Max 8W/m |
| Pixel Quantity | 10 pixels/Meter |
| Grey Level | 256 grey scale |
| Min. cuttable unit | Every 3piece LED and 1piece IC/100MM cuttable |
| PCB | 12mm width FPC, black / white/ copper color for options |
| Packing | standard 5Meters/reel/pack |
| Wire lead or connectors | 4pins JST SM connector/open wires/ 4pins crystal waterproof connectors |
| Size: | L5000*W12*H2mm |
| Packing | Standard 5Meters/roll, 0.25KGs/pack. |
| IP Rating | IP20 Non-Waterproof |
General Information:
| Item Number |
Working Voltage |
Color | LED Type |
LED Q'ty |
IC Type & Quantity |
Pixel Q'ty |
Power (W/Mtr) |
Controllers (Order separately) |
| DS5050RGB30-10-DMX-12V | 12VDC |
RGB Full Color |
5050 |
30 pcs/m |
10pcs external DMX IC per meter |
144 Pixels/m |
8W | SD dream color controller, DMX512, Arduino |
Notes:
1. Specification and availability of the product subjected to change without notice;
2. IP65,IP67 versions are available upon request;
3. Make sure the controller, driver or DMX signal decoder must be compatiable with WS2812 or WS2812B IC in flexible LED strips before use LED strips.
4. The max. each running in series advised in 5meters, the lengths more than 5meters, please connect in parallel or use data repeater.Please inquire us about the connection before operation.
