| MOQ: | 10pcs |
| Standard Packaging: | 20Pcs/324*244*229mm(L*W*H)/ Carton |
| Delivery Period: | 3~20days |
| Payment Method: | T/T, Western Union, MoneyGram, L/C |
| Supply Capacity: | 1000000pcs/month |
75A-1H12V-1WP is a 75W AC/DC LED driver featureing constant voltage 12VDC output. This 75W dimming LED driver operates from 220-240VAC and offers models with different rated voltage 12VDC and 24VDC. Thanks to the high efficiency up to 86% , with the fanless design, the entire series is able to operate for -20°C~+50°C case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. It is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system to achieve a smooth dimming effect.
Features:
▪ Output 12VDC,0~75W. (24VDC version is available)
▪Single channel constant voltage output,6.2A Max.

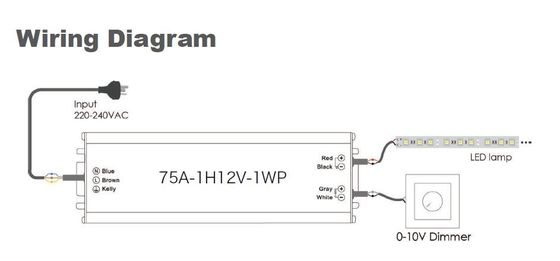

▪Support 3-in-1 dimming mode( 1-10V active signal, adjustable resistance and PWM signal).
▪High input voltage of 220VAC ~ 240VAC.
▪Dimming range of 1-100%, and dimming effect smooth,no flicker.
▪100% output when no dimming signal input, can be used as normal power supply.
▪ Over load protection; over voltage protection; short circuit
▪ protection；Over temperature protection.
▪ IP65 waterproof, suitable for outdoor LED lighting application.
Techinical Specifications:
|
Model
|
|
CL-75A-1H12V-1WP
|
CL-75A-1H24V-1WP
|
|
Output
|
Channel
|
1
|
1
|
|
Voltage
|
12VDC
|
24VDC
|
|
|
Current
|
6.2A
|
3.1A
|
|
|
Power
|
74.4W
|
74.4W
|
|
|
Voltage Accuracy
|
±3%
|
||
|
R & N (Max)
|
120mVp-p
|
||
|
Input
|
Input Voltage
|
220VAC– 24 0VAC
|
|
|
Frequency
|
50/60Hz
|
||
|
Eff iciency
|
＞86%@230VAC,full load
|
||
|
Current
|
0.9Amax@230V AC
|
||
|
Inrush current
|
Cold start 40A@230VAC
|
||
|
Protection
|
Over voltage
|
Hiccup, recovers after fault condition is removed
|
|
|
Over load
|
Hiccup, recovers after fault condition is removed
|
||
|
Short circuit
|
Hiccup, recovers after fault condition is removed
|
||
|
Over temperature
|
Shut down and auto-restart after normal temperature
|
||
|
Function
|
Dimming mode
|
1-10V active signal, adjustable resistance and PWM signal
|
|
|
Others
|
Dimension
|
221*63*40mm(L*W*H )
|
|
|
G.W.
|
880g
|
||
|
Packing size
|
324*244*229mm(L*W*H),20Pcs/Carton
|
||
|
IP Rate
|
IP65
|
||
|
Working temp.
|
-20℃ ~ 50℃
|
||
|
Relative humidity
|
20~90% RH
|
||
|
|
