Product Details:
|

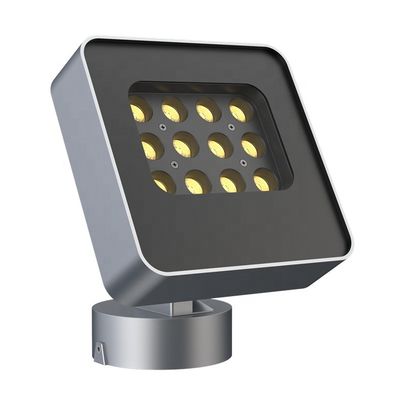

| Item Name: | Square Type LED Floodlights | Working Voltage: | 24VDC, 220-240VAC, 110-120VAC |
|---|---|---|---|
| Power: | 36W Or 48W | Light Source: | 21pcs*3W Or 4W CREE LED |
| Color: | 2200-6500K | Luminous Flux: | 2300-2800LM |
| Materials: | Made Of Aluminum | Housing Body Color: | Grey, Or Black |
| IP Rate: | IP66 Waterproof | Warranty: | 3 Years Or 5 Years |
| High Light: | 36W Waterproof LED Spot Light,IP66 Waterproof LED Spot Light,2800LM Outdoor Landscape Lighting |
||
Features and benefits:
▪ Utilizes 12pcs*3W or 4W as its light source.
▪ 70-80LM/W.
▪ Standard input voltage is 24Vdc or 220-240Vac (110-120Vac is available).
▪ High luminous flux and maximum visual comfort for lighting tasks in the outdoor area.
▪ Light distributions: narrow spot, spot, flood, or wall-wash.
▪ The luminaire is with ground spike, also provides other optional mounting accessories:
(1) Round base;.
(2) Screw fixed pole mounting Bracket;
(3) Mounting Bracket with stainless steel tree strap;
(4) Extended pole(300/500/800/1000mm) with round base (fixed by screws) or spike.
▪ Mono color, tunable white color, RGB, RGBW are available.
▪ Optional anti-glare light accessories: honey comb louver, honeycomb glass and filter.
▪ Finished color: grey and black.
▪ Multiple direction adjustable for projection direction.

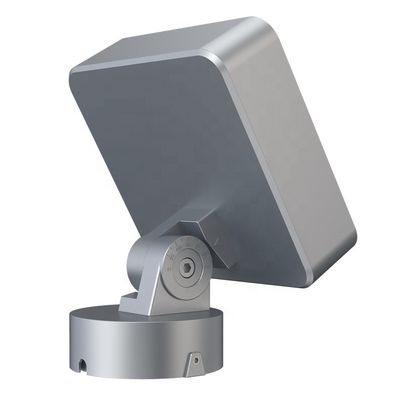

▪ With pan-and-tilt mounting plate for precisely aligned for projection angle.
▪ PWM, 0/1-10V, DALI, DMX 512, TRIAC dimming or control are available upon request.
▪ IP65 rated and weather-proof.
▪ Standard 3 years warranty. (5 years warranty available).
Material Specifications:
| Housing | 12 Die-casting grey or black powder coated aluminum. T=50-55μm . Adhesion of ISO class 1/ASTM class 4B |
| Light Window | Clear Temper glass. |
| Lens | Optical lens, efficiency≥90% |
| LED | CREE, OSRAM, EPISTAR and etc LED |
| PCB | Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
| LED Driver | Integrated LED driver with Constant current output |
| Power Cable | ▪ 0.5meters H05RN-F 2-core*1.0mm² to open wires (Low voltage) ▪ 0.5meters H05RN-F 3-core*0.75mm² to open wires(High voltage, or Tunable white) ▪ 0.5meters H05RN-F 4-core*0.75mm² to open wires(for RGB) ▪ 0.5meters H05RN-F 5-core*0.50mm² to open wires(for RGBW, or DMX512) |
| Operating Temperature | -20℃~+40℃ |
| Spike (included) | ABS |
| Exended Pole/round Base (Optional) | Aluminum (order separately) |
| Support | DALI, 0~10V,PWM, DMX512 control support upon request. |
