Product Details:
|
| Product Name: | IP65 Outdoor Led Landscape Lights | Working Voltage: | 24VDC, Or 100-240vac, 50/60Hz |
|---|---|---|---|
| LED Q'ty And Brand: | 1x15W, Or 4pcs X 3W Or 4W CREE Or Osram LED | Light Color: | Single, Tunable White, RGB, RGBW |
| Wattages: | 12W,16W (RGBW), 16 Or 20W | Luminous Flux: | 840 (12W COB LED) |
| Lamp Housing Color: | Black, Grey, White, Silver And Etc. | Surface Treatment: | Powder Coated |
| IP Rated: | IP65 Waterproof For Outdoor Lighting | Mounting Accessories: | Backet, Spike, Round Base, Tree Strap For Options |
| Optional Front Cover: | Front Cover With Visor/light Shield | Warranty: | 3 Years |
| High Light: | Powder Coated LED Landscape Spot Lights,16W LED Landscape Spot Lights,1160lm Led Garden Spotlights |
||

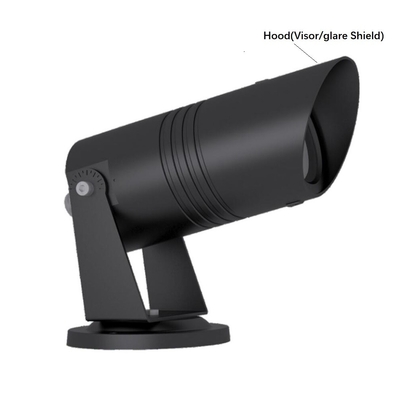

IP65 Outdoor LED Landscape Lights 4x4W with Base (surface mount) or Spike (ground stake),or tree light mounting straps (mounted on tree by strap) and Optional 0-10V/ DALI dimming or DMX512 Control support
The COMI SPOT LIGHT IP66 B3D-Series is suitable for emphasis lighting indoors as well as outdoors. Combined with a round base, or ground spike, or tree light mounting straps, or glare shield, it is also perfect for plant and garden lighting
Features and Benefits:
▪ Light source:1x20W CREE COB LED, or 4x4W or 4x5W LED
▪ Power: 16W(Mono), 12W(RGB 3-in-1), 16W (RGBW 4-in-1).
▪ Input voltage: 24VDC or 110-240Vac.
▪ Color: Mono color, RGB, RGBW.
▪ Beam angle: 8°, 10°, 15°, 30°,45°, 60°.
▪ Materials: Aluminum alloy
▪ Project angle Up to down adjustable and horizontal 360° rotatable.
▪ Installation by Round base.
Optional accessory: Ground spike(PVC), tree strap, glare shield(visor).
▪ Optional housing color: Black,anodized aluminum, matt silver, copper.
▪ Optional DALI, 1-10 V, PWM, TRIAC or DMX 512 controllable support.
▪ IP66 and IK04 rating.
▪ 2 Years warranty.
Technical Specifications of LED Landscape Spotlights:
| Item Number | Light Source | Color |
Lens Degree
(Θ1/2)(°)
|
CRI
(Ra)
|
Input Voltage(V)
|
Typical Power
(W)
|
Luminance
(lm)
|
IK
Rate
|
Optional Mounting
Accessories
|
| B3D0405X |
4×4W
CREE or OSRAM LED
|
Single
Color
|
8°,15°, 25°, 40°, 60° | Ra>80 |
24VDC
110-120V
220-240V
|
16W | 1123 | 04 |
Round Base,
Spike,
Tree Strap
|
| B3D0120X |
1×20W
CREE COB LED
|
Single
Color
|
15°,25°,
40°, 56°,
10x60°,
20x30°
|
Ra>80 |
24VDC
110-120V
220-240V
|
16W (max 20W) |
1160 | 04 |
Round Base,
Spike,
Tree Strap
|
| B3D0418X |
4×3W
RGB 3-in-1 full color LED
|
RGB
Color
|
13°,25°,
40°, 60°
|
/ | 12/24VDC | 12W | 222 | 04 |
Round Base,
Spike,
Tree Strap
|
| B3D0420X |
4×4W
RGBW 4-in-1 full color LED
|
RGBW
Color
|
13°,25°,
40°, 60°
|
/ | 12/24VDC | 16W | 480 | 04 |
Round Base,
Spike,
Tree Strap
|
Notes:
1. "X" in item number stands for mounting accessories for IP66 outdoor led flood spot lights:
|
X |
Mounting Accessories |
Mounting Method |
|
M |
Round base |
Surface mount on ground, wall, or ceiling |
|
B |
Spike |
Ground |
|
T |
Tree Strap |
Tree mounted by strap |
2. Color: Single color 2000,2400K, 2700K, 3000K, 4000K,6000K, Red, Blue, Gree, RGB, RGBW
3. Specifications are subjected to change without notice.
Finished Body color options for IP65 / IP66 LED Garden Spotlights
Body color available: black, dark grey, silver, white,copper and etc.
