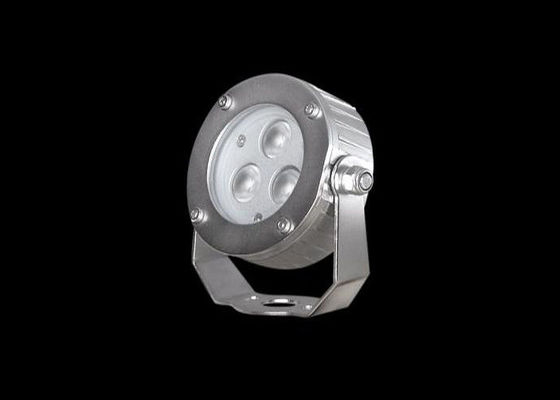

Product Details:
|
| Working Voltage: | 24VDC | Light Source: | 3*2W Osram LED Or 3*3W 3-IN-1 RGB LED |
|---|---|---|---|
| Typical Power: | 6W, 7.8W(RGB) | Luminance (lm):: | Cool White=325,Warm White=280 |
| Color: | Single Color Or RGB Full Color | Material: | Molding Shaped SUS 316 Stainless Steel |
| Installation: | Tripod | IP Rating: | IP68 Waterproof And IK06 |
| Depth: | In Less Than 1m Depth | ||
| High Light: | outdoor led spotlights,ip68 led underwater light |
||
Material specifications:
| Housing | Molding Stainless Steel 316# Housing |
| Bracket | Stainless Steel 316# |
| Front Cover | Stainless Steel 316# |
| Waterproof seal | EPDM gasket |
| Glass | Tempered glass. T=5mm |
| Lens | Optical lens efficiency≥85% |
| Cable gland | IP-68 PG-11 copper and nickel coated |
| Seal | Molding shaped silicon seal under the front cover Silicone glue among LED lens and PCB |
| Gasket | Glass and housing are silicone sealed |
| LED | Single color LED, Multi RGB color power LED |
| PCB | Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
| Driver |
Constant current output
Single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
|
| Application environment | Temperature of water between -20℃~40℃ less than 1 meter depth. |
| Power cable |
H07RN-F 2X1.0mm^2 L=2m (for Single color)
H07RN-F 4X1.0mm^2 L=2m(for RGB)
|
Dimensional Drawing(mm):
General Information:
| Item No. | Light source |
Degree
(Θ 1 / 2 )
|
Input
voltage(V)
|
Typical operating
current (mA)
|
Typical
consumption(w)
|
Typical
luminance (lm)
|
IK rate |
| B5AB0316 |
3×2W
Single Color
|
15 | 24VDC | 240 | 5.8 |
Cool white=325
Warm white=280
|
06 |
| B5AB0318 |
3×2W 3-in-1
RGB Color
|
25 | 24VDC |
R=70
G=124
B=124
|
7.7 | 155 | 06 |
