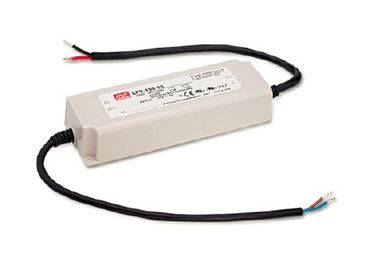

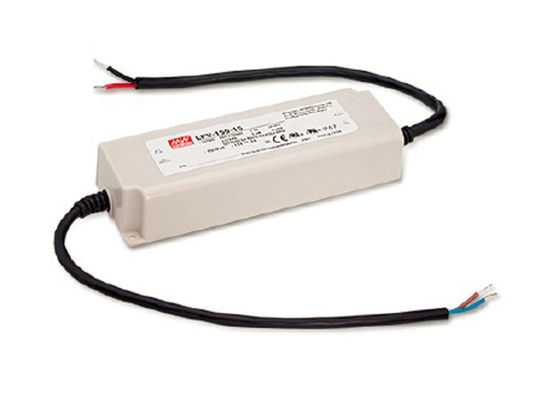

Product Details:
|
| Output Voltage: | 5VDC , 12VDC, 15VDC, 24VDC, 36VDC | Output Current Range: | 0 ~ 6A(5V), 0 ~ 3A(12V), 0 ~ 2.4A(15V), 0 ~ 1.5A(24V), 0 ~ 1A(36V) |
|---|---|---|---|
| Rated Power: | 30W(5VDC), 36W(12V, 15V, 24V, 36V) | Input Voltage: | 90 ~ 264VAC Or 127 ~ 370VDC, 47 ~ 63Hz |
| IP Rating: | IP67 Level Water Proof | Protections: | Short Circuit/Over Load/ Over Voltage |
| High Light: | led switching power supply,single output power supply |
||
Features:
● LPV series available output Power: 35W,60W,100W and 150W
● Constant voltage design,available in 5V,12V,15V,24V,36V and 48V
● Universal AC input / Full range
● Withstand 300VAC sure input for 5 seconds
● Protections: Short circuit/Over load/ Over Voltage
● Cooling by free air convection
● Fully encapsulated with IP67 level
● Fully isolated plastic case
● Class II Power unit, no FG
● Class 2 power unit
● Suitable for LED Lighting and moving sign applications
● 100% full load burn-in test
● Low cost and high reliability
● 2 years warranty
● UL,CE,CB,RoHs certificates
| MODEL | LPV-35-5 | LPV-35-12 | LPV-35-15 | LPV-35-24 | LPV-35-36 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 36V |
| RATED CURRENT | 5A(Note.7) | 3A | 2.4A | 1.5A | 1A | |
| CURRENT RANGE | 0~6A | 0~3A | 0~2.4A | 0~1.5A | 0~1A | |
| RATED POWER | 30W | 36W | 36W | 36W | 36W | |
| RIPPLE&NOISE(max.) Note.2 | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | |
| VOLTAGE TOLERANCE Note.3 | ±6.0% | ±5.0% | ||||
| LINE REGULATION | ±1% | |||||
| LOAD REGULATION | ±4.0% | ±2.0% | ||||
| SETUP,RISE TIME Note. 6 | 500ms, 20ms/230VAC 500ms, 20ms/115VAC at full load | |||||
| HOLD UP TIME(Typ.) | 160ms/230VAC 12ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 90~264VAC 127~370VDC | ||||
| FREQUENCY RANGE | 47~63Hz | |||||
| EFFICIENCY (Typ.) | 77% | 84% | 84% | 85% | 86% | |
| AC CURRENT (Typ.) | 1.1A/115VAC 0.7A/230VAC | |||||
| INRUSH CURRENT (Typ.) | COLD START 55A(twidth=510μs measured at 50% Ipeak) at 230VAC | |||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC | |||||
| LEAKAGE CURRENT | <2.5mA / 240VAC | |||||
| PROTECTION | OVERLOAD | 110~150% rated output power | ||||
| Protection type:shut down o/p voltage, re-power on to recovery | ||||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | 41.4 ~ 48.6V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +65℃(Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20~90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40~+85℃, 10~95% RH | |||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0~50℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||||
| SAFETY | SAFTY STANDARDS | UL1310 class 2, CAN/CSA No. 223-M91, IP67 approved ; design refer to TUV EN60950-1 | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3 | |||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A | |||||
| OTHERS | MTBF | 743.5Khrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 148*40*30mm (L*W*H) | |||||
| PACKING | 0.34Kg; 40pcs/14.6Kg/0.63CUFT | |||||
| NOTE | |
|||||
