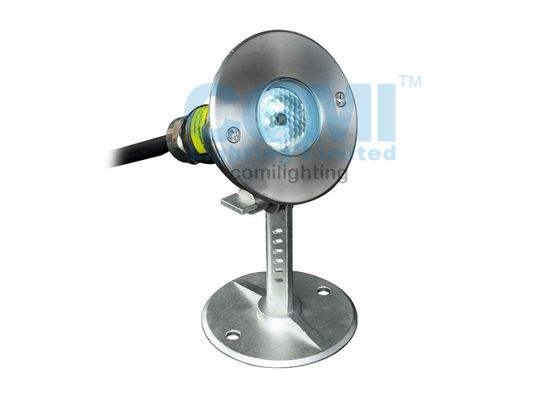

B5CA0102 B5CA0106 1piece * 2W or 3W Small Type CRI80+ Round LED Underwater Spot Light With Bracket

B5CA0102 B5CA0106 1piece * 2W or 3W Small Type CRI80+ Round LED Underwater Spot Light With Bracket

MOQ: 10pcs
Standard Packaging: 34*18*30mm, 4PCS/Carton. 4.5kg/Carton
Delivery Period: 5~15 working days
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 100,000pcs per month
Detail Information
Place of Origin
Guangdong China
Brand Name
COMI LIGHTING (HK)
Certification
CE, ROHS, ISO 9001: 2008
Model Number
B5CA0102, B5CA0106 (RGB)
Item Ttype:
3W LED Underwater Pool Spotlight
Input:
24VDC
LED Source:
1piece 3W Osram, Cree, And Etc.
Lamp Power(W):
2.6W
Lamp Luminous Flux(lm):
Cool White=154,Warm White=120
Lamp Luminous Efficiency(lm/w):
>60lm/W
IP Rating And IK Level:
IP68 And IK06
Lamp Body Material:
316 Stainless Steel
Installation:
Bracket
Warranty:
2 Years
Minimum Order Quantity:
10pcs
Packaging Details:
34*18*30mm, 4PCS/Carton. 4.5kg/Carton
Delivery Time:
5~15 working days
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
100,000pcs per month
High Light:

underwater fountain led lights

,

ip68 led underwater light

Product Description

B5CA0102, B5CA0106 (RGB) 1 * 3W 24VDC IP68 Mini Body LED Underwater Spot Light with Bracket





Features and Benefits:

1. 1pcs 2W Osram or Cree LED as light source.

2. The SUS 316 stainless steel Bracket can be adjustable in vertical direction.

3. The fitting made of stainless steel with slow heat conducting must be installed underwater, and less than 1meter in depth.

4. Dimming options include 0-10 V , PWM protocols, DALI and etc.

5. Suitable as underwater Flood spot light for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.





Material Specification:

Front cover&Housing Molding shaped sus 316# stainless steel
Bracket Molding shaped sus 316# stainless steel
Glass Clear tempered glass. T=5mm
Optics Lens One-unit optical lens, efficiency≥85%
Cable gland IP-68 PG-11 copper and nickel coated
LED TO type power LED
PCB Excellent heat conductivity aluminum, coefficient of heat Conductivity≥3.0w/mk
Driver Constant current output
Application environment Temperature of water between -20℃~40℃ less than 1 meter depth.
Power cable

H07RN-F 2X1.0mm² L=3m (for Single color)

H07RN-F 4X0.75mm² L=3m (for RGB)







Technical Information:

Item No. Light Source Lens

Beam

Angle

Input

Voltage

(V)

Typical

Operating

Current(mA)

Typical

Power

(W)

Typical

Luminance

(lm)

IK
Rate
B5CA0102 1×2W B32 30° 24VDC 105 2.5 Cool white=154
Warm white=120
06
B5CA0106

1×3W

3-in-1 RGB

B32 25° 24VDC R=38
G=53
B=54
3.6 56 06



Note:
1. Color options: Warm White, Neutral White, Cool White, Red, Blue, Green, RGB, Or R/G/B;
2. Specification and availability are subjected to change without notice.
3. For more detail specification in PDF, please contact us separately




Applications:

LED Underwater light is the perfect solution for decorative illumination water landscapes and illumination. With an IP68 waterproof grade, it is perfect for Swimming pool, ponds, fountain, aquariums, recreational facilities, decoration underwater, park lake, water stage and other outdoor place for atmosphere decoration.



Warning:
This high-power LED housing is all stainless steel, must be installed underwater
staying cold to prevent from burning too hot.







Dimensional Drawing(Unit:mm)

B5CA0102 B5CA0106 1piece * 2W or 3W Small Type CRI80+ Round LED Underwater Spot Light With Bracket 0  B5CA0102 B5CA0106 1piece * 2W or 3W Small Type CRI80+ Round LED Underwater Spot Light With Bracket 1



B5CA0102 B5CA0106 1piece * 2W or 3W Small Type CRI80+ Round LED Underwater Spot Light With Bracket 2
