| MOQ: | 10PCS |
| Standard Packaging: | Inner box and Outer carton |
| Delivery Period: | 5 ~ 15 working days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 100,000 pcs per month |
B1QR0102, B1QR0106 (RGB) 24VDC or 110-240VAC IP65 Single Color / RGB / RGBW Round Front Ring Asymmetrical LED Step & Wall Light Install by clips and PVC Mounting Sleeve (Included)
Features and Benefits:
1. Light downward ellipse Asymmetrical Light distribution
2. Installation with clips and recessed into wooden hole directly
3. Installation clips embedded into PVC mounting sleeve(included) and fix on the concrete wall

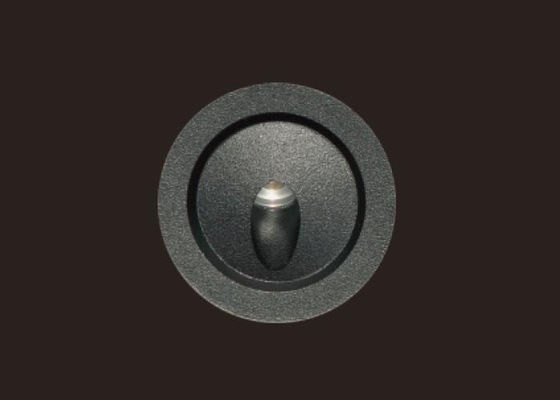

4. Various color for options for front cover , standard color White aluminium , the other colors are available based on reasonable order quantities.
5. Emitting color: Single color or RGB multipul Full color
6. IP65 waterproof
Material specifications:
| Housing |
12 Die-casting aluminum T=20-25μm.
Adhesion of ISO class 1/ ASTM class 4B high temperature painting
|
| Light Source | Emitter type power LED |
| Driver | Constant current output |
| Operating temperature | -20℃~40℃ |
| Power cable |
H05RN-F 3X1. 0mm² L=0.3m(high voltage)
H05RN-F 2X1. 0mm² L=0.3m(low voltage)
|
| Installation | PVC Mounting Sleeve included |
Technical Information:
| Item No. | Light source |
Degree
(Θ 1 / 2 )
|
Input
voltage
(V)
|
Typical operating
current
(mA)
|
Typical
consumption
(w)
|
Typical
luminance (lm)
|
IK rate |
|
B1QR0102
|
1×3W | 80 |
24VDC
120/ 240
|
24V=110
120V=48
240V=28
|
24V=2.6
120V=3.3
240V=3.3
|
Cool white=75
Warm white=66
|
10 |
|
B1QR0106
|
1×3W RGB 3-in-1 |
80 |
24VDC
|
R=38 G=53 B=54 |
24V=3.5
|
50
|
10 |
Note:
1. Color options: Warm White, Neutral White, Cool White, Red, Green, Blue and etc;
2. Specification and availability are subjected to change without notice.
Outder Dimension (mm):
Family Products:
| Item No. | Light source |
Degree
(Θ 1 / 2 )
|
Input
voltage
(V)
|
Typical operating
current
(mA)
|
Typical
consumption
(w)
|
Typical
luminance (lm)
|
IK rate |
|
B1QR0102 (Round) |
1×3W | 80 |
24VDC
120/ 240
|
24V=110
120V=48
240V=28
|
24V=2.6
120V=3.3
240V=3.3
|
Cool white=75
Warm white=66
|
10 |
|
B1QS0102 (Square) |
1×3W |
80 |
24VDC
120/ 240
|
24V=110
120V=48
240V=28
|
24V=2.6
120V=3.3
240V=3.3
|
Cool white=75
Warm white=66
|
10 |
|
|
