MOQ: | 10PCS |
Standard Packaging: | Inner box and outer carton, 6pcs per carton, 8KGs/carton, Carton Size: 45*26*13cm |
Delivery Period: | 3 - 15 Working Days |
Payment Method: | T/T, L/C, Western Union, MoneyGram |
Supply Capacity: | 100,000pcs per month |

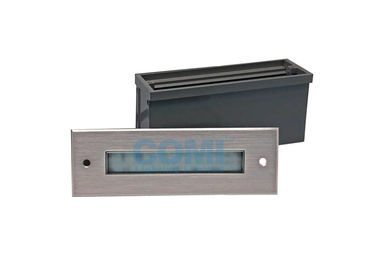

D1FL1014F, D1FL1015F (RGB) 24V or 110~240VAC SMD LED Frosted Lens Recessed Linear Step Wall Washer Lights Install by Black PVC Mounting Sleeve
The COMI Lighting WALL LIGHT D1FL-Series is designed for wall or step integration and offers various design possibilities in architectural illumination.With 24VDC or 110-240VAC input, and the low voltage 24VDC versions can be dimmable or DMX 512, DALI, 1-10 V controllable by power supplies,drivers or controllers. COMI Lighting provide frosted or white print cover glass options for soft beam D1FL-series step wall light. Simplified install by PVC plastic mounting sleeve(included).
Features and Benefits:
1. Frosted temper glass to make the linear wall lights with soft beam output;
2. Dimming controlled by DALI, 1 - 10 V, PWM and etc;
3. Simplified install by PVC plastic mounting sleeve
4. Stainless steel SUS 316L# front plate;
5. Outdoor rated IP65 design
6. Whole fitting power consumption is 2.4~6W, Bright and energy saving.
7. Perfect heat conduction and heat cooling construction,Keep LED work longer.
Material specifications:
Housing: | 12# Die-casting aluminum grey powder coated T=60-80µm. Adhesion of ISO class 1/ASTM class 4B. |
Front Plate: | Stainless steel SUS 316L# |
Glass | Frosted step tempered glass. T=8mm |
Cable gland: | IP-67 PG-9 PVC |
Gasket: | Tooling shaped silicone seal |
LED: | SMD5050 LED or 2835 LED |
Driver: | Constant current output |
Operating temperature: | -20℃~40℃ |
Power cable: |
H05RN-F 2X1.0mm² L=0.5m(low voltage)
H05RN-F 3X1. 0mm² L=0.5m(high voltage)
H05RN-F 4X0.75mm² L=0.5m(for RGB)
|
Mounting sleeve: | Standard PVC (Included) |
Technical Information:
Item No. | Light source |
Degree
(Θ 1 / 2 )
|
Input
voltage
(V)
|
Typical operating
current (mA)
|
Typical
consumption
(w)
|
Typical
luminance
(lm)
|
IK rate |
D1FL1014 | 10×SMD5050 |
-
|
24VDC Or
120 /240
|
24V=100
120V=62
240V=31
|
24V=2.4W
120V=3.7W
240V=3.7W
|
Cool white=180
Warm white=15
|
09 |
D1FL1015 |
10×SMD5050
RGB 3IN1
Full color
|
- |
24VDC
|
R=38
G=38
B=38
|
2.7W
|
4.8LM
|
09 |
Dimensional Drawing(mm):
