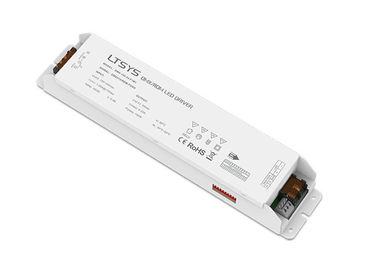

DMX-150-24-F1M1 24Vdc 150W Output DMX / RDM Push DIM LED Intelligent Driver 100-240Vac Input
Features and Benefits:
1. Dimming interface: MX512/RDM push DIM
2. With the RDM remote device management protocol.
3. Supports remote management of reading or writing DMX address.
4. PWM digital dimming, no alter LED color rendering index.
5. Dimming, range: 0~100%, LED start at 0.1% possible.
6. Power factor > 0.99, Efficiency > 93%.
7. Short circuit / Over-temperature / Over load / Over voltage protection.
8. Compliant with Safety Extra Low Voltage standard.
9. Suitable for indoor environments.
Technical Specification:
| Dimming Interface | DMX512/RDM, Push DIM |
| Input Voltage Range | 100-240Vac ±10% |
| Frequency | 50/60Hz |
| Input Current | 115Vac≤1.95A, 230Vac≤0.8A |
| Power Factor | PF>0.99/115Vac , PF>0.95/230Vac, at full load |
| THD | <5% at 115Vac, <8% at 230Vac (full load) |
| Efficiency | >93% |
| Inrush Current(typ.) | Cold start 60A at 230Vac |
| Leakage Current | I/P-O/P: <0.5mA/230Vac, I/P-GND: <0.75mA/230Vac |
| Output Current | Max. 6.25A |
| Output Voltage | 24Vdc |
| Output Voltage Range | 24Vdc ±0.5Vdc |
| Ripple & Noise | ≤200mV |
| Output Power | Max. 150W |
| Overload Power Limitation | ≥102-125% |
| Dimming Range | 0~100%, LED start at 0.1% possible. |
| Working Temperature | tc: 80°C ta: -30°C ~ 60°C |
| Working Humidity | 20 ~ 95%RH, non-condensing |
| Storage Temp., Humidity | -40 ~ 80°C, 10~95%RH |
| Temp. Coefficient | ±0.03%/°C(0-50°C) |
| Vibration | 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes |
| Dimension | 273×57×37mm(L×W×H) |
| Packing | 278×59×42mm(L×W×H) |
| G.W. | 750g |
| Protection | |
| Over Temp. Protection | Shut down the output when PCB temp.≥110°C, auto recovers when temp. back to normal |
| Over Voltage Protection | No Load Voltage≥26~32V, re-power on to recover after fault condition is removed |
| Over Load Protection | Current Load≥102%~125%, recovers automatically after fault condition is removed |
| Short Circuit Protection | Shut down automatically if short circuit occurs, auto recovers after faulty condition is removed |
| Safety & EMC | |
| Withstand Voltage | I/P-O/P: 3750Vac I/P-GND: 1800Vac |
| Isolation Resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH |
| Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13 |
| EMC Emission | EN55015, EN61000-3-2 Class C, IEC61000-3-3 |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11, EN61547 |
Product Size(Units:mm):
Typical Wiring Diagram:
|
|
