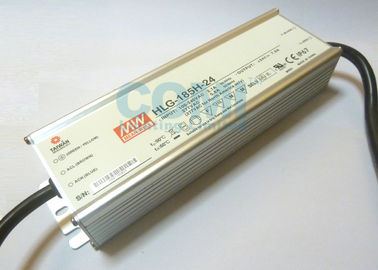

24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof

24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof

MOQ: 1piece
Standard Packaging: 1.3Kg; 12pcs/16Kg/0.74CUFT
Delivery Period: 3~12 Days
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 100000pcs per month
Detail Information
Place of Origin
China
Brand Name
MEAN WELL
Certification
CE, ROHS, UL, FCC, TUV, CB
Model Number
HLG-185H-24
Item Type:
IP67 CV Waterproof Power Supply
Output:
24VDC 7.8A, 185W
Input:
100-240VAC, 277VAC
IP Rating:
IP67 Or IP65
Housing:
Aluminum
PFC:
Yes, Built-in PFC
Protection:
Short Circuit/over Voltage/over Current/over Heat
Efficiency:
>94%
Warranty:
5 Years
Minimum Order Quantity:
1piece
Packaging Details:
1.3Kg; 12pcs/16Kg/0.74CUFT
Delivery Time:
3~12 Days
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
100000pcs per month
High Light:

led strip power supply

,

led switching power supply

Product Description

24Vdc 185W MEAN WELL IP67 Waterproof LED Single Output Switching Power Supply



HLG- 185H series is a 185W AC/DC LED driver featuring the dual mode constant voltage and current output. HLG-185H operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.





Features:

1. Universal AC input / Full range (up to 305V AC)

2. Built-in active PFC function

3. High efficiency up to 94%

4. Protections: short circuit / over current / over voltage/ over temperature

5. Cooling by free air convection

7. Function options: Ouput adjustable through potentiometer;

8. IP67 / IP65 design for inddor or outdoor installatons

9. three in one dimming function (0~10Vdc or PWM signal or resistance)

10. suitable for lED lighting adn stret lighting applications

11. 7 Years warranty (Note 10)





Applications:

1. LED Street lighting

2. LED High bay lighting

3. parking space lighting

4. LED fishing lamp

5. LED greenhouse lighting

6. Type "HL" for use in class I, division 2 hazardous (Classified) location.





Technical Specificaiton:

MODEL HLG-185H-12 HLG-185H-15 HLG-185H-24 HLG-185H-36
OUTPUT DC VOLTAGE 12V 15V 24V 36V
Constant Current Region (Note 4) 6~12V 7.5~15V 12~24V 18~36V
RATED CURRENT 13A 11.5A 7.8A 5.2A
RATED POWER 156W 172.5W 187.2W 187.2W
RIPPLE&NOISE(max.) Note.2 150mVp-p 150mVp-p 150mVp-p 200mVp-p

VOLTAGE ADJ. RANGE

(Adjustable for A-Type only (via built-in potentiometer))

10.8 ~ 13.5V 13.5 ~ 17V 22 ~ 27V 33 ~ 40V

CURRENT ADJ. RANGE

(Adjustable for A-Type only (via built-in potentiometer))

6.5 ~ 13A 5.75 ~ 11.5A 3.9 ~ 7.8A 2.6 ~ 5.2A
VOLTAGE TOLERANCE ±2.5% ±2.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2.0% ±1.0% ±0.5% ±0.5%
SETUP,RISE TIME Note. 6 1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME(Typ.) 16ms / 115VAC, 230VAC
INPUT VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC
(Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47~63Hz
POWER FACTOR(Typ.) PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load
(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
EFFICIENCY (Typ.) 91.5% 92% 93.5% 94%
AC CURRENT (Typ.)

12V: 1.8A / 115VAC 0.8A / 230VAC 0.7A / 277VAC

15V~54V: 2.1A / 115VAC 0.9A / 230VAC 0.8A / 277VAC

INRUSH CURRENT (Typ.) COLD START 65A(twidth=445μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 14 ~ 17V 18 ~ 21V 28 ~ 34V 41 ~ 46V
Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. Tcase= -40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP Tcase= +90℃
WORKING HUMIDITY 20~95% RH non-condensing

STORAGE TEMP.,

HUMIDITY

-40~+85℃, 10~95% RH
TEMP. COEFFICIENT ±0.03% / ℃ (0~50℃)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY SAFTY STANDARDS

UL8750(type”HL”), CSA C22.2 No. 250.0-08; TUV EN61347-1, EN61347-2-13 independent;gb19510, GB19510.14

IP65 or IP67; J61347-1, J61347-2-13 approved ; design refer to UL60950-1, TUV EN60950-1

WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (@ load≧50%) ; EN61000-3-3. GB17743, and GB17625.1
EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)

OTHERS MTBF 192.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION 228*68*38.8mm (L*W*H)
PACKING 1.15Kg; 12pcs/14.8Kg/0.8CUFT
NOTE 24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof 0





 24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof 1





24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof 2





24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof 3

24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof 4

24Vdc 185W MEAN WELL LED Single Output Switching Power Supply IP67 Waterproof 5







For more detail specification, please contact us to get the specification in PDF file.Thanks!
