RGBW 4 Channels DMX512 Decoder Output Outdoor Rating IP67 Waterproof Max 720W

RGBW 4 Channels DMX512 Decoder Output Outdoor Rating IP67 Waterproof Max 720W

MOQ: 10pcs
Standard Packaging: Inner box and outer carton
Delivery Period: 3 ~ 15days
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 100000 pcs per month
Detail Information
Place of Origin
Guangdong China
Brand Name
SR-Series, COMI Lighting
Certification
CE, ROHS, ISO 9001: 2008
Model Number
CL-SR-2102HT(WP)
Item Type:
IP67 Waterproof DMX Decoder
Input Singal:
DMX512 Signal
Input Voltage:
12-36VDC
Output Options:
4CH, 5A/CH, Or 4CH, 0.35A/CH, Or 4CH, 0.7A/CH
Output Power:
240-720W, Or 16.8-50.4W, Or 33.6-100.8W
Product Size(mm):
74*181*38
IP Rating:
IP67
Warranty:
5 Years
Minimum Order Quantity:
10pcs
Packaging Details:
Inner box and outer carton
Delivery Time:
3 ~ 15days
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
100000 pcs per month
High Light:

dmx decoder controller

,

led dmx decoder

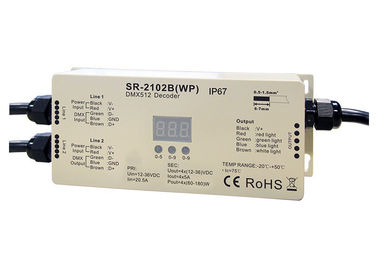

Product Description

CL-SR-2102HT(WP)  12 - 36VDC Input RGBW 4 Channels DMX512 Decoder Max 720W output Outdoor Rating IP67 Waterproof with Constant Voltage Output or constant Current Output versions for options







The SR-2102BWP is a waterproof DMX512 decoder with IP67 rating, which enables the decoder to be used in outdoor and damp environment. 4 channel output with constant current and constant voltage versions both available enables the DMX512 decoder to work with different types of LED lamps. Maximum output can be up to 8A per channel. DMX address can be set freely and shown on the numeric digital display.





Key Features:

  • Waterproof DMX512 decoder with IP67 rating and stainless steel shell, suitable for outdoor and damp environment
  • DMX signal output, comply with standard protocol DMX512(1990), compatible with DMX masters from international suppliers
  • DMX512 compliant control interface, DMX address can be set freely and shown on the digital numeric display
  • Compatible with our DMX wall mounted controllers (single color, dual color, RGB) to achieve many different lights dimming and controlling effects
  • Constant voltage 5A or 8A per channel, constant current 350mA or 700mA per channel
  • To work with power repeater to expand output unlimitedly





Specifications

Part Number

Input

Voltage

Output

Current

Output

Power

Output

Type

Dimension

(mm)

CL-SR-2102B(WP) 12-36VDC 4CH, 5A/CH 240-720W Constant Voltage 74*181*38
CL-SR-2112B(WP) 12-36VDC 4CH, 0.35A/CH 16.8-50.4W Constant Current 74*181*38
CL-SR-2114B(WP) 12-36VDC 4CH, 0.7A/CH 33.6-100.8W Constant Current 74*181*38







Product Size(mm):





RGBW 4 Channels DMX512 Decoder Output Outdoor Rating IP67 Waterproof Max 720W 0







Typical Wiring Diagram:



RGBW 4 Channels DMX512 Decoder Output Outdoor Rating IP67 Waterproof Max 720W 1







For more detail specification and operation instruction, please contact us separately.Thanks!
