12 - 36VDC 4 Channels LED Controller , RF RGBW Led Light Controller Multiple ZonesFunction

12 - 36VDC 4 Channels LED Controller , RF RGBW Led Light Controller Multiple ZonesFunction
12 - 36VDC 4 Channels LED Controller , RF RGBW Led Light Controller Multiple ZonesFunction 12 - 36VDC 4 Channels LED Controller , RF RGBW Led Light Controller Multiple ZonesFunction

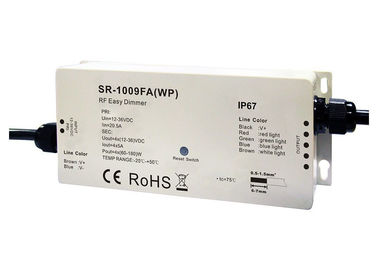

Large Image :  12 - 36VDC 4 Channels LED Controller , RF RGBW Led Light Controller Multiple ZonesFunction

Product Details:
Place of Origin: Shenzhen China
Brand Name: SR-Series, COMI LIGHTING
Certification: UL, FCC, TUV, CE, ROHS
Model Number: CL-SR-1009FAWP
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: Inner Box and outer carton
Delivery Time: 3 ~ 15 Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100000 pcs per month

12 - 36VDC 4 Channels LED Controller , RF RGBW Led Light Controller Multiple ZonesFunction

Description
Item Type: Waterproof RF RGBW LED Controller Input Voltage: 12-36VDC
Output Current: 5A/CH; 350mA; Or 700mA For Options Output Power: 240-720W; 16.8-50.4W; 33.6-100.8W
Output Channel: 4Channels Radio Frequency Available: 869.5/434/916.5MHz
Output Type Options: Constant Current And Constant Voltage IP Rating: IP67 Waterproof
Size(L*W*H): 180.5*73.6*38.0MM Warranty: 5 Years
High Light:

dmx decoder controller

,

led dmx decoder

CL-SR-1009FAWP 12 - 36VDC 4 Channels Waterproof RF RGBW LED Controller with Multiple ZonesFunction with Constant Voltage 12~36VDC, constant curent 350mA and 700mA for options, UL / FCC/ TUV / CE/ ROHS Certificates and 5 Years Warranty





The RF RGBW LED controller CL-SR-1009FAWP series is a waterproof RF receiver with IP67 rating which can be compatible with a variety of SR-Series remotes to control single color, dual color LEDs and RGBW LEDs with constant current and constant voltage version optional. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Built-in changing patterns are available and can be saved to each zone. Brightness of each R, G, B, W channel can be adjustable separately to achieve millions of changing colors. While working with WiFi-RF converters, the RF controller can be WiFi controlled by APP installed on IOS or Android mobile devices. The RF LED controller can be used in outdoor and damp environment.





Key Features:

  • Waterproof RF LED controller with IP67 rating
  • Constant current and constant voltage version available
  • Full compatibility with a variety of single color, dual color and RGB/RGBW RF remotes
  • Multiple zones can be controlled separately or synchronously with endless receivers in each zone
  • Each receiver can be controlled by 8 different remotes maximally
  • Can be WiFi controlled by APP installed on IOS or Android moble devices while working with WiFi-RF converter
  • Brightness of each R, G, B and W can be adjustable to achieve millions of colors
  • Radio frequency available: 869.5/434/916.5MHz





Specifications:

Part No. Input Voltage Output Current Output Power Output type Dimension (mm)
CL-SR-1009FAWP 12-36VDC 4CH, 5A/CH 240-720W Constant Voltage 180.5*73.6*38.0
CL-SR-1009FA3WP 12-36VDC 4CH, 0.35A/CH 16.8-50.4W Constant Current 180.5*73.6*38.0
CL-SR-1009FA7WP 12-36VDC 4CH, 0.7A/CH 33.6-100.8W Constant Current 180.5*73.6*38.0

















12 - 36VDC 4 Channels LED Controller , RF RGBW Led Light Controller Multiple ZonesFunction 0



Product Dimension:





12 - 36VDC 4 Channels LED Controller , RF RGBW Led Light Controller Multiple ZonesFunction 1





12 - 36VDC 4 Channels LED Controller , RF RGBW Led Light Controller Multiple ZonesFunction 2







12 - 36VDC 4 Channels LED Controller , RF RGBW Led Light Controller Multiple ZonesFunction 3







• DO NOT install with power applied to device.

• This device is IP67 rating and protected against damp environment.



Please contact us sperately for more details specification or manual.
