| MOQ: | 48pcs |
| Standard Packaging: | 48pcs/13KGs/CTN , Carton Size:470*315*315mm |
| Delivery Period: | 3 ~ 15days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 100000 pcs per month |
CL-RL-010W-A UL Listed AC100-277V 10W E26 / E27 IP64 LED Corn Light 1180LM for 40W HID Replacement Post Top Lamp
Features and Benefits:
● 10W LED Corn Light,up to 125LM/W.
● 35~40W HID Replacement Post Top Lamp
● Excellent Material for lighting fixture:
(1)Original Samsung 5630 0.3W LED;
(2)Japanese Rubycon Capacitor for power supply;
(3)Japanese JEA connector,more safer and reliable;
(4)High thermal conductive PCB and 6030 Aluminum heat sink;
● 80% more energy saving compared with traditional lamps.
● More than 1,000,000 times Reliability Test
● With 360 Degree Beam Angle design to make the light radiating uniformly to the ground.
● Can be used in Enclosed Luminaires.
● Easy replacement, LED corn Bulb could directly replace the traditional E40 or E27 Base CFL, HPS, HM in IP65 or IP67 fixtures.
● High CRI Ra>80.
● High Luminous Efficiency, more than 100-110LM/W.
● Long Lifespan of 10years, with 5Years warranty.
● ETL,UL,DLC,Lightingfacts,TUV,CE,RoHs approved
Technical Specification:
| Wattage | 10W |
| Recommended Replaced Lamp | 35W CFL/40W HPS |
| Input Voltage | 100-277VAC, 50/60Hz |
| PF | >0.95 |
| Light Source | 32pcs Samsung 0.3W 5630 SMD LEDs or Epistar 2835 SMD LED |
| Luminous Flux | 1180LM±5% (5630 LED) , 1050LM±5% (2835 LED) |
| Color and CCT | WW(3000~3500K), NW(4000-4500K),or CW(6000-6500K) |
| CRI | Ra>80 |
| Beam Angle | 360degree |
| LED Lifetime | >35,000Hours |
| Lamp Base | E27, E26 |
| Size | ¢59*143 MM |
| Material | MCPCB+ Aluminum Heatsink |
| Packing | Net Weight 250g/piece, 48pcs/carton,15KGs/carton |
| Total Harmonic Distortion | ≤9 % |
| Body Temperature | <55 °C @Ta=25 °C |
| Working Humidity | 10%-90% |
| Storage temperature | -40°C to 70°C |
| Operating temperature | -10°C to 45°C |
General Information:
| Part Number | Power (W) |
Input Voltage (VAC) |
CCT (K) |
LED Type | LED Q'ty (pcs) |
CRI (Ra) |
Luminous Flux(lm) |
PF | LED LM80 |
IP Rating |
Warranty |
| CL-RL-010W-A-XX | 8W | AC100-277V, 50-60Hz |
2700-7000K | 0.3W Samsung 5630SMD LED |
24pcs | Ra>80 | 980lm±5% | >0.9 | Yes | IP64 | 5 Years |
| CL-RL-010W-B-XX | 8W | AC100-277V, 50-60Hz |
2700-7000K | 0.3W Epistar 2835 SMD LED |
24pcs | Ra>80 | 850lm±5% | >0.9 | Yes | IP64 | 3 Years |
Notes:
1.Colors options: Warm white (WW, 3000~3500K[standard]), Neutral White (NW, 4000~4500K,4800~5300K), Cool White (CW, 6000~6500K);
2.Standard CRI80+ and CRI90+ is optional;
3.Please contact us to get Light/intensity distribution curve or product sepecification.Thanks!
4.Specification and availability are subjected to change without notice

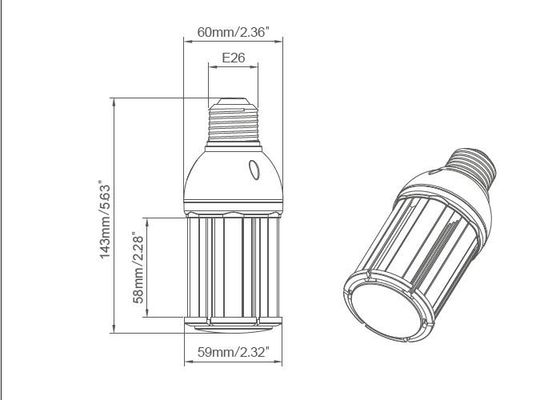

Product Size:
Materials:
Replacement:
Applications:
|
|
