| MOQ: | 48pcs |
| Standard Packaging: | 24pcs/10kg/350*265*410mm |
| Delivery Period: | 5~15days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 100000 pcs per month |

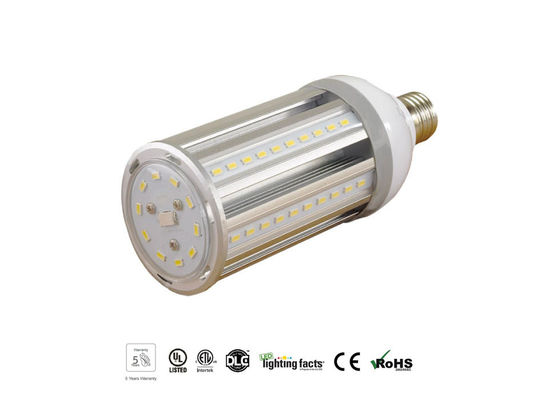

CL-RL-022W-A-XX, CL-RL-022W-B-XX 22W E26 / E27 2680LM Omni Wide Angle LED Corn Bulb Light Usable in Enclosed Luminaires
Features and Benefits:
● 22W LED Corn Light,up to 125LM/W.
● Replace 60W CFL, 75W HPS.
● Excellent Material for lighting fixture:
(1) Original Samsung 5630 0.3W LED;
(2) Japanese Rubycon Capacitor for power supply;
(3) Japanese JEA connector,more safer and reliable;
(4) High thermal conductive PCB and 6030 Aluminum heat sink;
● 80% more energy saving compared with traditional lamps.
● More than 1,000,000 times Reliability Test
● With 360 Degree Beam Angle design to make the light radiating uniformly to the ground.
● Can be used in Enclosed Luminaires.
● Easy replacement, LED corn Bulb could directly replace the traditional E40 or E27 Base CFL, HPS, HM in IP65 or IP67 fixtures.
● High CRI Ra>80.
● High Luminous Efficiency, more than 110LM/W.
● Long Lifespan of 10years.
● 5Years warranty.
● ETL,UL,DLC,Lightingfacts,TUV,CE,RoHs approved
Technical Specification:
● Power Consumption:22W
● Input Voltage: 100-277VAC, 50/60Hz
● PF>0.95
● Recommended Replaced Lamp:60W CFL/75W HPS
● Light Source: 70pcs Samsung 0.3W 5630 SMD LED or Epistar 2835 SMD LED
● Luminous Flux: 2680LM±5% (5630 LED) , 2300LM±5% (2835 LED) ,
● CCT:WW(3000~3500K), NW(4000-4500K),or CW(6000-6500K)
● CRI:Ra>80
● Beam Angle: 360°
● Lifetime: >35,000Hours
● Base Options: E27, E26
● Material: MCPCB+ Aluminum Heatsink
● Transparent Cover for Side LEDs and Bottom LEDs
● Packing: Net Weight 365g/piece, 24pcs/carton,12KGs/carton
● Size: ¢70*186 MM
● IP Rating:IP64
● Total Harmonic Distortion:≤9 %
● Body Temperature: <55 °C @Ta=25 °C
● Working Humidity:10%-90%
● Storage temperature: -40 to 70°C
● Operating temperature: -10 to 45°C
General Information:
| Part Number | Power (W) |
Input Voltage (VAC) |
CCT (K) |
LED Type | LED Q'ty (pcs) |
CRI (Ra) |
Luminous Flux(lm) |
PF | LED LM80 |
IP Rating |
Warranty |
| CL-RL-022W-A-XX | 22W | AC100-277V, 50-60Hz |
2700-7000K | 0.3W Samsung 5630SMD LED |
70pcs | Ra>80 | 2680lm±5% | >0.9 | Yes | IP64 | 5 Years |
| CL-RL-022W-B-XX | 22W | AC100-277V, 50-60Hz |
2700-7000K | 0.3W Epistar 2835 SMD LED |
70pcs | Ra>80 | 2310lm±5% | >0.9 | Yes | IP64 | 3 Years |
Notes:
1.Colors options: Warm white (WW, 3000~3500K[standard]), Neutral White (NW, 4000~4500K,4800~5300K), Cool White (CW, 6000~6500K);
2.Standard CRI80+ and CRI90+ is optional;
3.Please contact us to get product sepecification.Thanks!
4.Specification and availability are subjected to change without notice.
Materials:
Replacement:
Applications:
|
|
