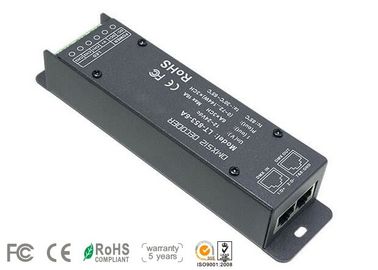

12V - 24VDC 6A * 3 Channels DMX Decoder LED Controller with RJ45 DMX Socket

12V - 24VDC 6A * 3 Channels DMX Decoder LED Controller with RJ45 DMX Socket

MOQ: 10pcs
Standard Packaging: Package Size:L183×W48×H41mm; Weight(G.W.):310g
Delivery Period: 3~12 Working Days
Payment Method: T/T, L/C, Western Union, MoneyGram, Paypal
Supply Capacity: 500,000 pcs per month
Detail Information
Place of Origin
Guangdong China
Brand Name
LT-Series
Certification
CE, RoHs, FCC, ISO9001: 2008
Model Number
CL-LT-853-6A
Product Name:
3 Channels Output DMX Decoder
Input Signal:
DMX512
Input Voltage:
12 ~ 24Vdc
Max Current Load:
6A×3CH Max. 18A In Total
Max Output Power:
216W/432W(12V/24V)
DMX512 Socket:
RJ45
Working Temperature:
-30℃~65℃
Dimensions::
L175×W42×H33mm
Dimming:
0-100% Brightness
Warranty:
5 Years
Minimum Order Quantity:
10pcs
Packaging Details:
Package Size:L183×W48×H41mm; Weight(G.W.):310g
Delivery Time:
3~12 Working Days
Payment Terms:
T/T, L/C, Western Union, MoneyGram, Paypal
Supply Ability:
500,000 pcs per month
High Light:

led strip controller

,

dmx decoder controller

Product Description

12V - 24VDC 6A * 3CH DMX Decoder LED Controller RJ45 DMX Socket



CL-LT-853-6A DMX-PWM decoder works to convert universal DMX512 digital signal to PWM signal, which controlled by DMX512 console.Can be realize 0-100% brightness and various changing effect. And can control single color, two color, RGB LED lights.





Product Parameters:

Input Signal DMX512
Input Voltage: 12~24Vdc
Max Current Load 6A×3CH Max. 18A
Max Output Power 216W/432W(12V/24V)
DMX512 Socket RJ45
Dimensions L175×W42×H33mm
Package Size L183×W48×H41mm
Working Temperature -30℃~65℃
Weight(G.W.) 310g
Warranty 5 Years





Attention:
1. The product shall be installed and serviced by the qualified person.
2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
4. Please check if the output voltage of the LED power supplies used comply with the working voltage of the product.
5. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
6. Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
7. If a fault occurs, please return the product to your supplier. Do not attempt to fix this product by yourself.





Warranty Agreement:

6.1 We provide lifelong technical assistance with this product:
(1) A 5-year warranty is given from the date of purchase. The warranty is for free repair or replacement if cover manufacturing faults only.

(2) For faults beyond the 5-year warranty, we reserve the right to charge for time and parts.



6.2 Warranty exclusions below:

(1) Any man-made damages caused from improper operation, or connecting to excess voltage and overloading.

(2) The product appears to have excessive physical damage.

(3) Damage due to natural disasters and force majeure.

(4) Warranty label, fragile label and unique barcode label have been damaged.

(5) The product has been replaced by a brand new product.



6.3 Repair or replacement as provided under this warranty is the exclusive remedy to the customer. We shall not be liable for any incidental or consequential damages for breach of any stipulation in this warranty.



6.4 Any amendment or adjustment to this warranty must be approved in writing by our company only.



★ This manual only applies to this model. W reserve the right to make changes without prior notice.







Dimensional Drawing:


12V - 24VDC 6A * 3 Channels  DMX Decoder LED Controller with RJ45 DMX Socket 0









Typical Wiring Diagram(For more types wiring diagram or more complex wiring, please inquire us separately):

12V - 24VDC 6A * 3 Channels  DMX Decoder LED Controller with RJ45 DMX Socket 1

12V - 24VDC 6A * 3 Channels  DMX Decoder LED Controller with RJ45 DMX Socket 2
