Product Details:
|
| Product Name: | Symmetrical 12*2W LED Pool Lights | Light Source: | 12pcs 2W Osram LED Or 3W 3-in-1 RGB Full Color LED |
|---|---|---|---|
| Input Voltage: | 24VDC | Power: | 28.8W(Single Color), 33.6W(RGB) |
| LED Brand: | Osram, Cree, Citizen, Epistar And Etc | Typ. Luminous Flux (lm): | Cool White=2067 Warm White=1610, RGB=726 |
| Material: | Completely Stainless Steel SUS 316L# Housing & Accessory | IP Rating And IK Class: | IP68 Waterproof, IK08 |
| High Light: | led underwater pond lights,recessed underwater light |
||

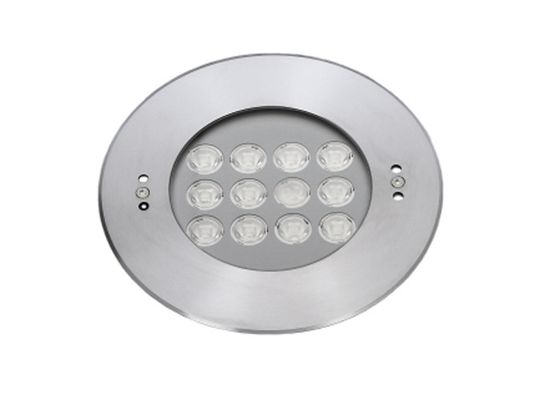

B4ZB1257(Single Color) ,B4ZB1218(RGB) 24VDC 12 * 2W LED Wall Recessed Underwater Pool Lights, Dia 205mm SUS316 Stainless Steel Front Cover LED Swimming Pool Lamp
Important Notes:
Material specifications:
| Housing | Molding Stainless Steel 316# Housing |
| Front Cover | Stainless Steel 316# |
| Waterproof seal | EPDM gasket |
| Glass | Tempered glass. T=10mm |
| Lens | All-in-one optical lens, efficiency≥85% |
| Cable gland | IP-68 PG-11 copper and nickel coated |
| Seal | Molding shaped silicon seal under the front cover Silicone glue among LED lens and PCB |
| Gasket | Glass and housing are silicone sealed |
| LED | Single color or RGB Color power LED |
| PCB | Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
| Driver | Constant current output Single color LED=2-circuit output RGB 3in1 LED=4-circuit output |
| Application environment | Temperature of water between -20℃~40℃ less than 1 meter depth. |
| Power cable |
H07RN-F 2X1.0mm^2 L=3m (for Single color)
H07RN-F 4X1.0mm^2 L=3m(for RGB)
|
| Mounting Sleeve | With mounting sleeve |
Technical Specification:
| Item No. | Light source | Lens |
Degree
(Θ 1 / 2 )
|
Input
voltage
(V)
|
Typical
operating
current (mA)
|
Typical
Power
(w)
|
Typical
Luminance
(lm)
|
IK rate |
| B4ZB1257 |
12×2W
Single Color
|
B32 | 30 | 24VDC | 1200 | 28.8 |
Cool white=1395
Warm white=1180
|
08 |
| B4ZB1218 |
12×2W
3-in-1 RGB
Full Color
|
B8 | 25 | 24VDC |
R=400
G=500
B=500
|
33.6 | 726 | 08 |
Notes:
Dimensional Drawing(units:mm):
