| MOQ: | 10PCS |
| Standard Packaging: | Inner Box and Outer carton |
| Delivery Period: | 5~14 Working days |
| Payment Method: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Capacity: | 100,000pcs per month |

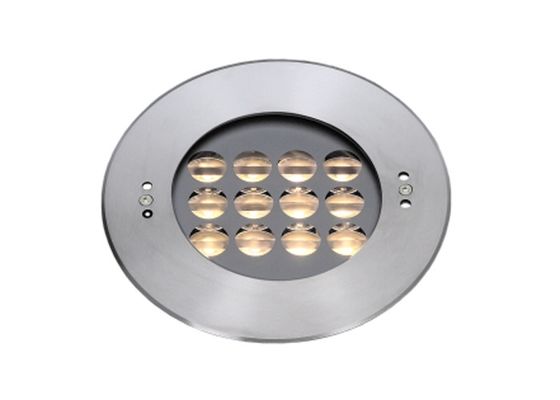

C4ZB1257(Single) and C4ZB1218(RGB) 24VDC 12 * 2W 29W Or RGB 34W LED Underwater Pool Lights with 45° | 35° Asymmetrical Light Output
Important Notes:
Material specifications:
| Housing | Molding Stainless Steel 316# Housing |
| Front Cover | Stainless Steel 316# |
| Waterproof seal | EPDM gasket |
| Glass | Tempered glass. T=10mm |
| Lens | All-in-one optical lens, efficiency≥85% |
| Cable gland | IP-68 PG-11 copper and nickel coated |
| Seal | Molding shaped silicon seal under the front cover Silicone glue among LED lens and PCB |
| Gasket | Glass and housing are silicone sealed |
| LED | Single color or RGB Color power LED |
| PCB | Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk |
| Driver | Constant current output Single color LED=2-circuit output RGB 3in1 LED=4-circuit output |
| Application environment | Temperature of water between -20℃~40℃ less than 1 meter depth. |
| Power cable |
H07RN-F 2X1.0mm^2 L=3m (for Single color)
H07RN-F 4X1.0mm^2 L=3m(for RGB)
|
| Mounting Sleeve | With mounting sleeve |
Technical Specification:
| Item No. | Light source | Lens |
Degree
(Θ 1 / 2 )
|
Input
voltage
(V)
|
Typical
operating
current (mA)
|
Typical
Power
(w)
|
Typical
Luminance
(lm)
|
IK rate |
| C4ZB1257 |
12×2W
Single Color
|
C8 | 45°|35° | 24VDC | 1200 | 28.8 |
Cool white=1395
Warm white=1180
|
08 |
| C4ZB1218 |
12×2W
3-in-1 RGB
Full Color
|
C8 | 45°|35° | 24VDC |
R=400
G=500
B=500
|
33.6 | 726 | 08 |
Notes:
Dimensional Drawing(units:mm):
|
|
