Product Details:
|
| Product Name: | 18*2W IP68 High Power LED Pool Lights | Input Voltage: | 24VDC |
|---|---|---|---|
| Power: | 40W, 50W | Luminance(lm): | CW=2905, WW=2298, RGB=990 |
| Front Cover: | Round Cover Dia. 250mm | Material: | Completely Stainless Steel SUS 316L# Moulding Housing |
| IP Rating And IK Class: | IP68 And IK10 | Optics Lens: | 10°, 20°, 25°, 30°, 35°, 45° And Others |
| Mounting Sleeve: | PVC Mounting Sleeve Included | Warranty: | 2 Years |
| High Light: | led underwater pond lights,recessed underwater light |
||
B4FB1857(Single Color), B4FB1818 ( RGB ) 24VDC 18* 2W 40W or 50W IP68 IK10 High Power LED Underwater Pool Lights Dia Φ250mm Front Cover
Features and Benefits:
1. 18pcs 2W Osram or 3W 3-in-1 RGB Full Color High power LED as its light source;
2. Big size diameter 250mm front cover;
3. High brightness output 2290-2980lm;
4. Anticorrosion Completely stainless steel SUS 316L# moulding Housing to meet hash envirenment;
5.Use the Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture.
| Front Cover and Housing | Molding shaped hard chromeplated stainless steel SUS 316L # |
| Light Window | Step tempered glass.T=10mm |
| Gasket | Silicone Gasket |
| Optical lens | 10°, 20°, 25°, 30°, 35°, 45° Optical lens,efficiency≥85% |
| Glass pressure capacity | Full area=5012kgs |
| PCB | Excellent heat conductivity aluminum. coefficient of heatConductivity≥2.0w/mk |
| Cable gland | IP-68 PG-11 copper with nickel-coated |
| LED Driver | Constant Voltage Input, Constant Current Output |
| Power Cable |
H07RN-F 2X1.0mm² L=3.0m(Single Color); H07RN-F 4X0.75mm² L=3.0m(RGB) |
| Application environment | Temperature of water between -20˚C~40˚C less than 1 meter depth. |
| Mounting sleeve | ABS |
| Dimmable Support | Triac PWM 1-10V Dali |

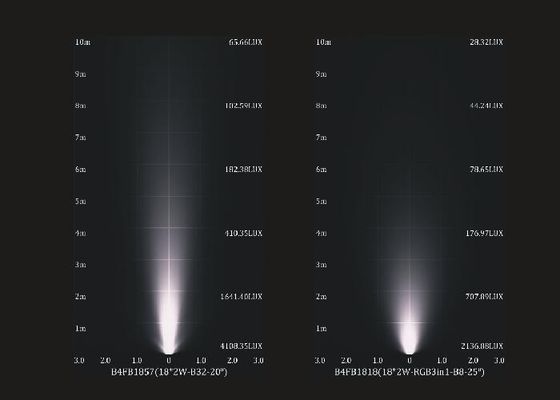

Technical Specification:
| Item No. | Light source | Lens |
Degree
(Θ 1 / 2 )
|
Input
voltage
(V)
|
Typical
operating
current (mA)
|
Typical
Power
(w)
|
Typical
Luminance
(lm)
|
IK rate |
| B4FB1857 |
18×2W
Single Color
|
B32 | 30° | 24VDC | 1900 | 40 |
Cool white=2905
Warm white=2298 |
10 |
| B4FB1818 |
18×2W
3-in-1 RGB
Full Color
|
B8 | 25° | 24VDC |
R=630
G=770 B=770 |
50 | 990 | 10 |
Notes:
Dimensional Drawing(units:mm):
