Product Details:
|
| Item Type: | Recessed Outline Lights | LED: | 1piece 2W Or 3W LED |
|---|---|---|---|
| Color: | Single Color, RGB, Or RGBW | Power (W): | 24V=2.6, 120V=3.3, 240V=3.3, RGB=3.5, RGBW=4W |
| Lumen (LM): | Cool White=75, Warm White=66 | Front Plate: | 316 SUS Stainless Steel |
| Housing: | Die Cast Aluminum | IP Rating: | IP65 |
| High Light: | recessed led stair lights,round step lights |
||

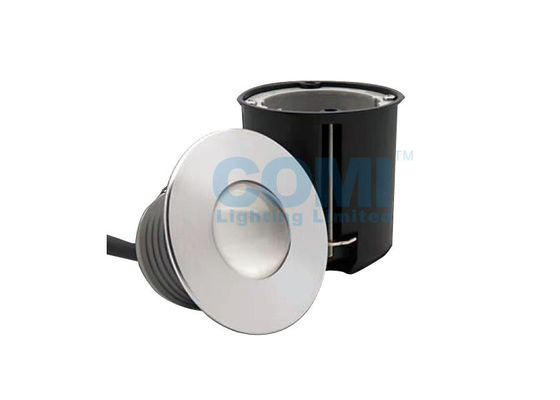

D1UA0102, D1UA0106 (RGB) 24VDC or 110 - 240VAC 1 * 2W or 3W Recessed LED wall / Recessed Outline Lights, LED Step Lights
COMI Lighting WALL LIGHT D1UA-Series is designed for wall or ceiling integration and offers various design possibilities in architectural illumination.The DC24V working voltage version can be dimmable, autom. colour change(RGB or RGBW versions),or DMX 512, DALI, 1-10 V controllable by power supplies drivers or LED controllers(Inquire us separately), Installation with clips, fix on the ceiling and with mounting sleeve in thick wall.
| Housing: | 12'' Die-casting aluminum, T=20-25μm. Adhesion of ISO class 1/ ASTM class 4B high temperature painting |
| Front Ring: | Stainless steel SUS 316# |
| Light Source: | Osram or Cree High power LED |
| Waterproof seal: | Rubber seal |
| Driver: | Low & High Input-Voltage Driver Inside |
| Operating Temperature: | -20-40 degree Celsius |
| Power Cable: | H05RN-F 3X1.0mm^2 L=0.3m (High Voltage) H05RN-F 2X0.75mm^2 L=0.3m (Low Voltage) H05RN-F 3X0.75mm^2 L=0.3m (RGB,low voltage) H05RN-F 4X0.5mm^2 L=0.3m (RGBW,low voltage) |
| Mounting Sleeve: | PVC 035# Plastic Mounting Sleeve |
| IP Rating: | IP65 |
| Certificates: | CE, RoHs |
Techincal Information:
| Item Number |
Light Source
|
Beam
Degree (°)
|
Input Voltage (V) |
Typical
Operating Current (mA) |
Typical
Consumption (W) |
Typical
Luminance (lm) |
IK Rate |
| D1UA0102 | 1×3W | 45° | 24V DC 120/240 |
24V =110
120V=48
240V=28 |
24V =2.6
120V=3.1
240V=3.0
|
Cool white=31
Warm white=27
|
09 |
| D1UA0106 | 1×3W 3-in-1 RGB Full Color |
45° | 24V DC |
R=38
G=53
B=54
|
3.5
|
46
|
09 |
| D1UA0107 | 1×4W 4-in-1 RGBW Full Color |
45° | 24V DC | 180 | 4.3 | RGBW=72 | 09 |
Note:
1. Single color: Warm White(3000~3500K), Neutral White(4000~4500K), Cool White (6000~6500K), Red, Green, Blue;
2. Specification and availability are subjected to change without notice.
Outer Size (mm):
Installation:
Installation with clips, fix on the ceiling and with mounting sleeve in thick wall.
